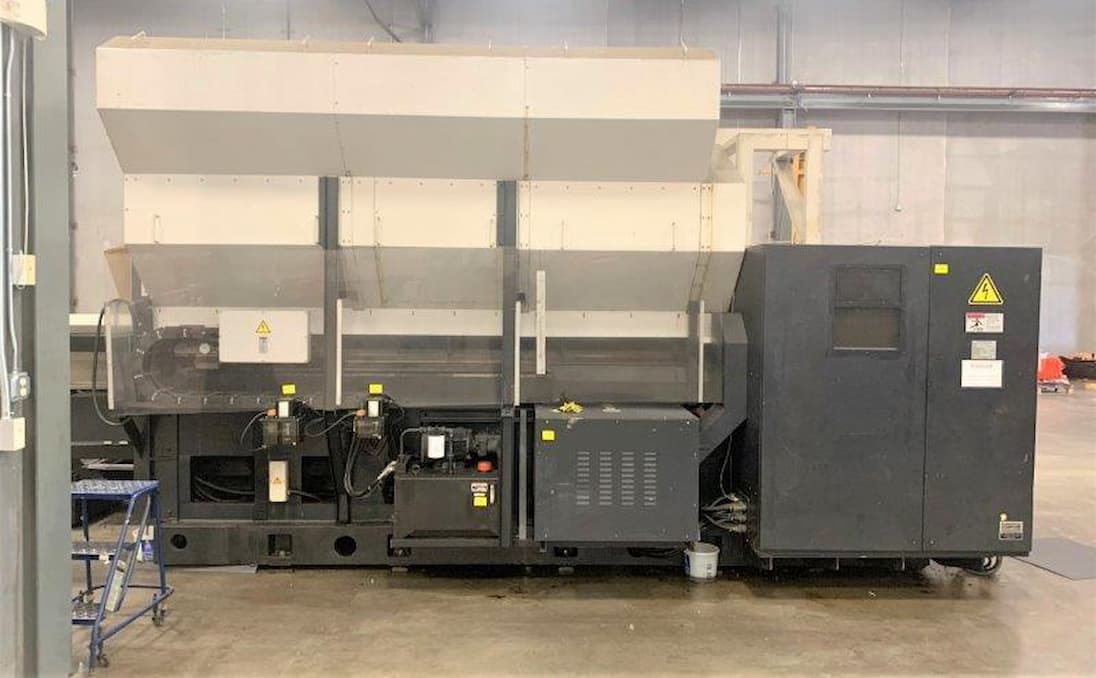

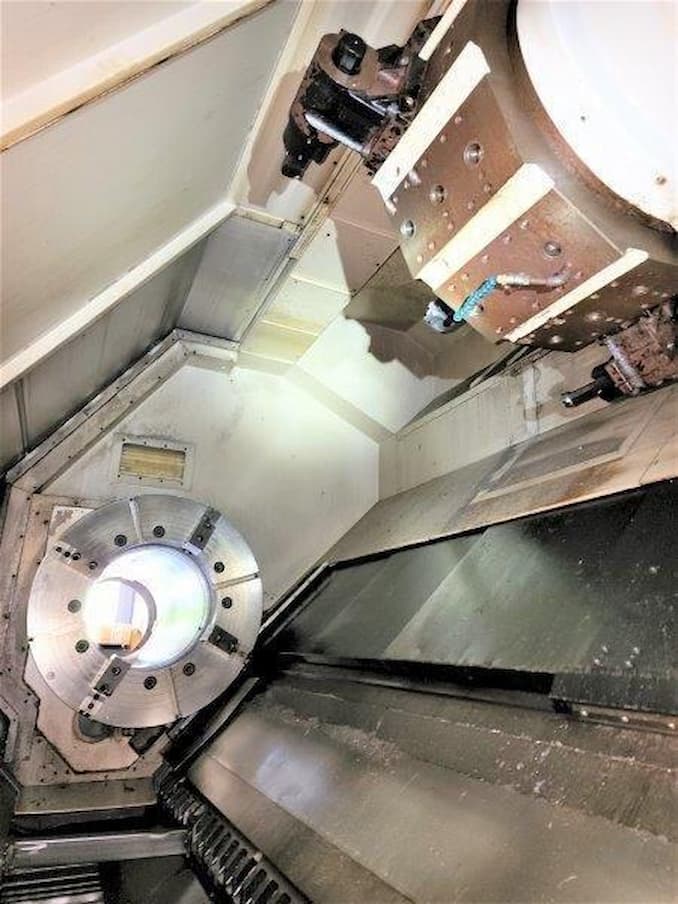

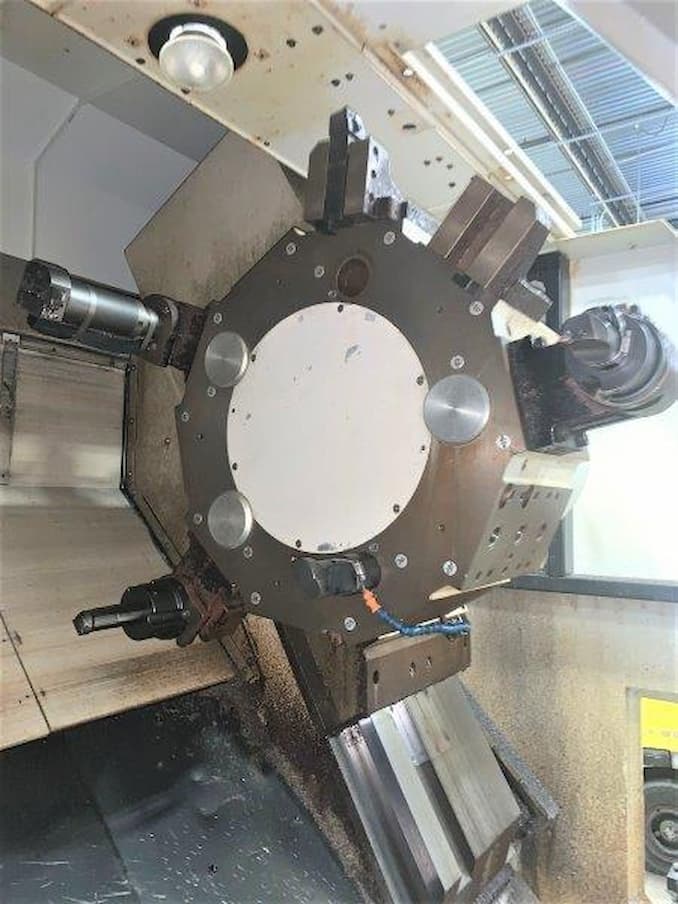

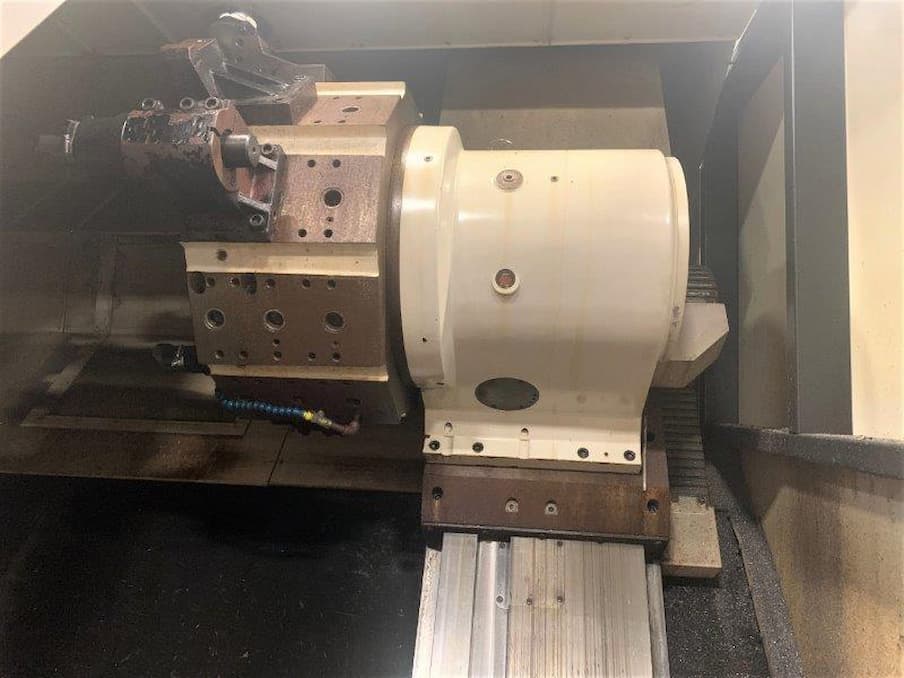

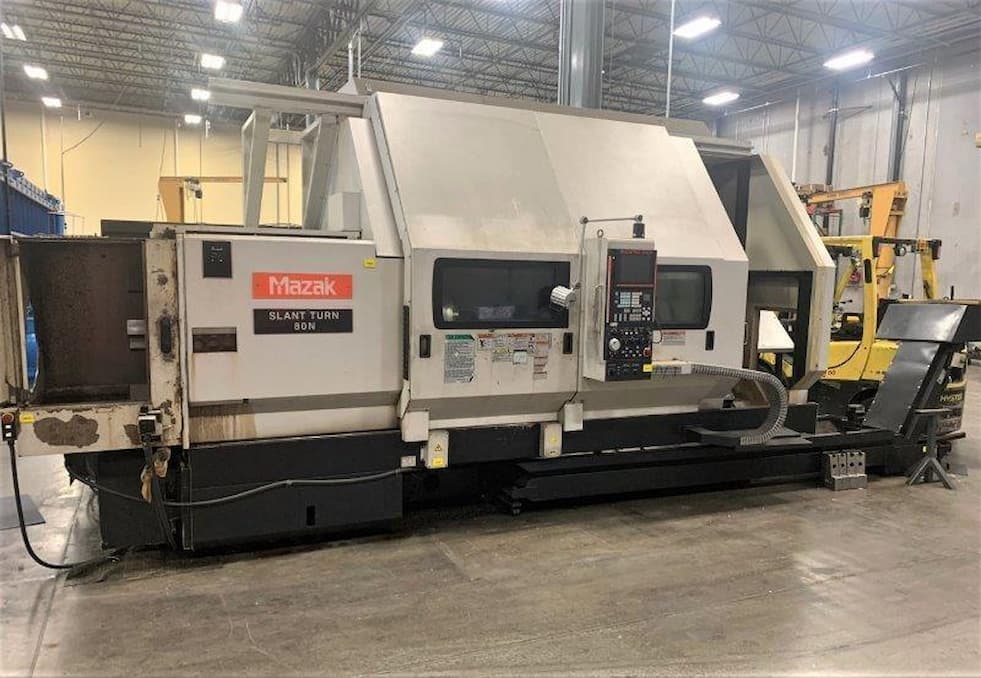

Mazak Slant Turn 80NR Tour CNC Usagé 2007 – 3201066

Tour CNC

ANNÉE

2007

COURSE

X-Axis Travel: 10.5″
Z-Axis Travel: 77.92″

DIMENSIONS

COMMENTAIRES

SPECIFICATIONS:

SWING 42″

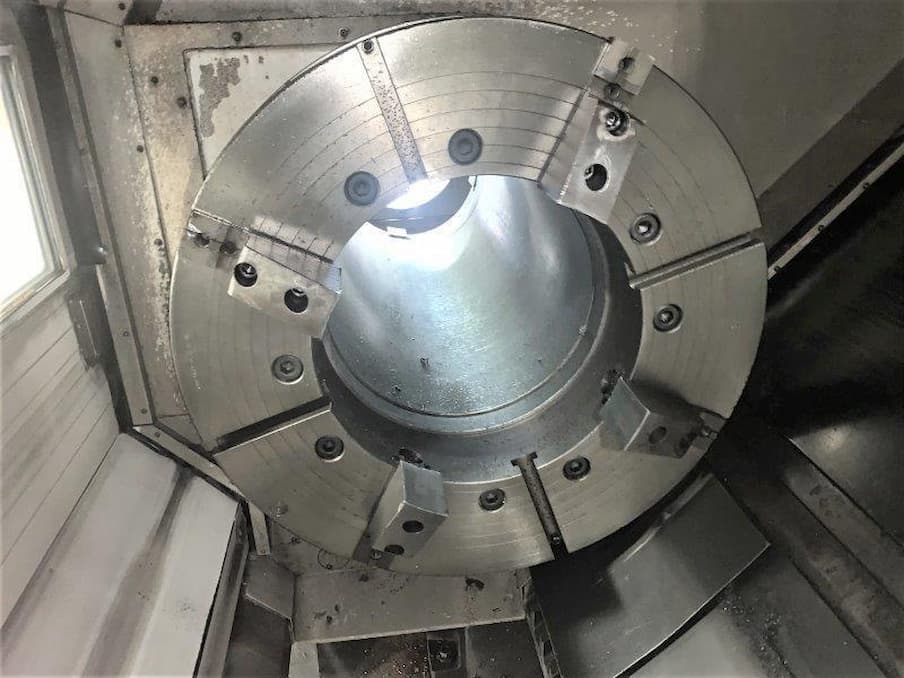

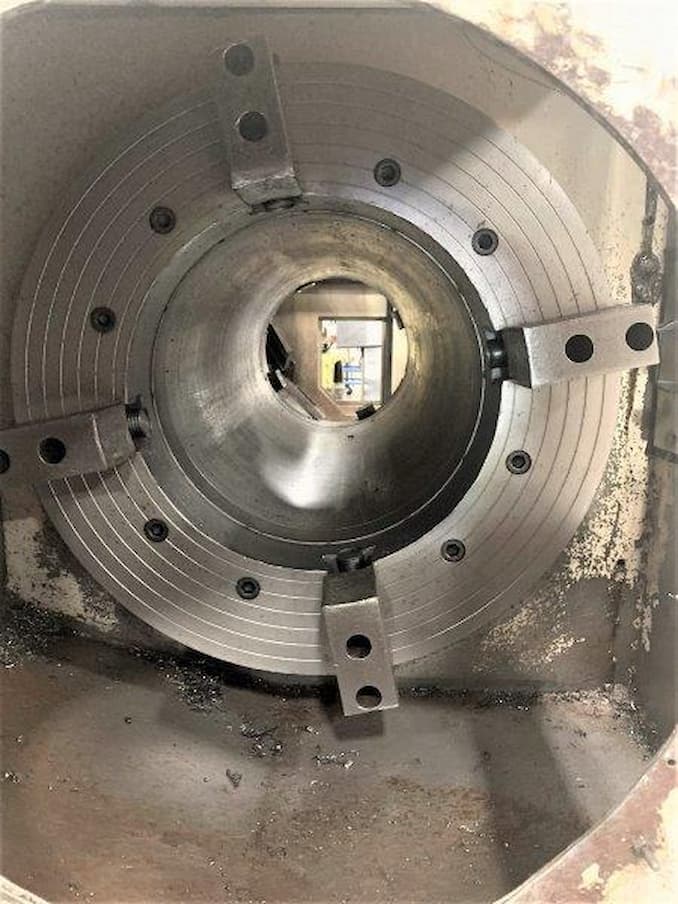

CHUCK SIZE 40″
BAR CAPACITY 22″
MAX RPM 300 RPM
TURNING DIA 33″
TAILSTOCK No
LIVE TOOLING No
SUB SPINDLE No
CONTROL CNC (Mazatrol Fusion 640T CNC Control)
DIMENSIONS 245″ x 116″ x 122″
WEIGHT 42,000 lbs
Specifications (subject to buyer verification):
Swing Over Carriage: 42″
X-Axis Travel: 10.5″
Z-Axis Travel: 77.92″
Maximum Cutting Length: 77.92″
Maximum Cutting Capacity KN/LBF: 2,640
Main Spindle Motor: 80 HP
Bed Type Slideway Width: 45 Slant Type 41.34″
X-Axis Slideway Width: 21.65” Rectangle 60 Deg Inclination
Z-Axis Slideway Width: 20.67″ Rectangle
Spindle Bore: 20.75″
Spindle Center Height: 21.76″
Number of Spindle Gears: 2
2-Step Gear Shift Hyd. Speed: 300 RPM
Machine Dimensions: 245″ x 116″ x 122″
Machine Weight: 42,000 lbs

EQUIPPED WITH:

Equipped With (subject to buyer verification):
Mazatrol Fusion 640T CNC Control
Re-threading
Rear Mount Chuck Adapter
High Power Coolant 1.1KW/93 PSI/7.9 GPM
Chip Conveyor
Coolant Tank
