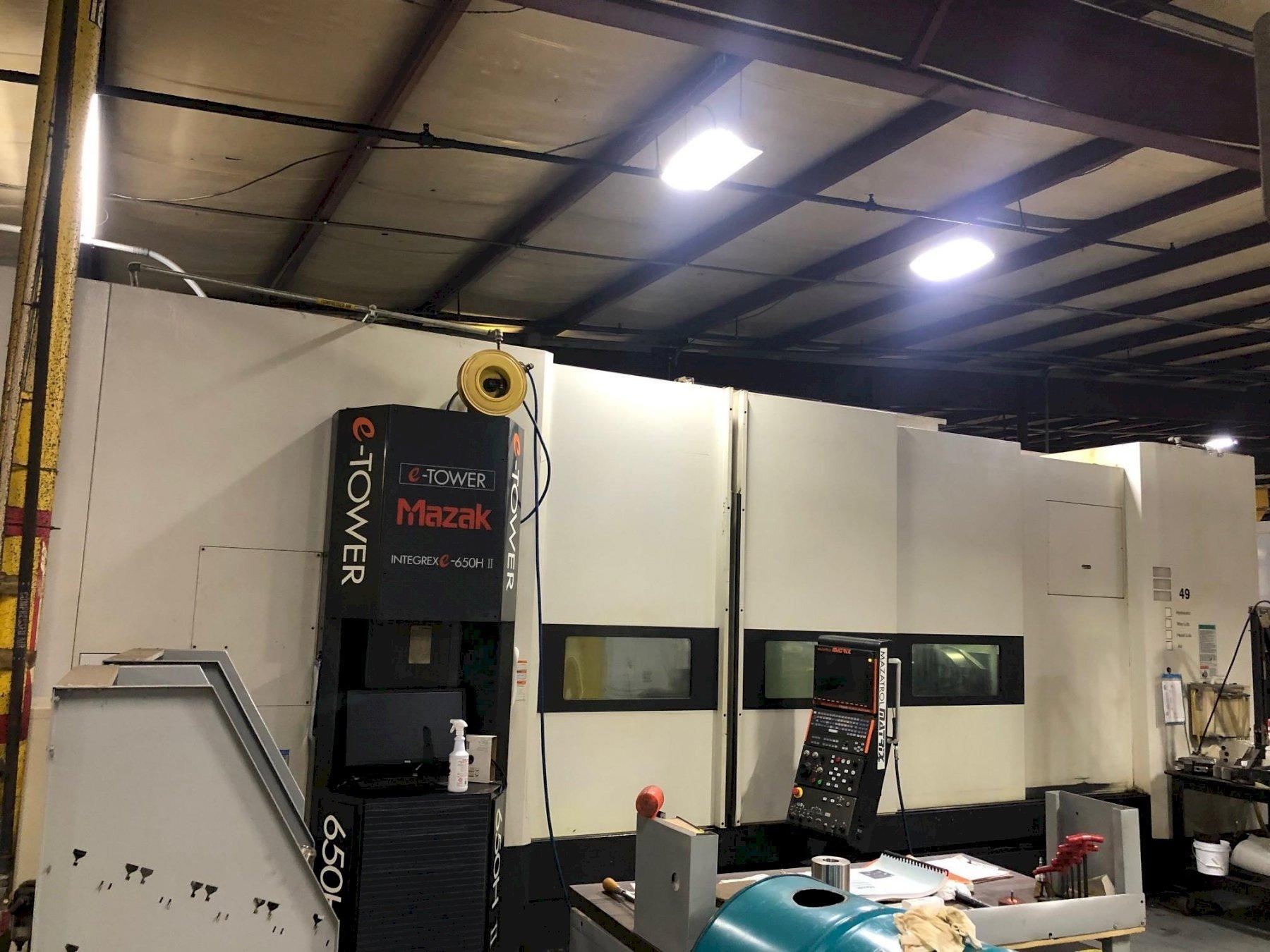

Mazak Integrex e-650HS II Tour CNC Usagé 2007 – 3201034

Tour CNC

ANNÉE

2007

DIMENSIONS

COMMENTAIRES

SPECIFICATIONS
CNC Control yes
Type of CNC Control Mazatrol MATRIX
Number of Axes 7
Number of Spindles 2 – Horizontally Opposed
Chuck Size(s) 24″ x 2
Spindle Nose A2-11
Max. Swing 32″
Bar Capacity 6.6″
Max. Turning Diameter and Length 120″
C-Axis Indexing .0001″
Z-Axis Travel 120″
Maximum Spindle Speed 35-1600 RPM
X-Axis Travel 40.35″
Y Axis (Yes / No) yes
Y Axis Travel +25.6″/-12.8″
B-Axis Indexing .0001″
MIll Head Spindle Speed 10,000 RPM
Mill Head Spindle Taper CAPTO Tooling
Mill Head HP 50 HP
B Axis Travel (+/- Degrees) +210 to -30 Degrees
Automatic Tool Changer 120
Spindle Motor(s) 60 HP x 2
Dimensions 368″ x 155″ x 155″
Machine Weight 77,900 Lbs.

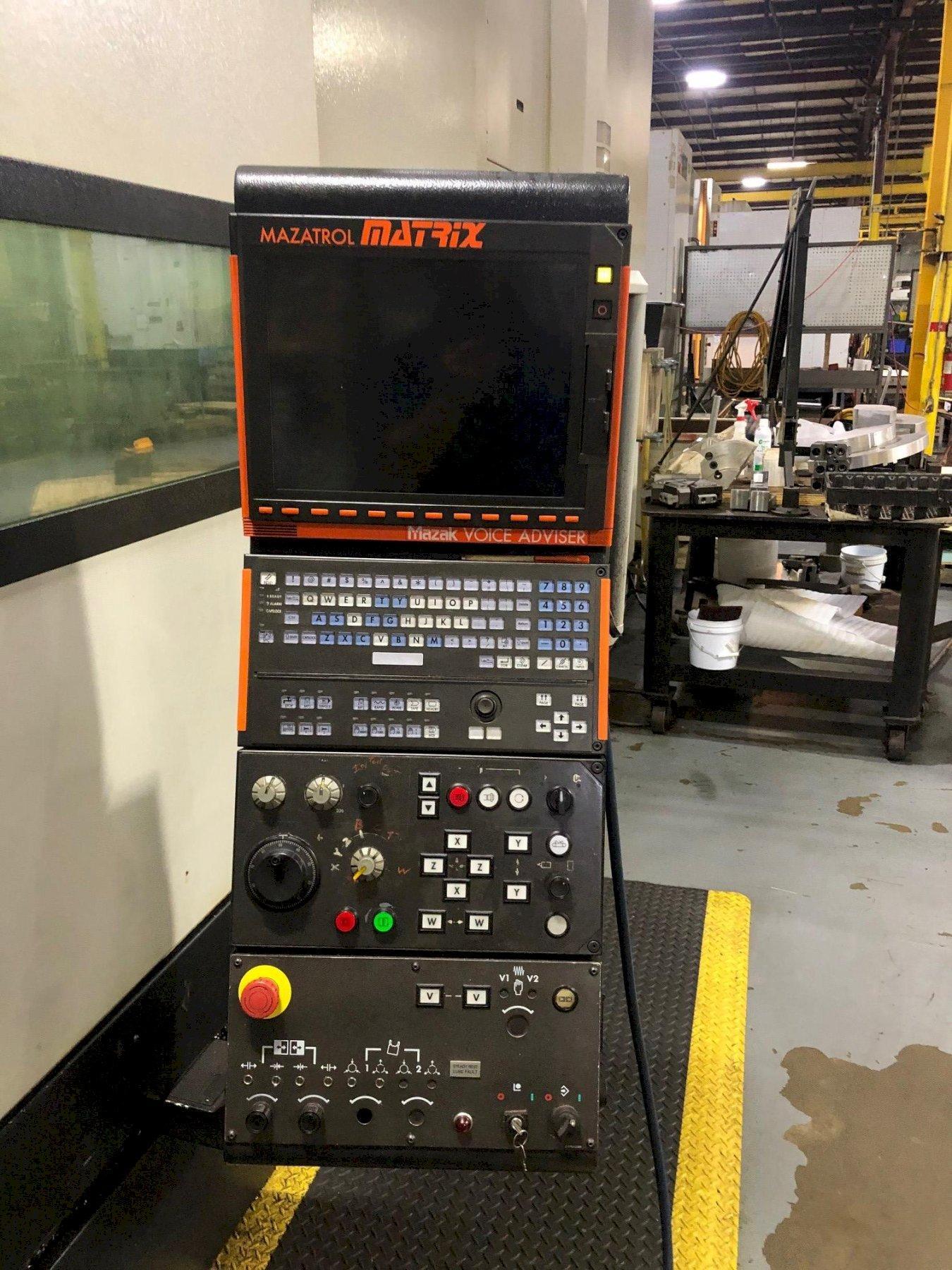

Control: Mazatrol Matrix

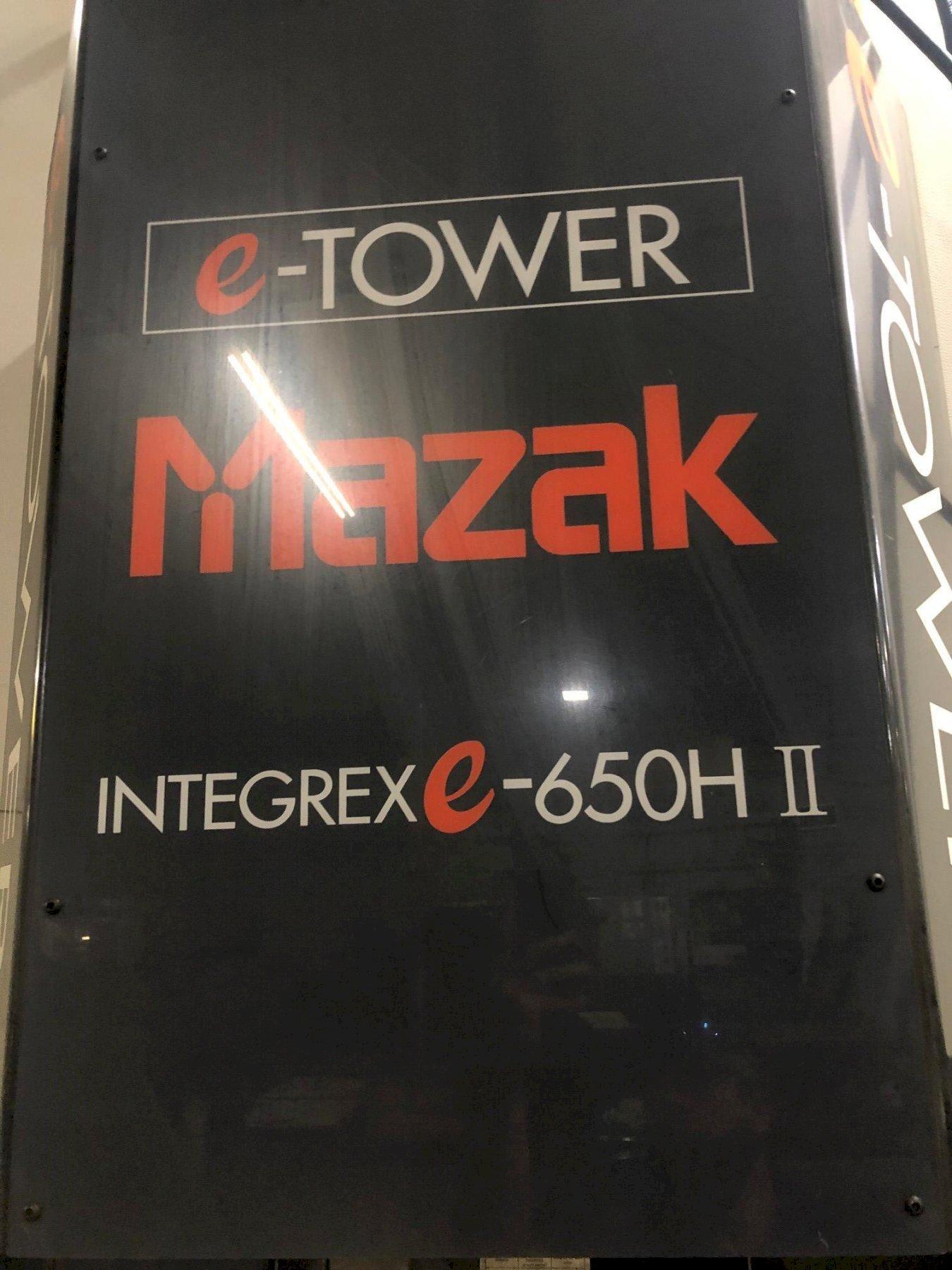

E-Tower
Mazak Super Flow HP Coolant – 1000 PSI
2 – 24″ 3-Jaw Chucks
Auto Doors
Chip Conveyor
Dual Foot Trips
*** NO STEADY REST ***
Hours:
Power On: 41385
Auto Cut: 9465
Total Cut: 8265
