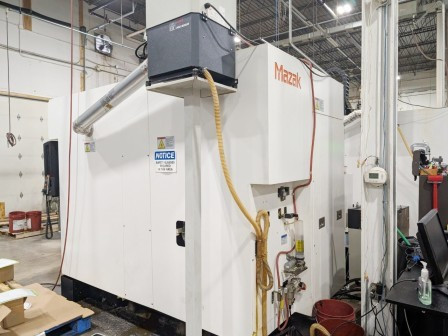

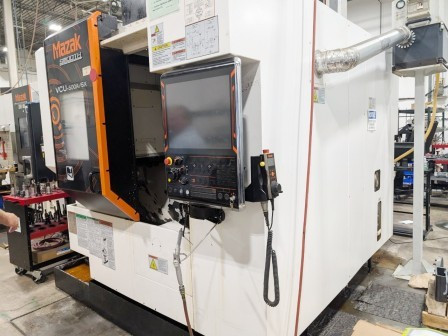

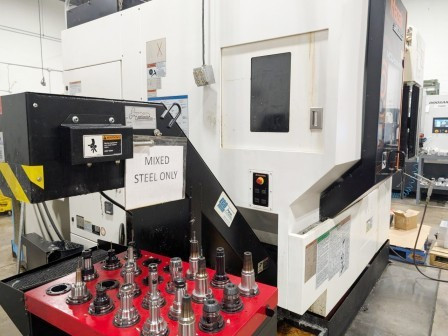

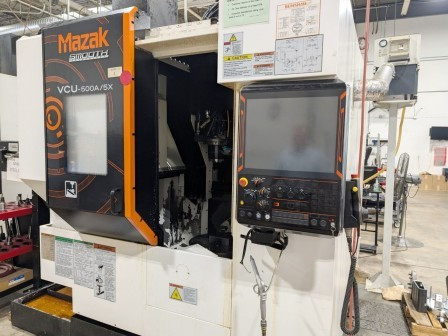

Mazak VCU 500/5X Centre d’Usinage Usagé 2016 – 32010518

---

Fraiseuse CNC / Centre d’usinage

Année

2017

Course

X Axis Travel 19.88"
Y Axis Travel 19.88"
Z Axis Travel 20.07"
B Axis Travel +95 to -45 degrees
C Axis Positioning +/- 360 degrees

Table

Dimensions

Broche

Changeur d'outils

Number of Tool Stations 30

Commentaires

Spécifications:
Table Size 19.68" x 19.68"
X Axis Travel 19.88"
Y Axis Travel 19.88"
Z Axis Travel 20.07"
B Axis Travel +95 to -45 degrees
C Axis Positioning +/- 360 degrees
Main Spindle RPM 12,000 RPM
Rapid Traverse Rate X 945 IPM
Rapid Traverse Rate Y 945 IPM
Rapid Traverse Rate Z 945 IPM
Number of Tool Stations 30
Spindle Taper CAT 40
Main Spindle HP 15/25 HP

Options & Équipements:

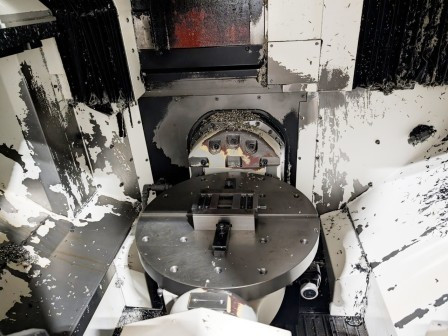

5-Axis Trunnion Rotary Table
5-Axis Machining Package
Manual Pulse Generator
Work Setting Error Compensation
EIA Dynamic Compensation
Workpiece Air Blast
213 PSI Hi-Pressure Coolant Thru Spindle
RMP600 Probe
Jorgensen ECO-Filter Hinge Chip Conveyor

---
