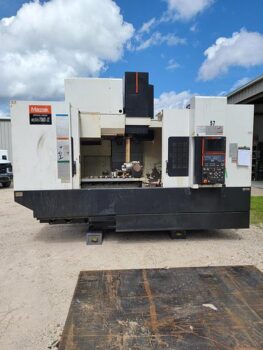

Mazak VCN 700D50II 4th Axis Centre d’Usinage Usagé 2011 – 23010241

---

Fraiseuse CNC / Centre d’usinage

Année

2011

Course

X-Axis Travel 60.24"
Y-Axis Travel 27.55"
Z-Axis Travel 25.59"

Table

Dimensions

Broche

Changeur d'outils

24 Outils

Commentaires

Spécifications :
Table Size 68.5" x 27.55"
X-Axis Travel 60.24"
Y-Axis Travel 27.55"
Z-Axis Travel 25.59"
Table Load Capacity 2,640 lbs
Distance from Spindle Nose-to-Table Top 7.87″ Min ~ 33.46″ Max
Distance from Spindle C/L to Column 28.42″
Spindle Speed 26-6000 RPM (Hi-Torque Spindle)
Servo Magazine Capacity 24 Tools
Spindle Horsepower (30 Min/Cont) AC 30 HP

Options et Équipements :
Mazatrol Matrix Nexus Control -
Lan Port in Electrical Cabinet -
MT Connect Pr
Work Light -
North American Power Transformer -
Relocation Device-
Windows XP Operating Sys for Mazak Machine Control -
MX Roller Guide Sys
Dual Probing Kit OMP60/OTS AA w/EIA Inspection Plus -
MT Connect Adapter Software -

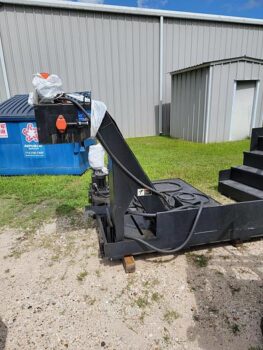

Left Side Hinge Type Chip Conveyor for Steel -
B(Synchronized Tapping) -

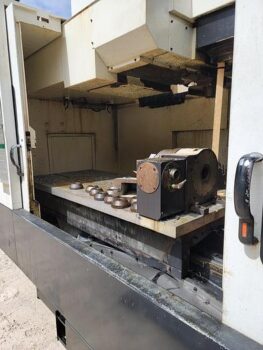

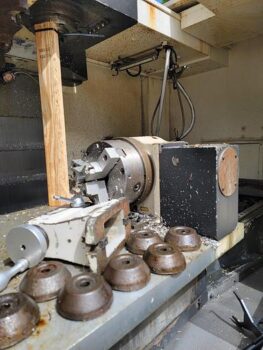

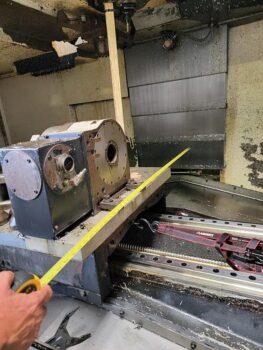

Mazak MR-250RAM01 NC Rotary Table Package - 9.13" 3-Jaw Manual Chuck SC-9T -
Kitagawa TS-250 Tailstock for Mazak MR-250

---
