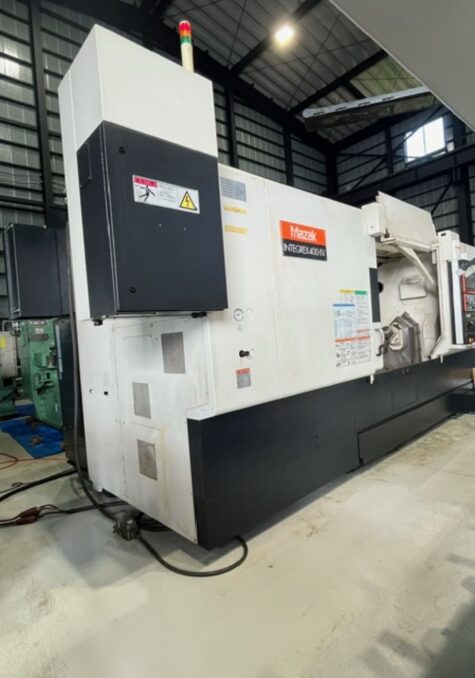

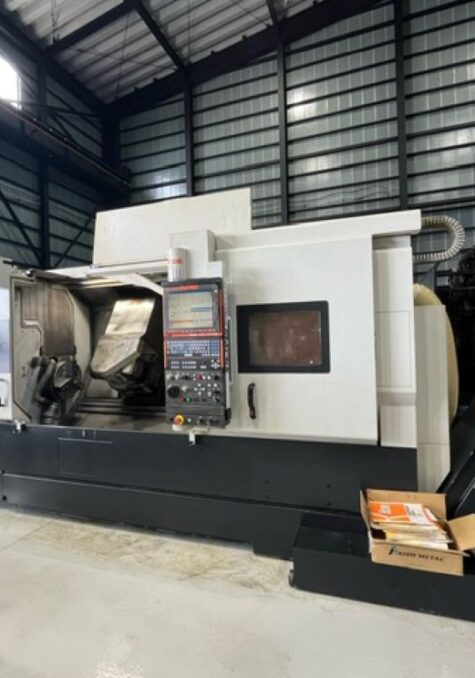

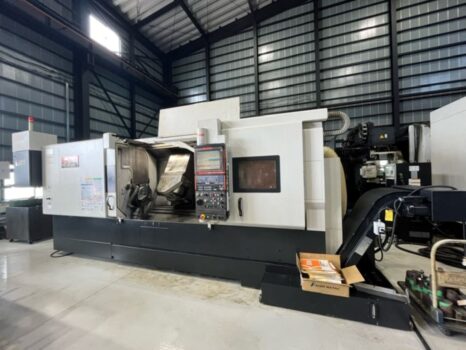

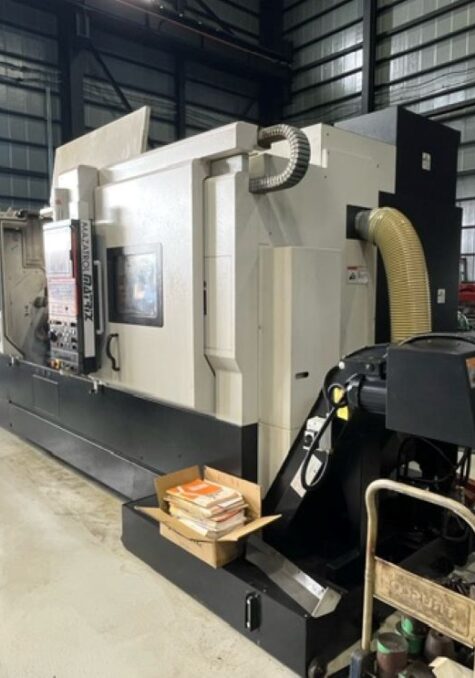

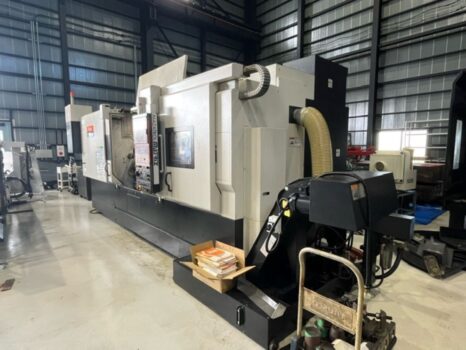

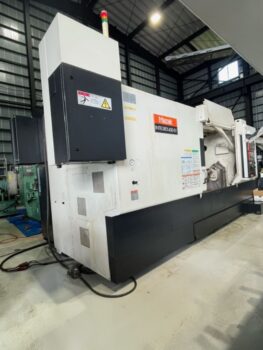

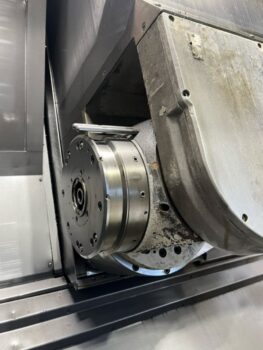

Mazak Integrex 400IV Tour CNC Usagé 2007 – 32010236

---

Tour CNC

Année

2007

Course

AXIS TRAVELS:
B-Axis.................................. 225 degrees
(0.0001 degree increments)
Y-Axis.................................. +/- 4.53"
X-Axis.................................. 24.8"
Z-Axis 60" Universal.................... 62.41"

AXIS RAPID RATES:
Y-Axis.................................. 1024 IPM
X-Axis.................................. 1496 IPM
Z-Axis.................................. 1496 IPM
C-Axis.................................. 555 RPM
Servo Driven Tailstock.................. 240 IPM

Dimensions

Broche

Tourelle

40 ATC

Commentaires

Spécifications :
Maximum Swing........................... 30"
NOTE: Tool eye body may limit max. swing.
Maximum Swing using Y-axis.............. 26"-30"
Maximum Swing over Cross Slide.......... 30"
Maximum Cutting Diameter: Chucking...... 30"
Maximum Cutting Length 60" Universal.... 59.2"

MAIN SPINDLE SPECIFICATIONS:
Spindle Nose............................ A2-8
Spindle Bore............................ 4.4"
Spindle Speed/Ranges.................... 3,300 RPM
Spindle Index (Programmable)............ 0.0001 Deg.
Spindle Horsepower (Cont/30min)......... 40/40 HP (AC)
Spindle Torque.......................... 1033 ft-lbs

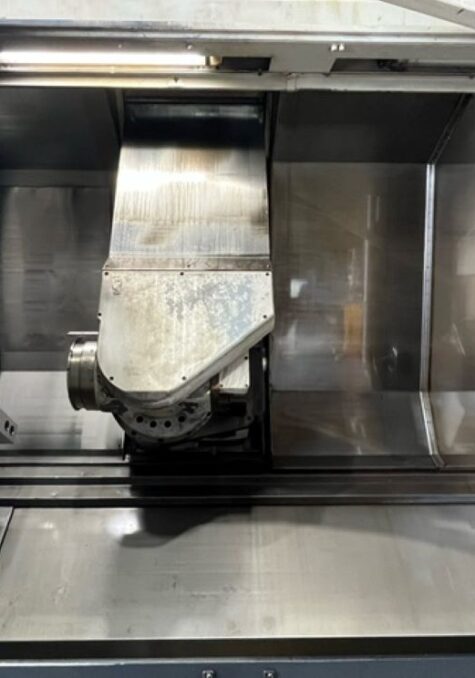

TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.......................... 1 Position w/ ATC
Tool Shank Height....................... 1"
Tool Size (Boring Bar Max. Dia.)........ 1.5"
Magazine Capacity……………………………………………………… 40 ATC
Tool Selection Method................... Random
Tool to Tool ATC Time................... 1.3 Sec.
Max. Tool Dia. w/All Pockets Full....... 3.54"
Max. Tool Dia. w/Adjacent Pockets Empty. 4.92"
Max. Tool Length (From Gage-Line)....... 15.75"
Maximum Tool Weight..................... 22 lbs.

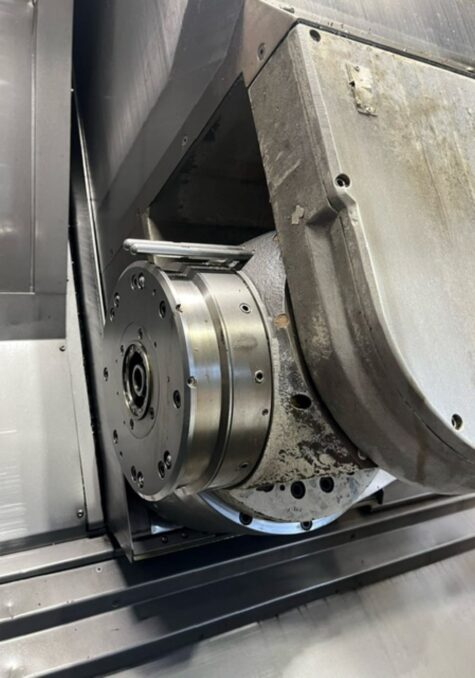

ATC Tool Shank.......................... KM
Rotary Tool Spindle Speed............... 12,000 RPM
Rotary Tool Spindle Horsepower (20%ED).. 25 HP (AC)
Rotary Tool Torque (20%ED).............. 88.5 ft-lbs.
Maximum Face Mill....................... 4"
Maximum End Mill........................ 1.25"
Maximum Drill........................... 1.25"
Maximum Tap............................. 1-8 UNC

AXIS TRAVELS:
B-Axis.................................. 225 degrees
(0.0001 degree increments)
Y-Axis.................................. +/- 4.53"
X-Axis.................................. 24.8"
Z-Axis 60" Universal.................... 62.41"

AXIS RAPID RATES:
Y-Axis.................................. 1024 IPM
X-Axis.................................. 1496 IPM
Z-Axis.................................. 1496 IPM
C-Axis.................................. 555 RPM
Servo Driven Tailstock.................. 240 IPM

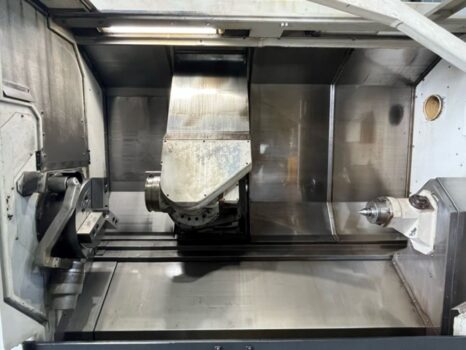

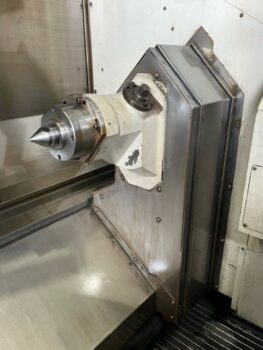

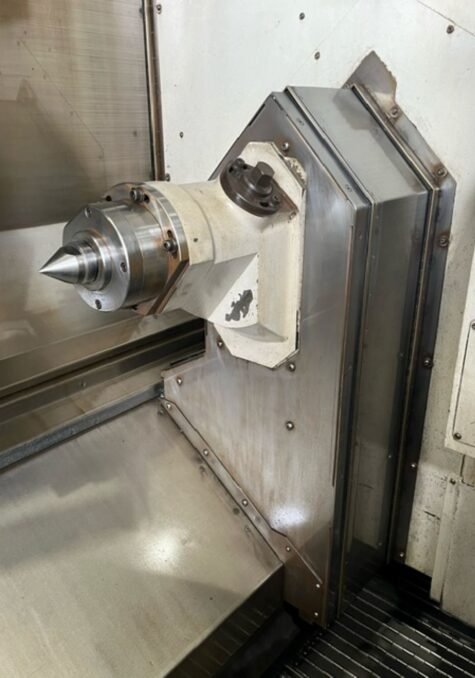

TAILSTOCK (FOR UNIVERSAL):
Spindle Center.......................... MT#5
Body Travel 60" Universal............... 60.83"
Thrust.................................. 2,246 lbs.

GENERAL SPECIFICATIONS:
Floor Space for 60" Universal (WxL)..... 193.4" x 92.24"
Machine Height.......................... 114.6"
Machine Weight for 60" Universal........ 28,220 lbs.

Options et Équipements :

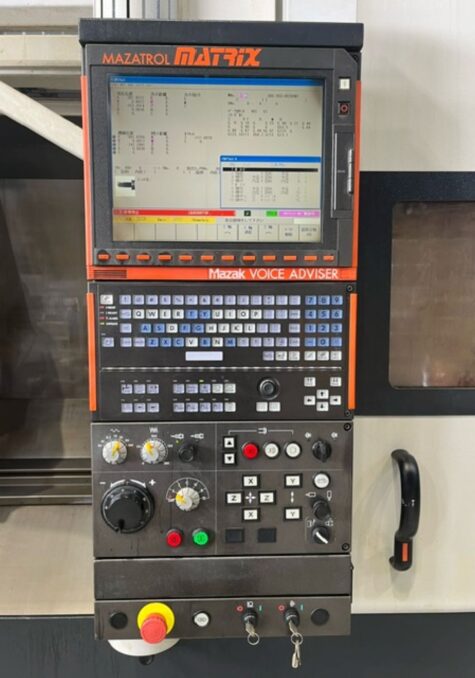

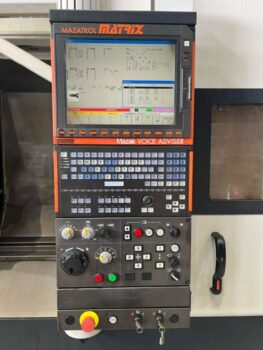

Matrix control
ATC-40, KM
B,C axis 0.0001 deg index
Contering cutting capable
Y axis
Centers 1500mm

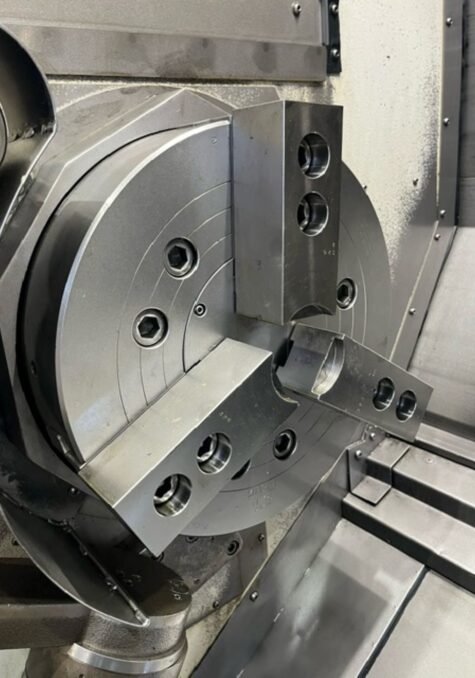

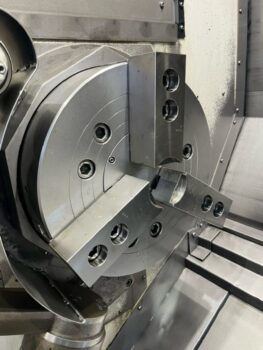

**15” chuck, (Non Thru Hole Chuck Package)
Chip conveyor
Tailstock

---

Demande de prix
