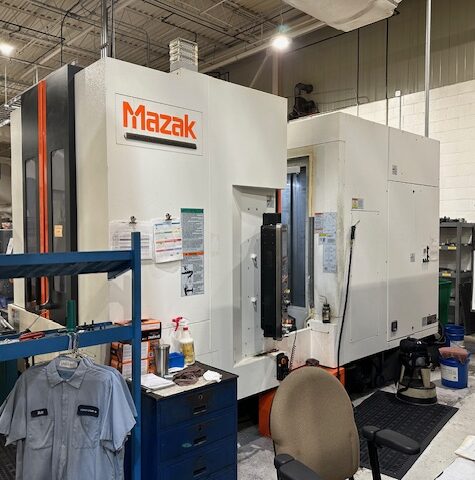

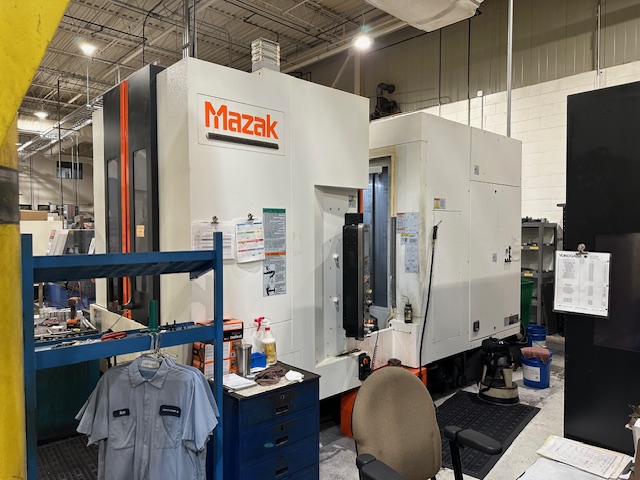

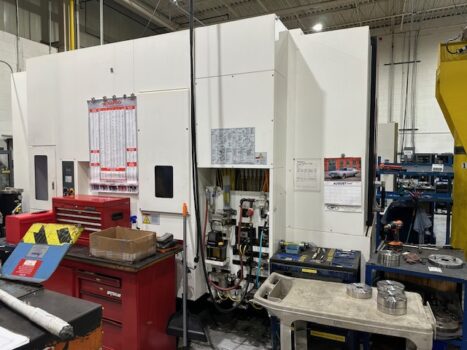

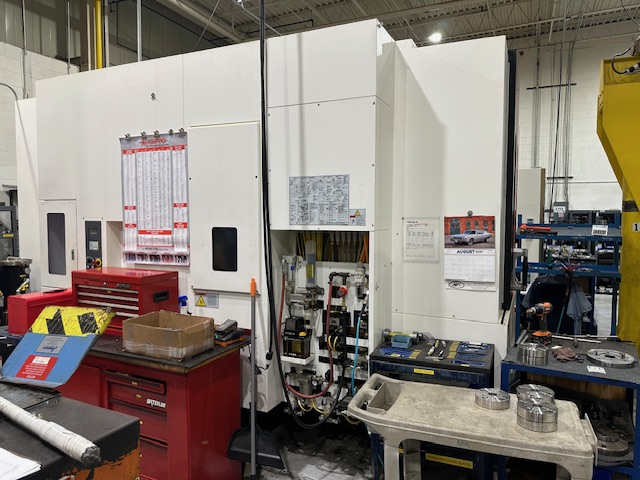

Mazak HCN 4000-II Centre d’Usinage Horizontal Usagé 2012 – 32010519

---

Fraiseuse CNC / Centre d’usinage

Année

2012

Course

X-Travel: 22.05 inches
Y-Travel: 25.2 inches
Z-Travel: 25.2 inches

Table

Dimensions

Broche

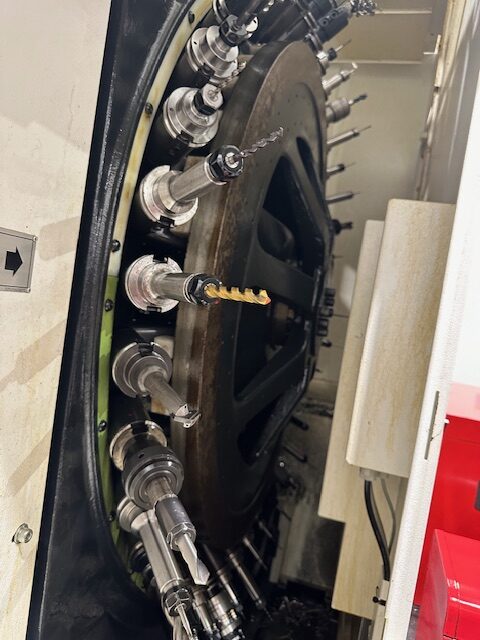

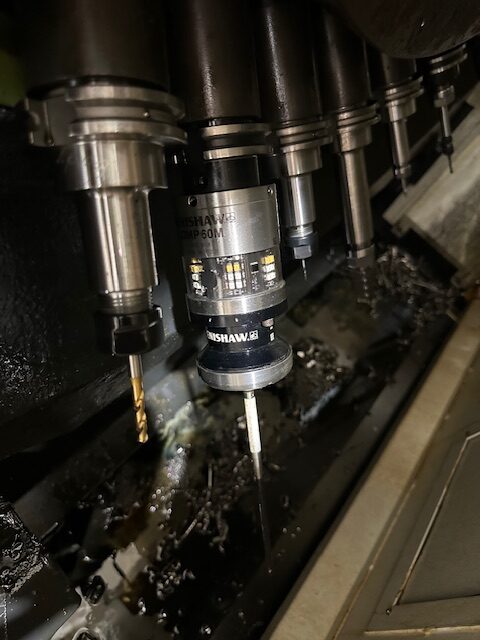

Changeur d'outils

Tool Magazine Capacity: 60
Max Tool Diameter: 3.74 inches
Max Tool Diameter(adjacent): 5.9 inches
Tool Change Time: 1.2 seconds
Max Tool Length: 16.3 inches
Max Tool Weight: 26 lbs

Commentaires

Spécifications:
Number of Pallets: 2
Spindle Motor: 40 HP
Table/Pallet Size in mm: 400 mm
Tool Magazine Capacity: 60
Table / Pallet Indexing: 1 Degree
Max Tool Diameter: 3.74 inches
X-Travel: 22.05 inches
Max Tool Diameter(adjacent): 5.9 inches
Y-Travel: 25.2 inches
Tool Change Time: 1.2 seconds
Z-Travel: 25.2 inches
Max Tool Length: 16.3 inches
Rapid Traverse: 2362/2362/2362 IPM
Max Tool Weight: 26 lbs
Cutting Feed Rate: 2362 IPM
Max Table/Pallet Load: 880 lbs
Spindle Speed: 18 000 rpm
Spindle Taper Type: 40 Taper
PALLET SURFACE TO SPINDLE CENTER: 3.15" ~ 27.95"
PALLET CENTER TO SPINDLE GAGE LINE: 2.76" ~ 27.96"
WORKPIECE DIMENSIONS: 24.8" x 35.43"

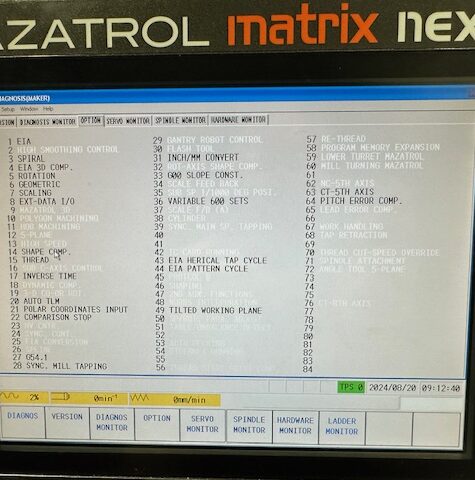

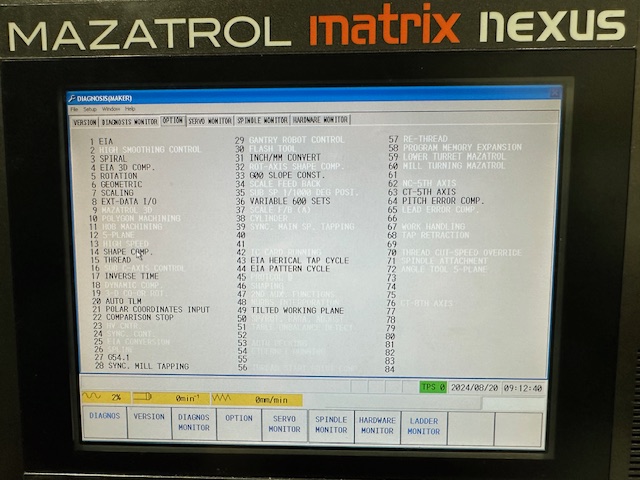

Options & Équipements:
Spiral
EIA 3D Compensation
Rotation
Geometric
Scaling
Ext-Data I/O
Shape Comp.
Thread
Auto TLM
Polar Coordinates Input
Comparison Stop
G54.1
Sync. Mill Tapping
G00 Slope Const.
Variable 600 Sets
EIA Herical Tap Cycle
EIA Pattern Cycle
Tilted Working Plane
CT-5th Axis
Pitch Error Comp.

---
