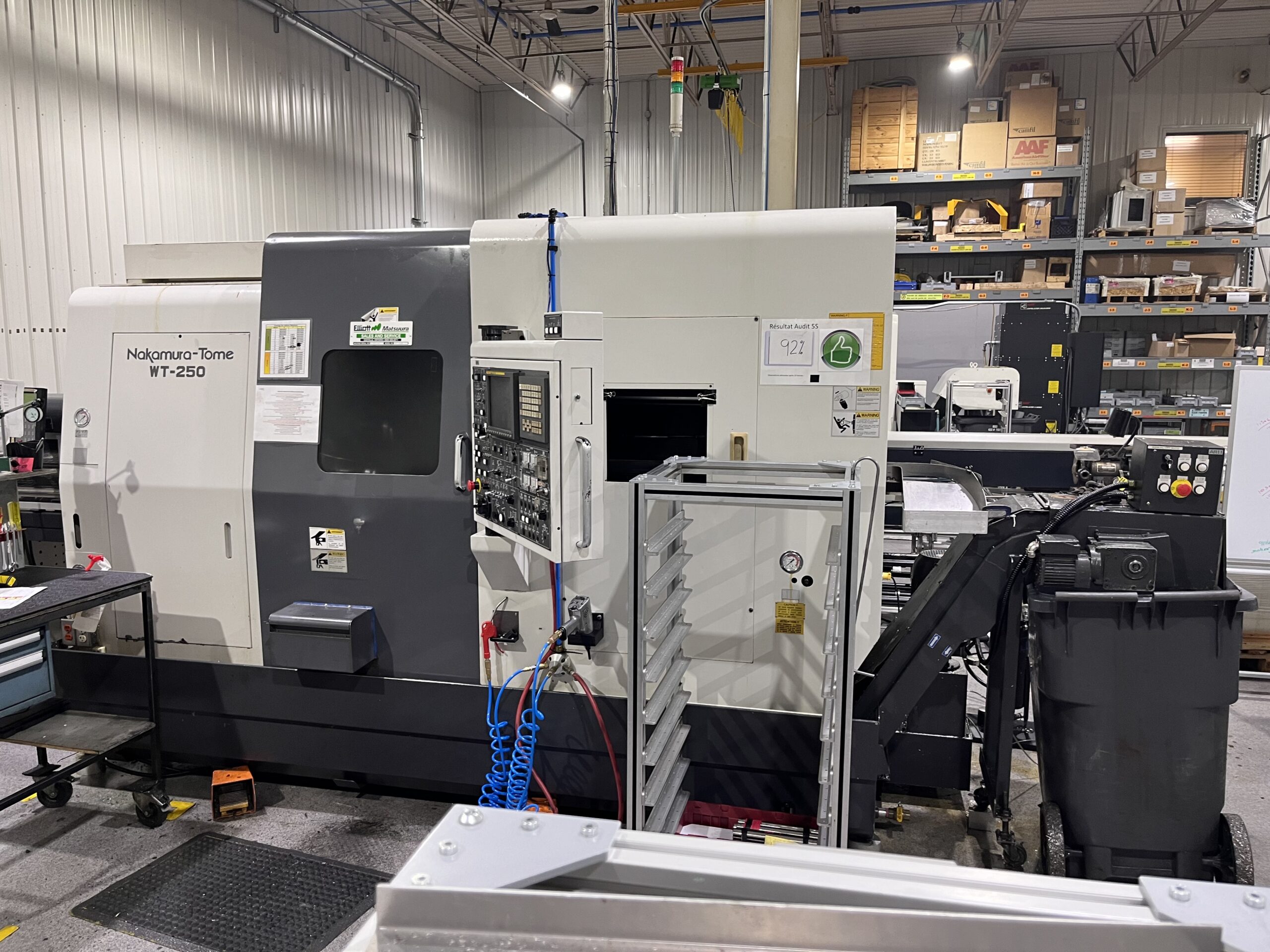

NAKAMURA-TOME WT250YMMS Lathe Used 2005 – 3201185
CNC Lathe
YEAR
2000
STROKE
• Maximum swing (over bed): 250mm
• Max. machining diameter : 250mm
• Max. machining length : 555mm
• Travel Axis ”X1/X2” : 195mm
• Travel Axis ‘’Y’’: ±41mm
• Travel Axis ”Z1/Z2” : 600mm
• Rapid traverse speed Axis ”X”-”Z” : X1/X2 :12m/min Z1/Z2 : 24m/min Y : 6m/min
B : 24m/min
DIMENSIONS
Height
2225mm
Width
3475mm
Depth
1933mm
Weight
17658.4 Lbs
BROCHE
Speed (RPM)
4500

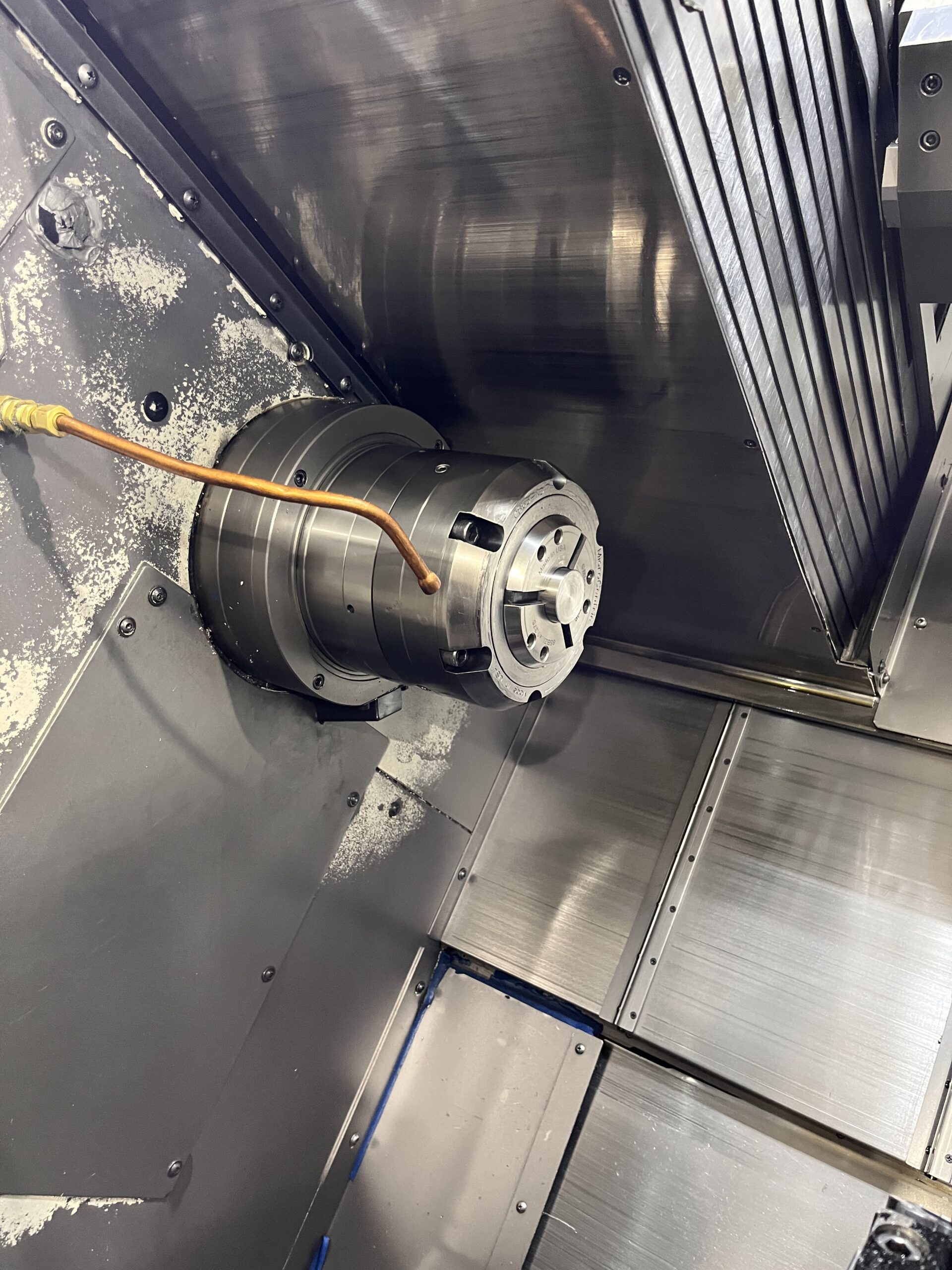

Main Spindle
Second Spindle

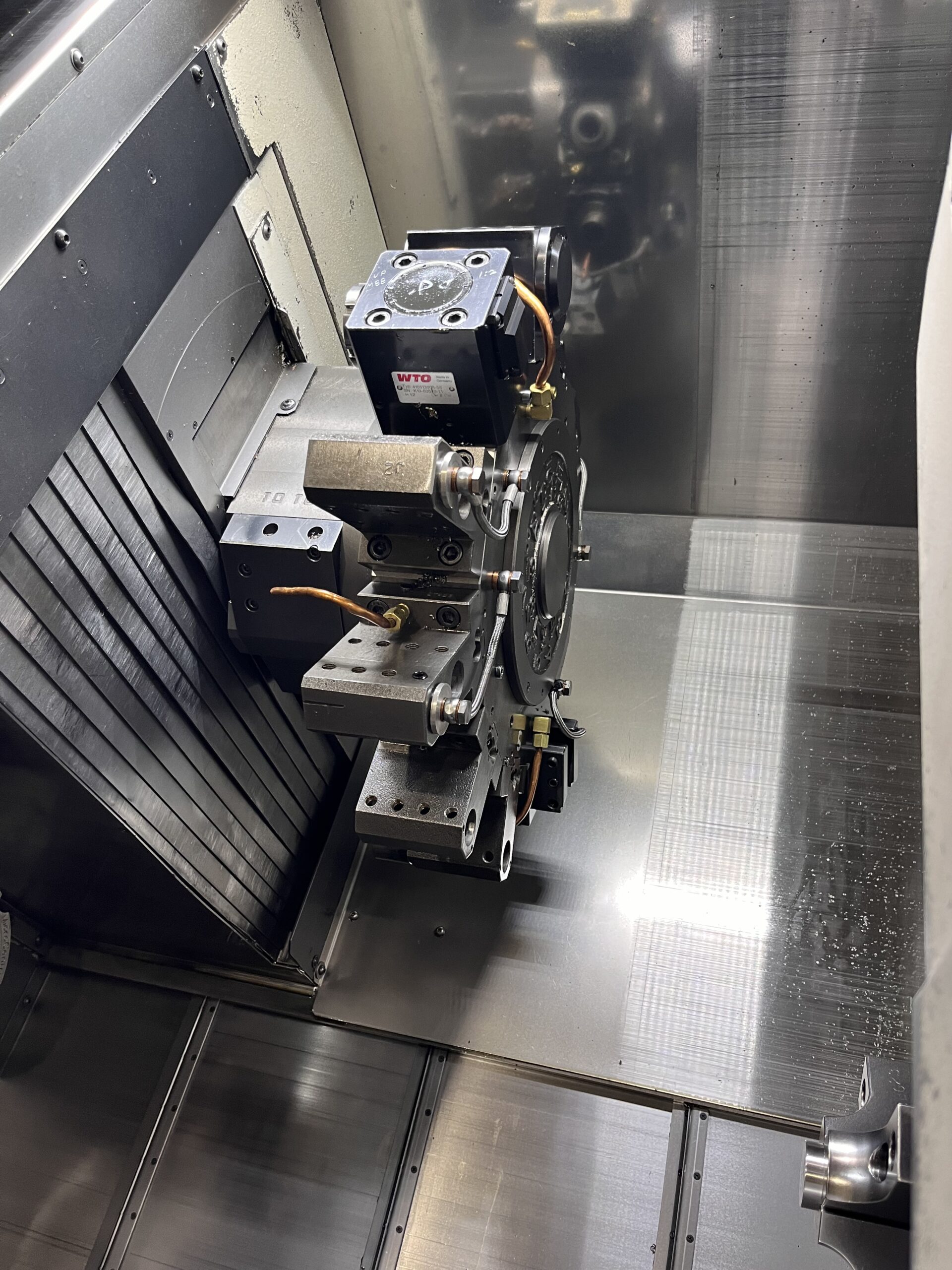

TURRET
• Turret type : Dodecagone • Number of tools : Upper 12, Lower 12
NUMBER OF HOURS OF OPERATION
18074h, 45m
CONTROLLER
FANUC FS18iTB
COMMENTS
Accessories/Options :

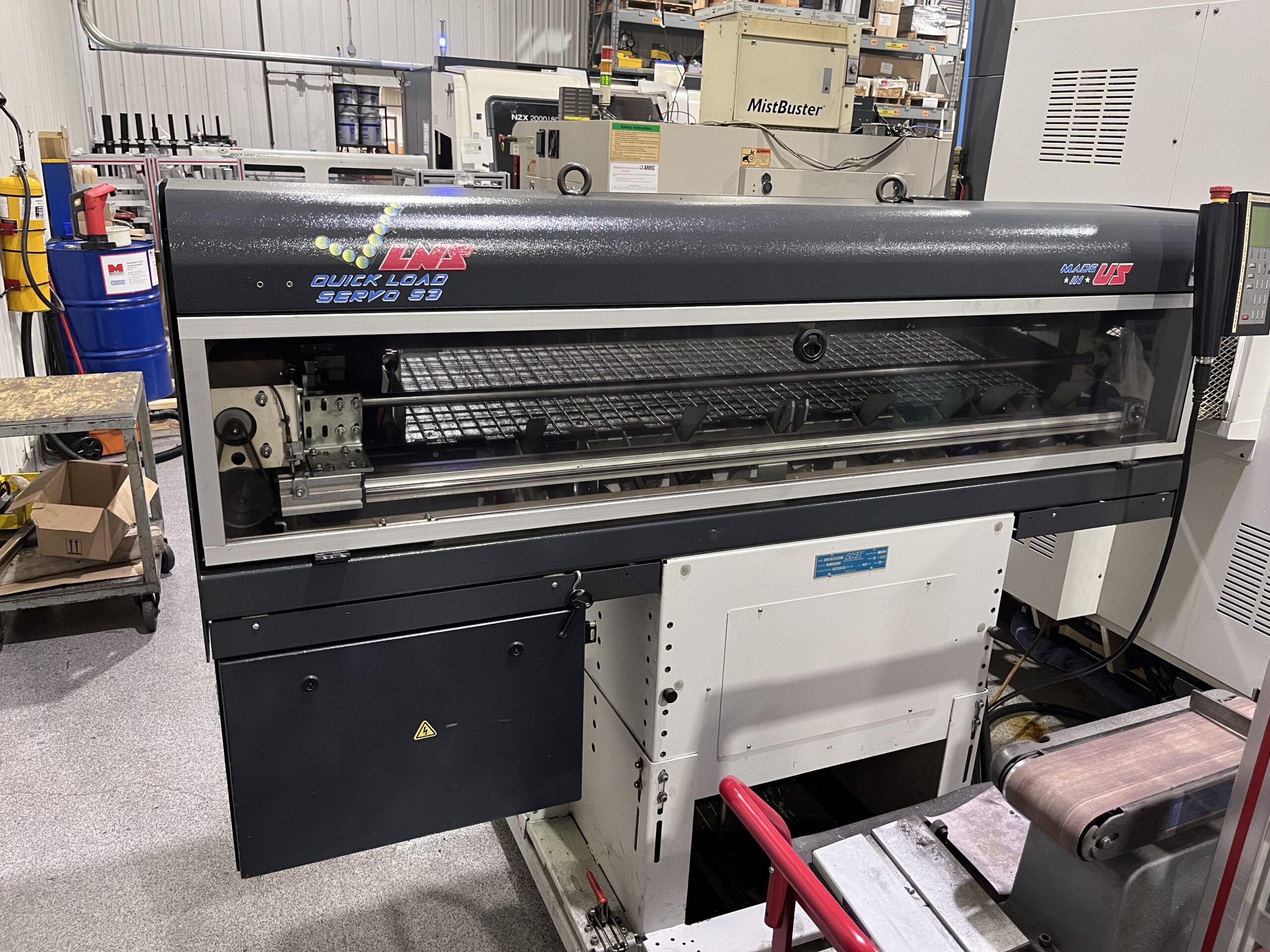

• Bar feeder LNS QLS S3
• Autres : Nakamura Chip Conveyor
