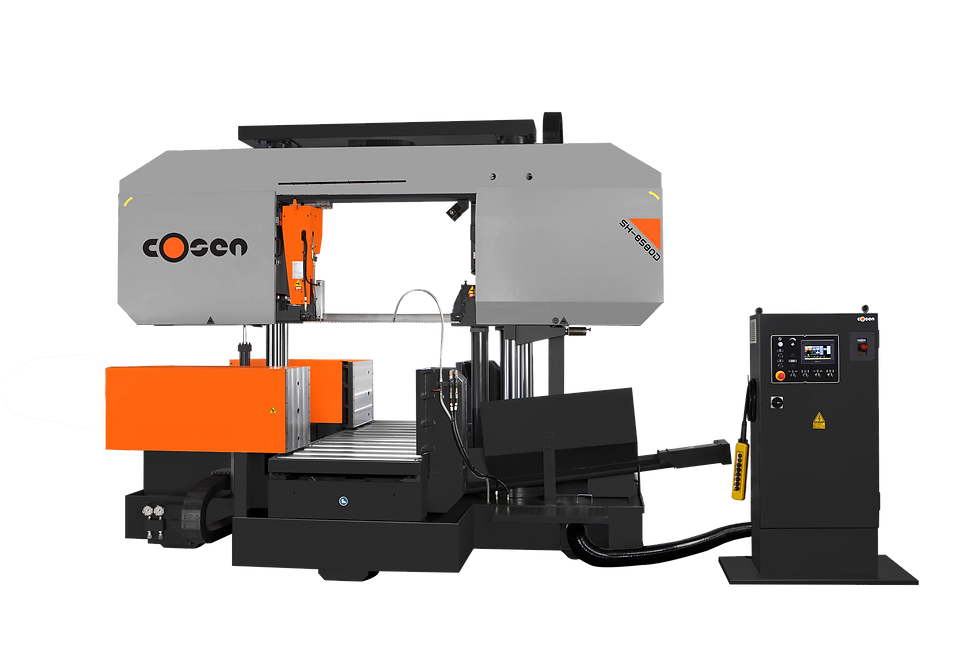

Cosen SH-8580D – Horizontal Dual Column Bandsaw

DESCRIPTION

With its rigid construction and superior features, the SH-8580D from Cosen exceeds many of the standard requirements that operators look for in a bandsaw. This robust bandsaw offers precision, operating efficiency, reduced cost per cut, and durability in demanding production environments. The operator’s control station is ergonomically positioned and can pivot to the ideal position. All operator controls are positioned on top of the control box and clearly labeled for ease of use. Electrical components are located inside the control box with the main locking disconnect switch on the front for added safety and easy maintenance.

STANDARD FEATURES

• Hydraulic dual-column design
• Gearbox designed to withstand high side pressure (no thermal distortion)
• Inverter blade drive system allowing infinitely variable blade speeds
• Adjustable cooling system
• Synchronized, motor-driven metal blade brush
• Carbide blade guides and bearings for additional blade support
• Cast iron guide arms with hydraulic control
• Front and rear cast iron hydraulic vises
• Split vise jaw to reduce burrs
• Automatic hydraulic blade tensioning device
• Precision double valve feed rate and pressure system for optimal cutting performance
• Front and rear vises can independently feed and discharge material

TECHNICAL SPECIFICATIONS
