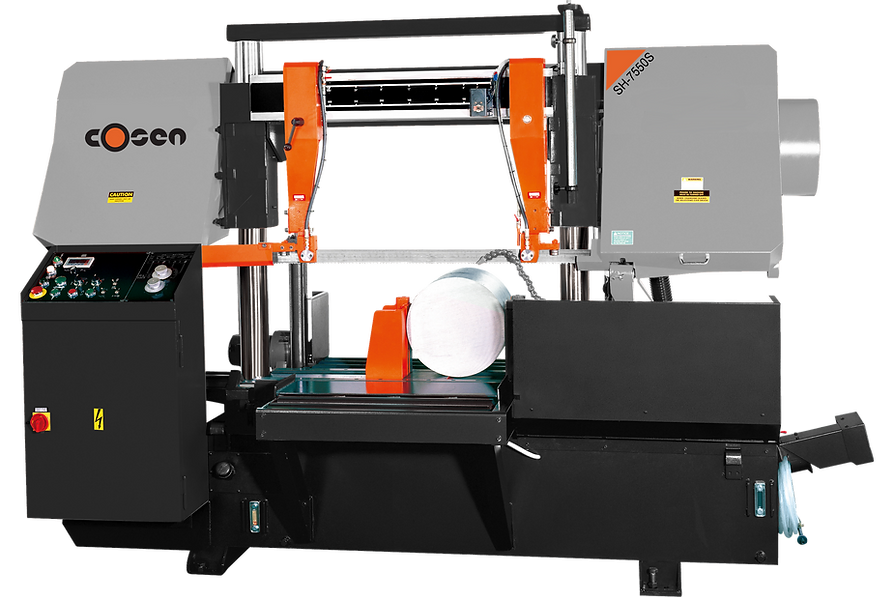

Cosen SH-7550S – Horizontal Dual Column Bandsaw

VIDEO

DESCRIPTION

The Cosen SH-7550S horizontal bandsaw exceeds many of the standard requirements that operators look for in a bandsaw. With its rigid construction and superior features, the SH-7550S from Cosen offers precision, robustness, operating efficiency, low cost per cut, and durability in demanding production environments.

STANDARD FEATURES

Hydraulic dual-column design
Gearbox designed to withstand high side pressure (no thermal distortion)
Inverter blade drive system allowing infinitely variable blade speeds
Adjustable cooling system
Synchronized, motor-driven metal blade brush
Carbide blade guides and bearings for additional blade support
Cast iron guide arms
Automatic hydraulic blade tensioning device
Cast iron hydraulic vise
Split vise jaw to reduce burrs
Precision double valve feed rate and pressure system for optimal cutting performance

TECHNICAL SPECIFICATIONS

Round Capacity	19.69″
Rectangular Capacity (HxW)	20″ x 29.5″
Blade Speed	50 – 328 FPM
Blade Size (LxWxT)	19′ 10″ x 2″ x .050″ / .063″
Blade Motor	7.5 HP
Coolant Motor	1/4 HP
Coolant Tank Capacity	22.5 gal
Hydraulic Tank Capacity	10 gal
Workbed Height	27.5″
Weight	5,315 lbs
Floorspace (LxWxH)	122.9″ x 43.2″ x 82.1″
