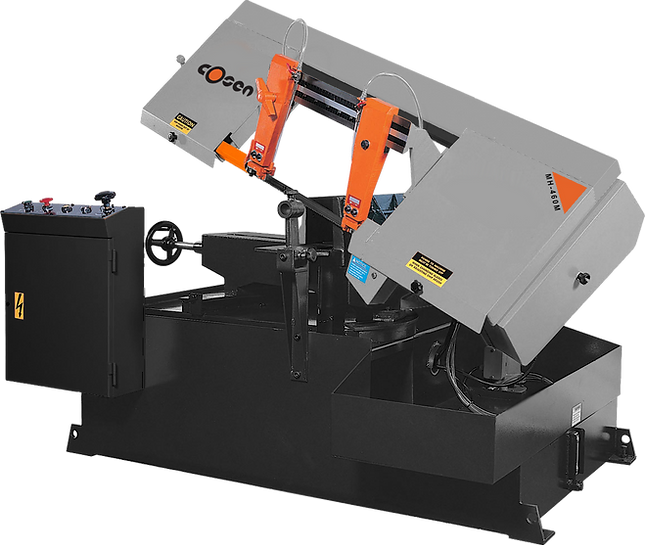

Cosen MH-460M – Horizontal Miter Band Saw
VIDEO
DESCRIPTION
The MH-460M saw is the largest manual saw in this series. It is equipped with a robust central pivoting frame, allowing better positioning of miter cuts. The main features included in this sturdy machine enable efficient use in limited series production environments, as well as toolroom applications. Its solid construction ensures many years of reliability and high-performance precision.
STANDARD FEATURES
- Precise hydraulic cylinder and hinge support
- Robust cast iron central pivot for straight and miter cuts from 0 to 30 degrees
- Adjustable cooling system
- Carbide blade guides and bearings provide additional blade support
- Rigid cast iron guide arms
- Cast iron vise
- Chip brush for blade cleaning
- Adjustable downfeed and pressure control
TECHNICAL SPECIFICATIONS
| Capacity Angle | 0 | -45 | -60 |
| Round Capacity | 10″ | 9.1″ | 4.3″ |
| Rectangular Capacity | 9.1″ x 18.1″ | 9.1″ x 9.1″ | 9.1″ x 4.3″ |
| Blade Speed | 75, 121, 190, 305 FPM |
| Blade Size (LxWxT) | 11′ 6″ x 1″ x .035″ |
| Blade Motor | 2 HP |
| Coolant Motor | 1/8 HP |
| Coolant Tank Capacity | 10.6 gal |
| Hydraulic Tank Capacity | — |
| Workbed Height | 25.2″ |
| Weight | 1,433 lbs |
| Floorspace (LxWxH) | 69″ x 43.3″ x 41.4″ |
