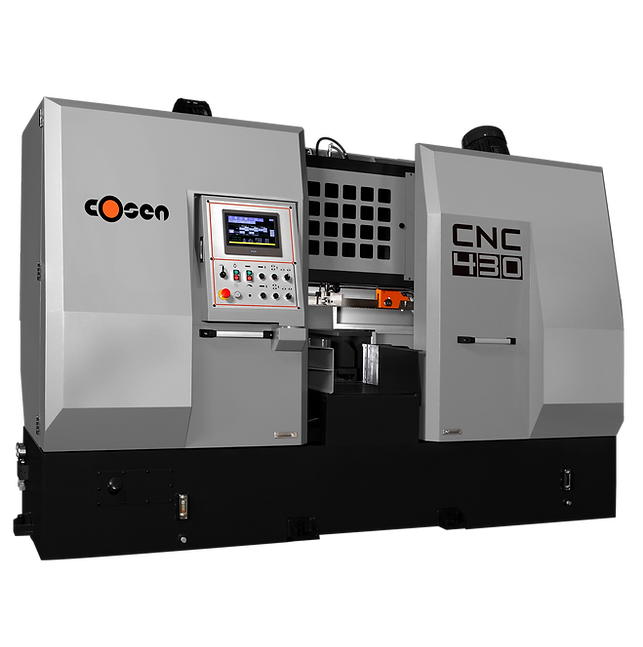

Cosen CNC-430 – Horizontal Dual Column Bandsaw

VIDEO

Watch

DESCRIPTION

Hard materials like Inconel, titanium, and stainless steel are expensive to cut due to the cutting time, tool costs, and the need for an experienced operator. With the Cosen CNC-430 saw, you have full control by cutting hard materials faster, extending blade life, and eliminating operator uncertainties or errors. The CNC-430 allows you to manage blades and work orders from the office, cut at recommended rates, and store your favorite settings. The CNC-430 features a cast iron saw frame, 4 oversized linear guides, large cast iron wheels with reinforcing arms, two vibration dampeners, and extra wide/wide guide arms, while a V-Drive further eliminates harmonics and vibrations. The dual vibration dampeners enhance cutting performance by removing maximum blade vibrations.

STANDARD FEATURES

TECHNICAL SPECIFICATIONS

Round Capacity 16.9″
Rectangular Capacity (HxW) 16.9″ x 19.7″
Blade Speed 50 – 459 FPM
Blade Size (LxWxT) 20′ 0.19″ x 2″ x .063″
Blade Motor 10 HP
Coolant Motor 1/2 HP
Coolant Tank Capacity 38 gal
Hydraulic Tank Capacity 15 gal
Workbed Height 26.3″
Weight 11,882 lbs
Floorspace (LxWxH) 152″ x 87.8″ x 89.2″
