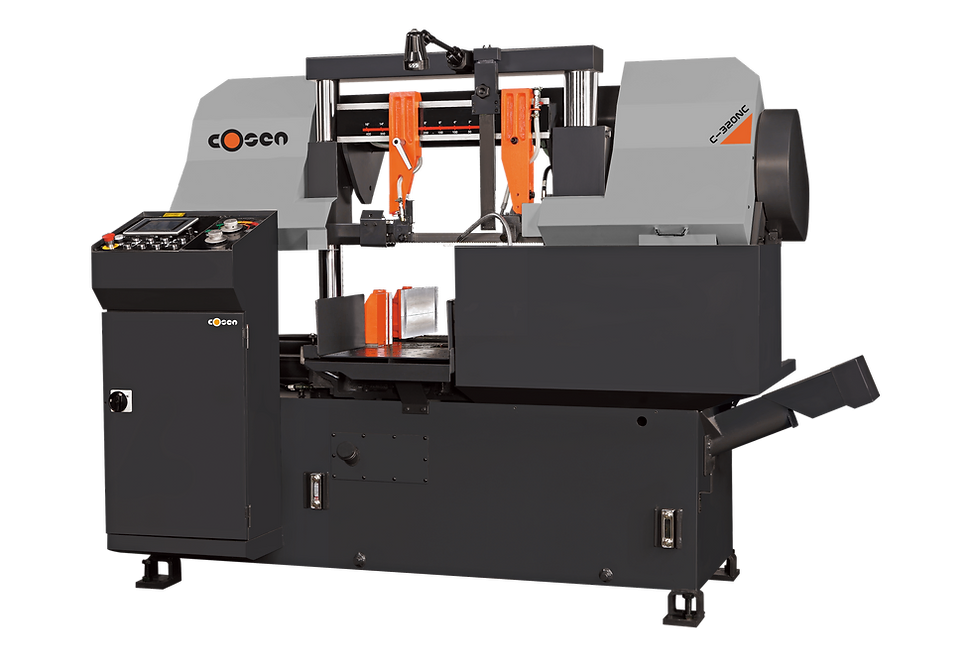

Cosen C-320NC – Horizontal Dual Column Bandsaw

DESCRIPTION

The C-320NC horizontal column bandsaw from Cosen is a high-production machine that integrates a massive base, robust saw frame, extremely sturdy gearbox, a 5 HP drive motor, and a user-friendly programmable control for easy operation. Equipped with Smart NC-100 (SNC-100) technology, the C-320NC offers most of the benefits of CNC saws at a fraction of the cost. The SNC-100 controls are programmable for up to 100 different tasks, including quantity and cutting length. The controls automatically compensate for kerf loss after data entry and require no manual calculation of indexing times. Robust, reliable, and technological are words that describe the C-320NC production machine from Cosen, making it the perfect saw for mass production environments.

STANDARD FEATURES

• Hydraulic dual-column design
• Gearbox designed to withstand high side pressure (no thermal distortion)
• Inverter blade drive system allowing infinitely variable blade speeds
• 5.7″ HMI touchscreen
• Adjustable cooling system
• Synchronized, motor-driven metal blade brush
• Carbide blade guides and bearings for additional blade support
• Rigid cast iron guide arms
• Automatic hydraulic blade tensioning device
• Cast iron hydraulic vise
• Split vise jaw to reduce burrs
• Save-A-Blade functionality
• Precision double valve feed rate and pressure system for optimal cutting performance
• Computer-controlled multiple indexing up to 999″ max. length

TECHNICAL SPECFICATIONS
