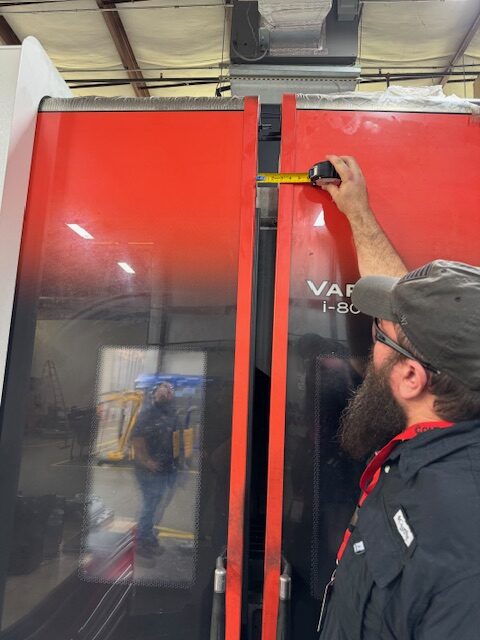

Mazak Variaxis i800 NEO Used Machining Center 2022 – 32010235

---

Fraiseuse CNC / Centre d’usinage

Year

2022

Travel

X-axis travel (spindle head left / right): 29.53"
Y-axis travel (spindle head back / forth): 35.04"
Z-axis travel (spindle head up / down): 23.62"
A-axis travel (table tilt): -120°~ + 30°
C-axis travel (table rotation): ±360°

Size

Spindle

Comments

Spécifications :
Stroke

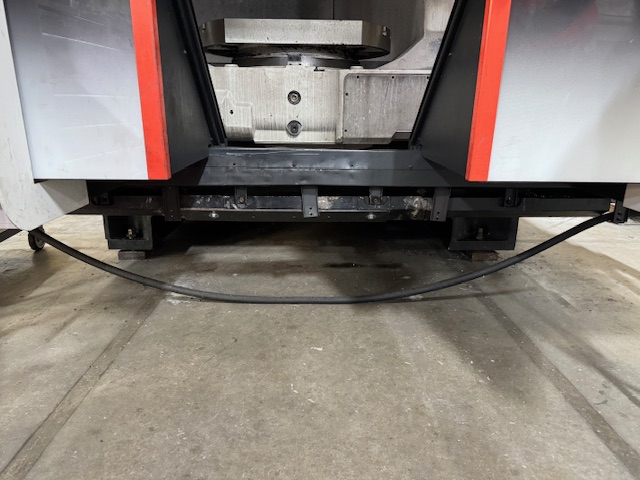

Table size: 31.50"×24.80"
Max. workpiece size: 39.37"×16.34"
Table load capacity (evenly distributed): 2,205 lbs
Table surface configuration: 0.71" T-slot × 3.94" pitch
X-axis travel (spindle head left / right): 29.53"
Y-axis travel (spindle head back / forth): 35.04"
Z-axis travel (spindle head up / down): 23.62"
A-axis travel (table tilt): -120°~ + 30°
C-axis travel (table rotation): ±360°
Table Distance from table top to spindle nose: 7.48"~31.10" (table horizontal)
Milling Spindle
Max. spindle speed: 10000 rpm
Spindle motor [40% ED (30 min. rating) / cont. rating]: 50 HP / 40 HP
Spindle taper: 7/24 taper No.50
Feedrate
Rapid traverse rate (X-, Y-, Z-axis): 1890 IPM
Rapid traverse rate (A- / C-axis): 10800°/min / 18000°/ min
Cutting feedrate*1 (X-, Y-, Z-axis): 1890 IPM
Cutting feedrate*1 (A-, C-axis): 9000°/ min
Simultaneously controlled axes: 5
Min. indexing increment (A-, C-axis): 0.0001°
Indexing time (A-axis) (clamp / unclamp time not included): 0.71 sec. / 90°
Automatic tool changer
Tool shank configuration: CAT50
Tool storage capacity: 40
Max. tool diameter / length (from gauge line) / weight: 4.92" / 16.34" / 44 lbs
Max. tool diameter with adjacent tool pockets empty: 8.27"
Tool change time (chip-to-chip): 4.3 sec.
Machine size
Height: 137.68"
Width: 106.10"
Length: 192.52"
Machine weight: 39,859 lbs

Options et Équipements :
MAZATROL SMOOTHAI CNC
19" COLOR LCD (TOUCH SCREEN) 1
EIA/ISO PACKAGE: INCLUDES THE FOLLOWING SOFTWARE OPTIONS:
USER MACRO (COMMON VARIABLES:600 PAIRS)
MAZAK TAPPING/BORING TORNADO (G130)
EIA/ISO CODE INPUT FUNCTION (STANDARD)
ADD'L EIA/ISO FUNCTIONS:
SPIRAL INTERPOLATION (EIA)(G02.1/G03.1)
PATTERN ROTATION (EIA)
3 DIMENSIONAL CUTTER COMPENSATION (EIA)
GEOMETRIC COMMAND (EIA)
SCALING (EIA)(G50/G51)
EXTERNAL DATA INPUT/OUTPUT (EIA)
INVERSE TIME FEED (G93)
SEQUENCE NUMBER COMPARISON STOP FUNCTION
ADD'L WORKPIECE COORDINATE SYS 300 PAIRS
THREAD CUTTING FUNCTION (G33)
POLAR COORDINATES INPUT (G122)(EIA)
EIA PATTERN CYCLE (GRID,ARC) (G34.1 / G35 / G36 / G37.1)
MAZACC-2D SOFTWARE(SHAPE COMPENSATION)(G61.1)
MAZACC-3D HIGH-SPEED SOFTWARE PACKAGE(G5P2)
SHAPE COMPENSATION FOR ROTARY AXES
HIGH SMOOTHING CONTROL (REQ.MAZACC-3D)
5-AXIS MACHINING PACKAGE FOR SMOOTHAI
EIA/ISO FUNCTION SIMULTANEOUS 5 AXES
TOOL TIP POINT CONTROL / SIMULTANEOUS 5 AXES (G43.4)
5-AXIS SPLINE INTERPOLATION (G61.2)
FINE SPLINE INTERPOLATION (G06.1)
MAXIMUM PROGRAM SIZE : 32MB 1
SD MEMORY I/F(1-PORT) + USB I/F(1-PORT) 1
LAN PORT 1
USB I/F (1-PORT) 1
SMOOTH SYNCHRONIZED TAPPING
G37.AUTOMATIC TOOL-LENGTH MEASUREMENT 1
EIA DYNAMIC COMPENSATION 2 (INCLUDES 1) 1
G00 SLOPE CONSTANT 1
INCH/METRIC CONVERSION 1
ACTIVE VIBRATION CONTROL 1
AI THERMAL SHIELD 1
RELOCATION DEVICE
PREP. COOLANT THROUGH SPINDLE (SUPER FLOW) 1
COOLANT THROUGH SPINDLE (5KG,71PSI) 1
TOOL LENGTH MEASUREMENT (RENISHAW PRIMO LTS) 1
Includes Tool Breakage Macro
PEP. FOR MAZAK MONITORING SYS.-B RMP600 1
ABSOLUTE POSITIONING SYSTEM 1
SPINDLE CHILLER UNIT 1
COOLERS FOR BALL SCREW (X,Y,Z-AXIS)
AUTO POWER ON/OFF + WARM-UP 1

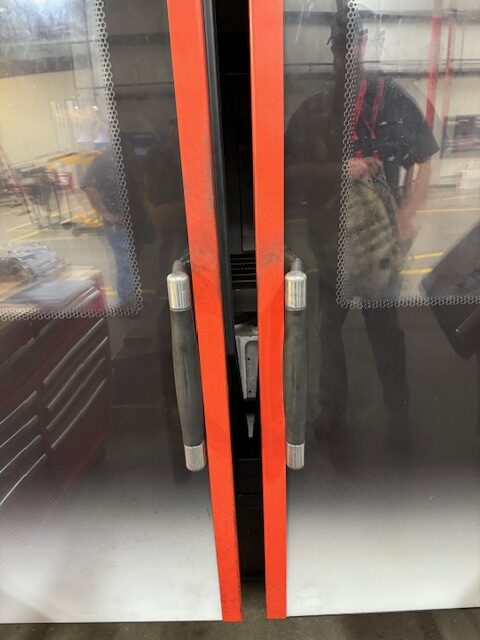

OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH 1
SPINDLE MULTI-POINT ORIENT(M-CODE/1DEG.) 1
SPINDLE SPEED 10,000 RPM (CAT50) 1
MAIN SPINDLE MOTOR AC 30KW(40HP) 1

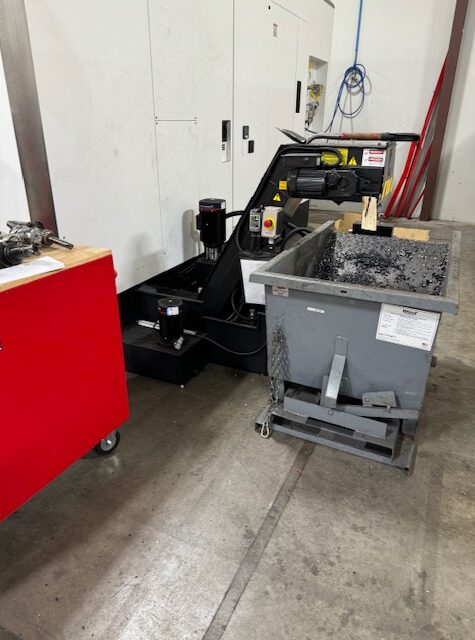

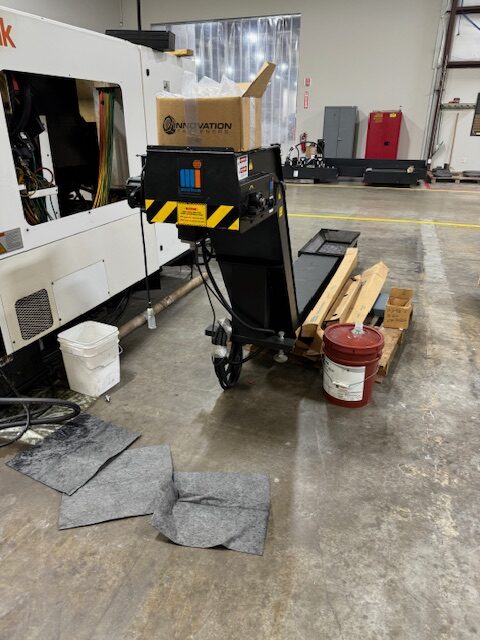

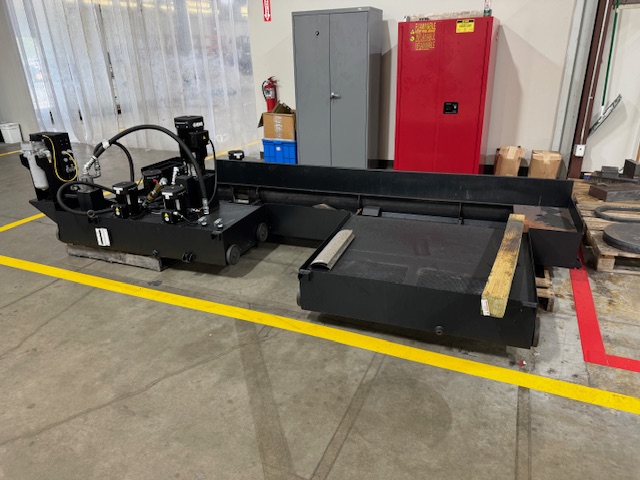

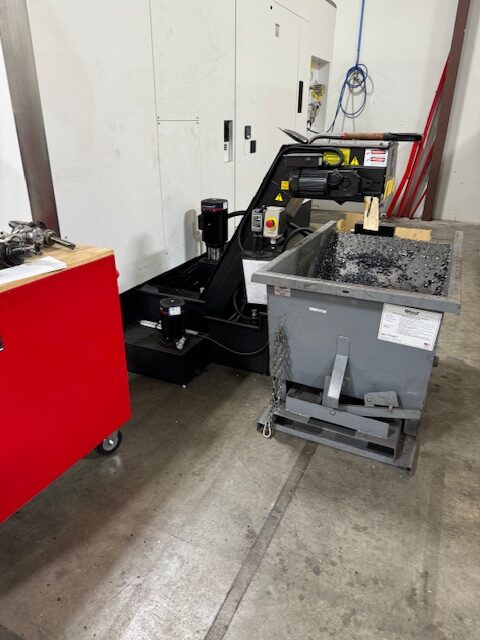

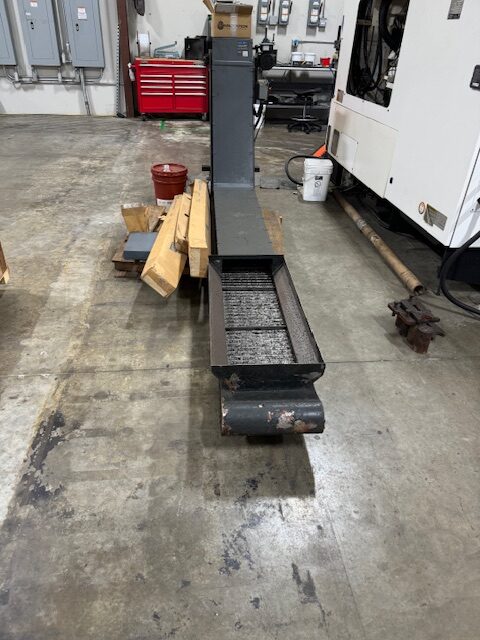

Chip Conveyor (Mayfran Hinge)
40 ATC
213 HP-Through Spindle Coolant

---

Price request
