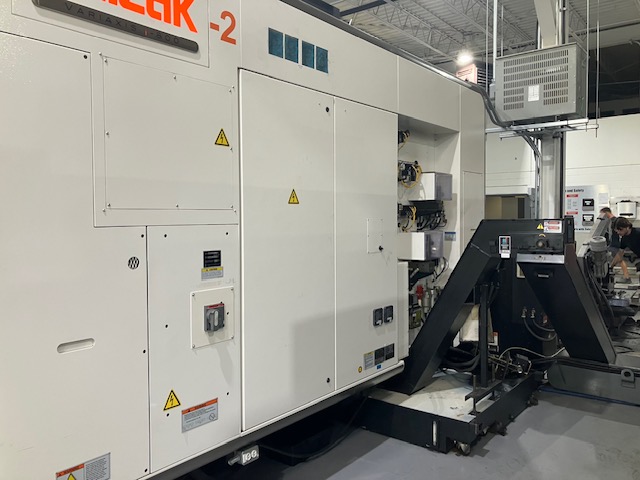

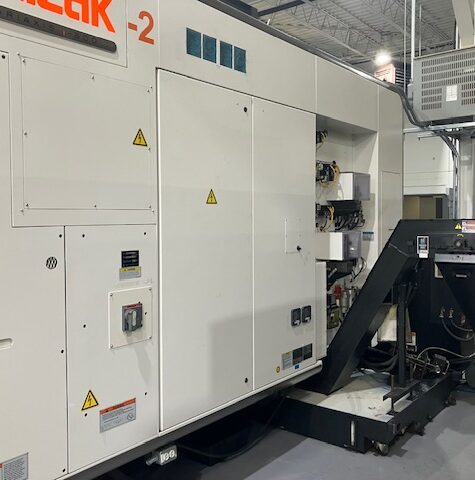

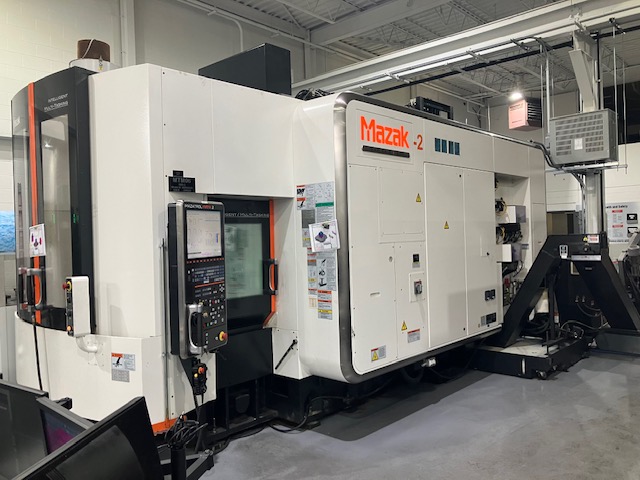

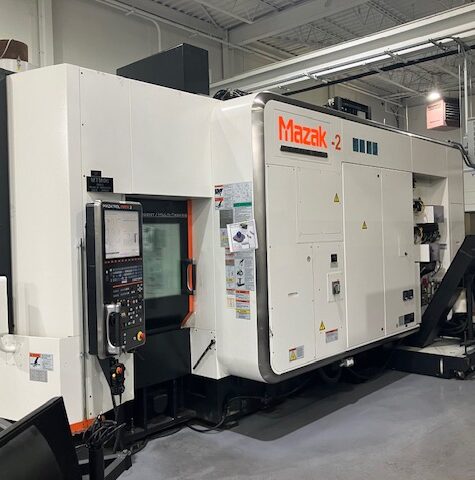

Mazak Variaxis i-800 2 pallettes Used Machining Center 2013 – 32010234

---

Fraiseuse CNC / Centre d’usinage

Year

2013

Travel

Max. workpiece size: 28.74” Dia x 19.69” Height
X-axis travel (Saddle’s longitudinal movement): 28.74”
Y-axis travel (Column’s transverse movement): 33.46”
Z-axis travel (Spindle head’s vertical movement) 22.05”
A-axis travel (Table tilting)[Indexing in units of 0.0001Deg): –120° to +30° (axis control)
C-axis travel (Table rotation)[Indexing in units of 0.0001Deg): ±360°(axis control)
Distance between spindle nose and top of the table: 9.06” to 31.10”
(positioned horizontally)
Distance between spindle nose and center of the table: 7.09” to 29.13

Size

Spindle

Comments

Spécifications :
Max. workpiece size: 28.74” Dia x 19.69” Height
X-axis travel (Saddle’s longitudinal movement): 28.74”
Y-axis travel (Column’s transverse movement): 33.46”
Z-axis travel (Spindle head’s vertical movement) 22.05”
A-axis travel (Table tilting)[Indexing in units of 0.0001Deg): –120° to +30° (axis control)
C-axis travel (Table rotation)[Indexing in units of 0.0001Deg): ±360°(axis control)
Distance between spindle nose and top of the table: 9.06” to 31.10”
(positioned horizontally)
Distance between spindle nose and center of the table: 7.09” to 29.13”
(positioned vertically)
Max. load on the table (uniformly distributed load): 1102 lbs
Spindle speed min1 : 10,000 RPM
Motor output : 50 / 40 HP
Rapid traverse X/Y/Z: 1653 IPM
A/C : Deg/min 18000
Cutting feed X/Y/Z: 1653 IPM
A/C Deg/min 9000
920 Avenue Simard, suite 103, Chambly, Qc, J3L 4X2
Numéro Référence:32010235
Number of axes controlled simultaneously: 5
Table size: 19.69” x 19.69”
Table surface Height: 40.16”
Magazine capacity: 120
Tool shank type: HSK100
Max. tool diameter With adjacent pockets occupied: 4.92” / 8.27”
Max. tool length: 15.75”
Machine Size Height: 141”
Machine Size Width: 140”
Machine Size Depth: 235”
Weight: 46,297 lbs
Options et Équipements :

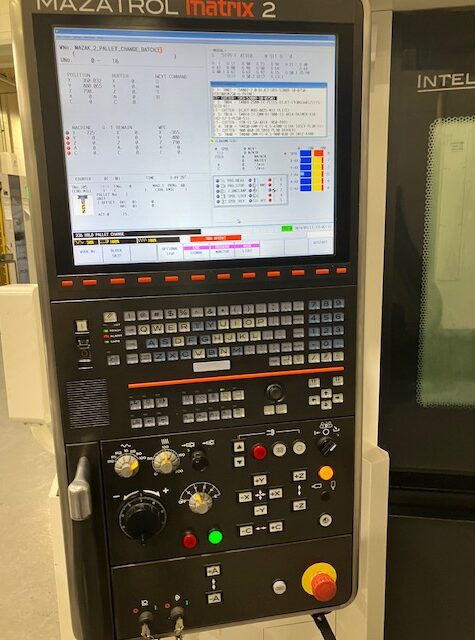

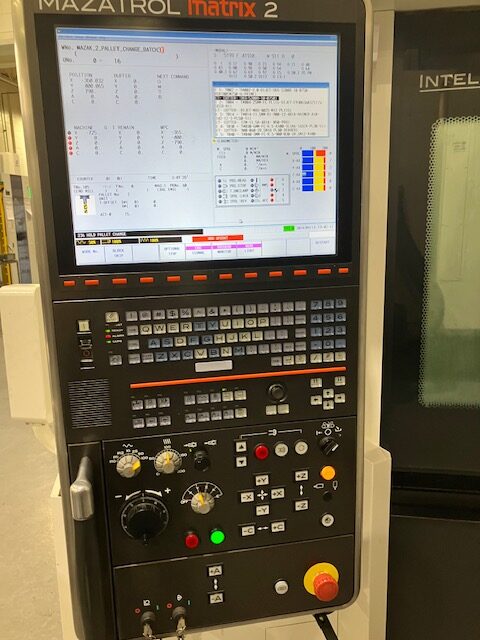

Mazatrol Matrix 2 Control

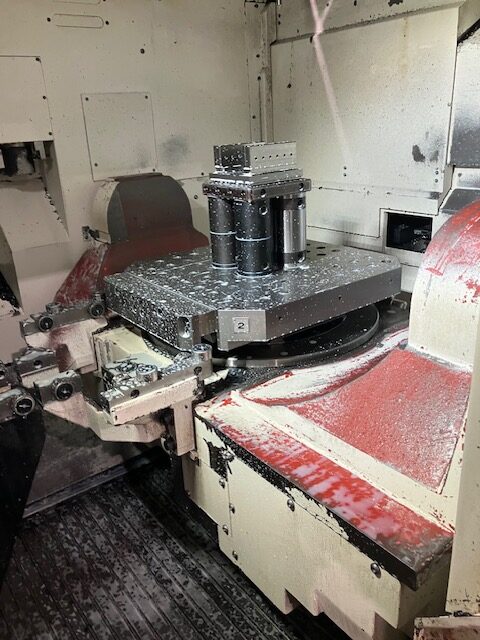

2 Pallet Changer
10k RPM
HSK100
120 ATC

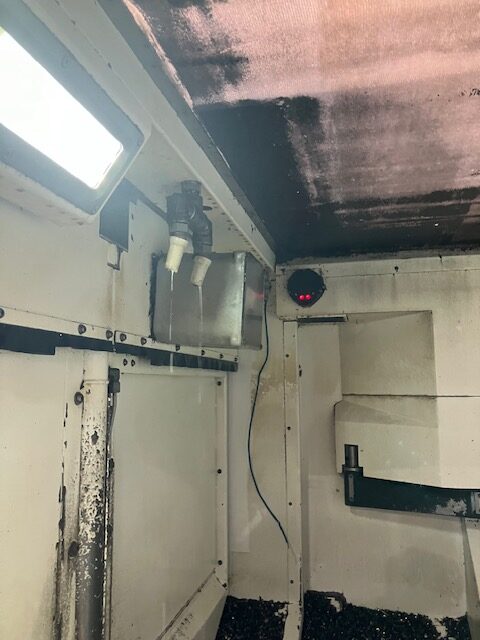

High Pressure Coolant @ 1000 PSI

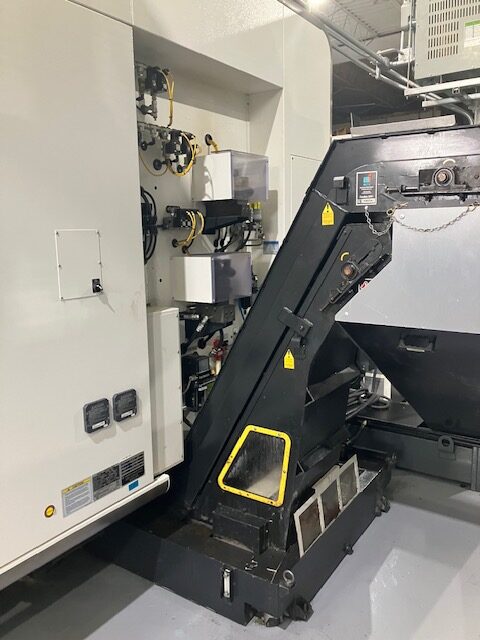

Concep 2000 Chip Conveyor

---

Price request
