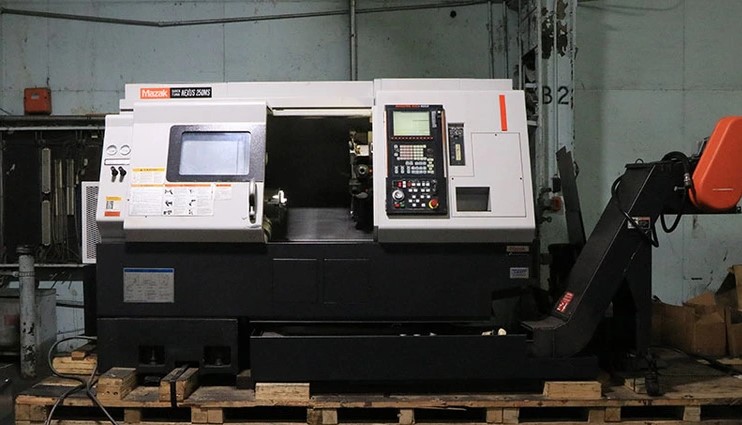

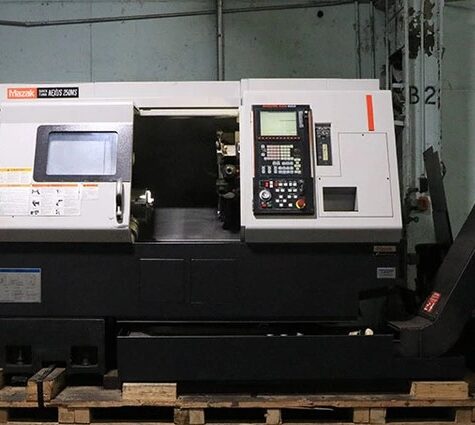

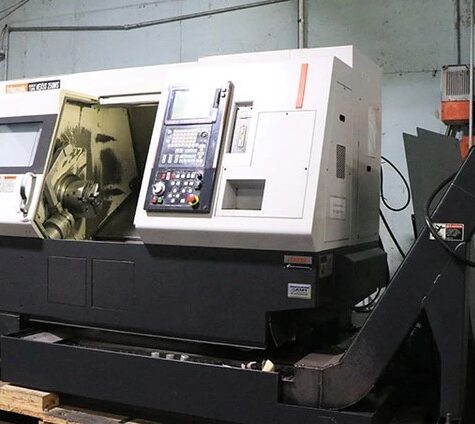

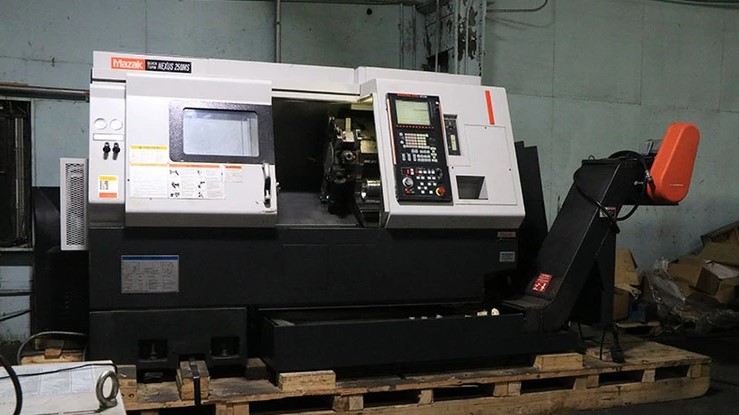

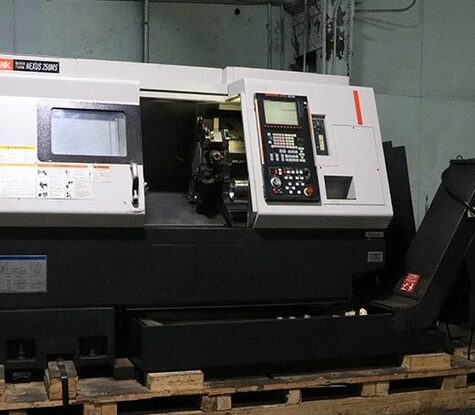

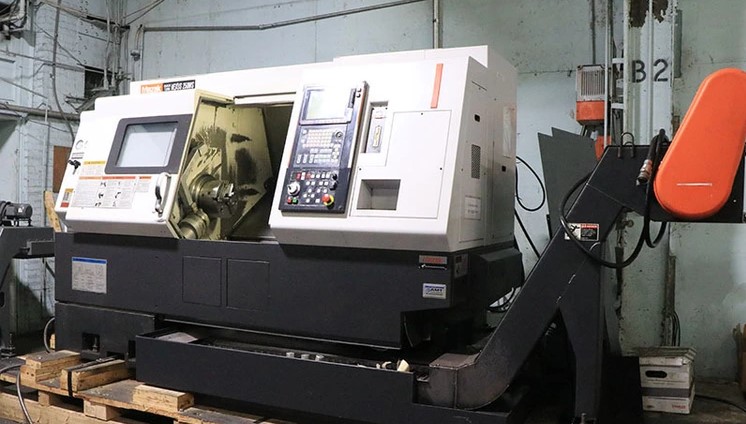

Mazak QTN 250MS Used CNC Lathe 2005 – 32010248

Tour CNC

Year

2000

Size

Spindle

Comments

Spécifications :
MAX. SWING .................................. 26.57"
MAX. MACHINING DIAMETER ..................... 14.96"
BAR WORK CAPACITY ........................... 3.03"
DIST. BETWEEN CHUCK JAWS OF BOTH SPINDLES ... 21.20"
SPINDLE SPEED, MAIN ......................... 35-4000 RPM
SPINDLE NOSE, MAIN .......................... A2-8
MOTOR OUTPUT (HALF-HOURLY RATING)............ 35HP (26kW)
SPINDLE SPEED, SUB .......................... 35-6000 RPM
SPINDLE NOSE, SUB ........................... A2-6
MOTOR OUTPUT (5/10 Min. RATING) ............. 10HP (7.5kW)
NUMBER OF TURRET POSITIONS/(MILLING TOOLS)... 12 (12)
OD TURNING TOOL SIZE ........................ 1"
ID TURNING TOOL SIZE ........................ 1.5"
MILLING DRILL SIZE .......................... 0.79"
MILLING TOOL SPEED .......................... 25-4000 RPM
MILLING MOTOR OUTPUT (10 Min RATING) ........ 7.5HP (5.5kW)
APPROX. MACHINE WEIGHT ...................... 11,500 LBS

Options et Équipements

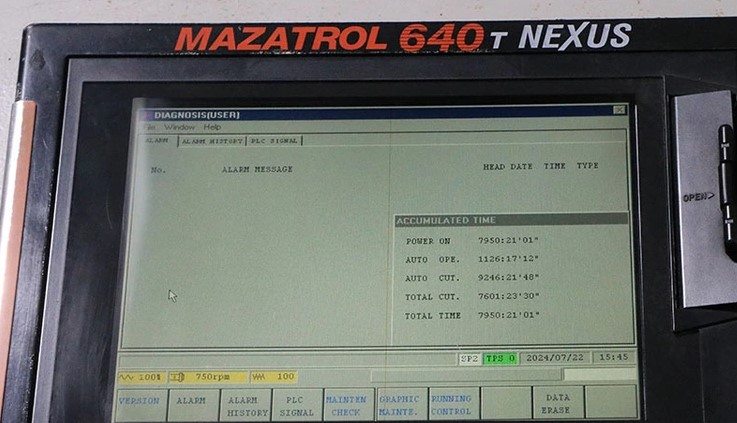

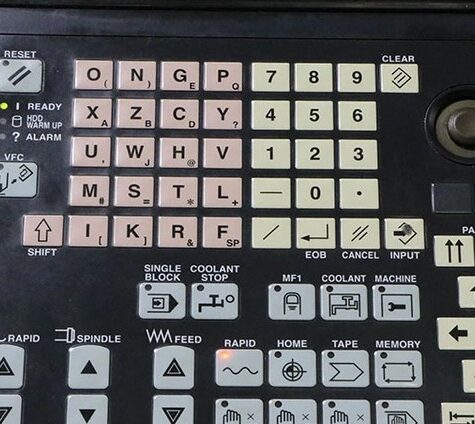

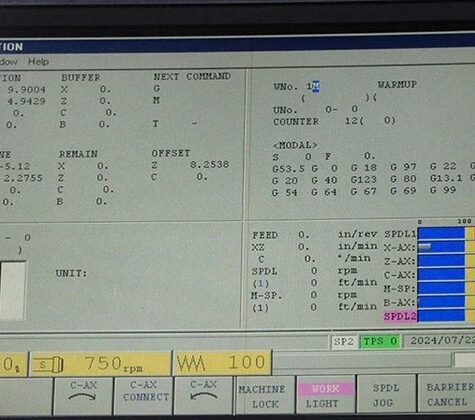

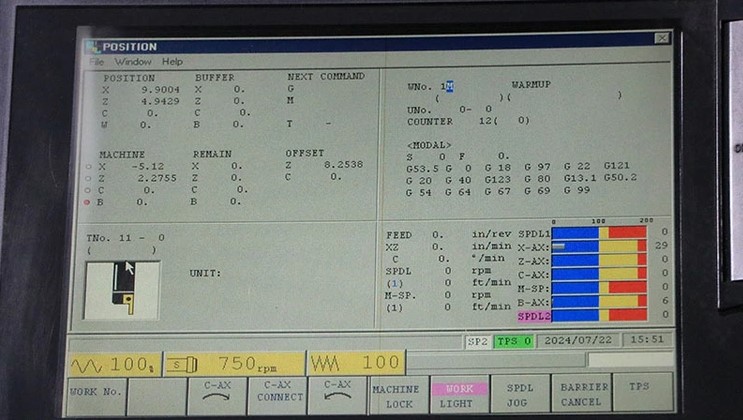

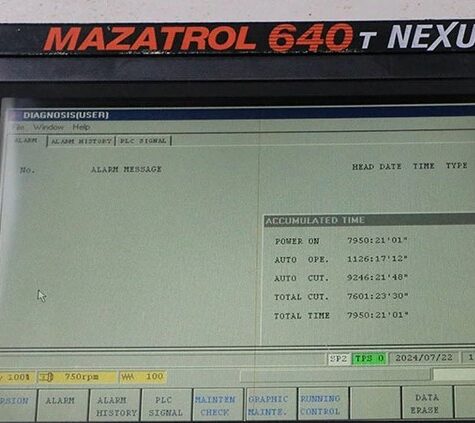

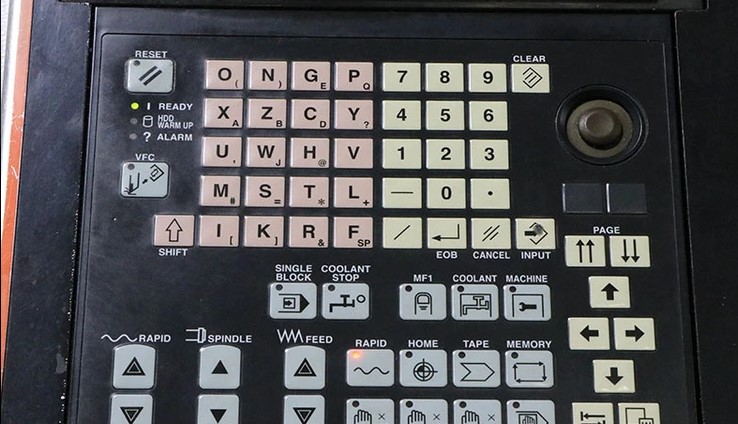

- MAZATROL 640T NEXUS CONTROL
- TOOLEYE

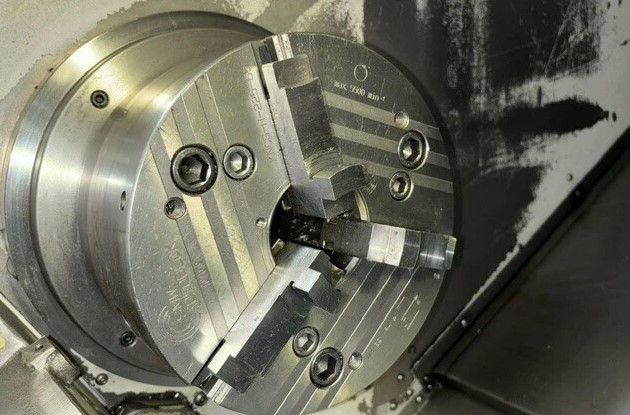

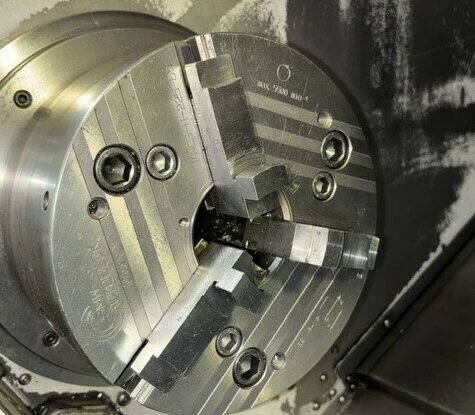

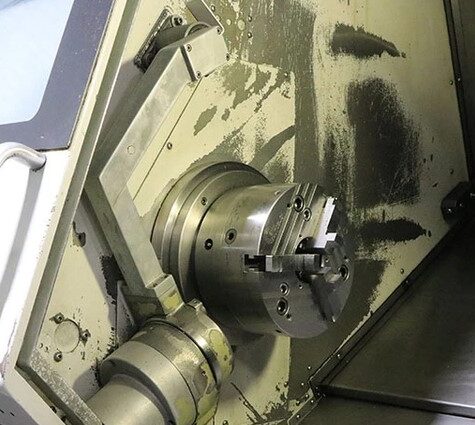

- SMW AUTOBLOK KNCS-N-225-65 3-JAW CHUCK ON MAINSPINDLE

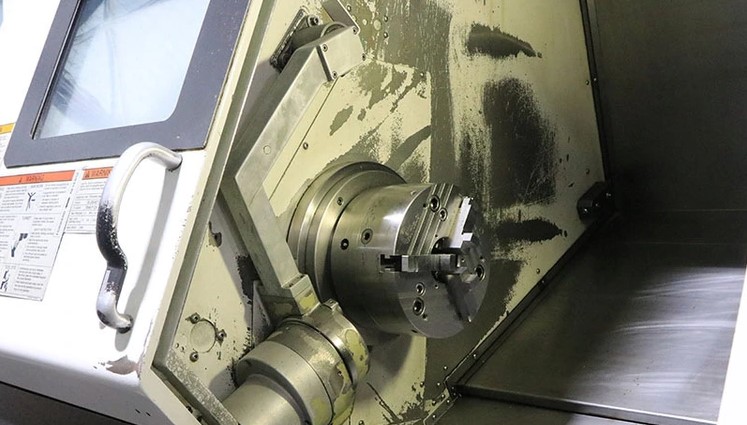

- HAINBUCH COLLET CHUCK ON SUBSPINDLE

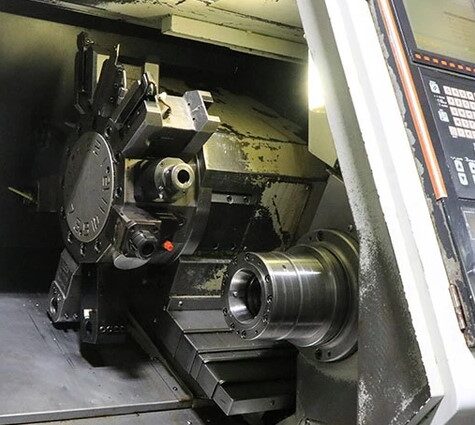

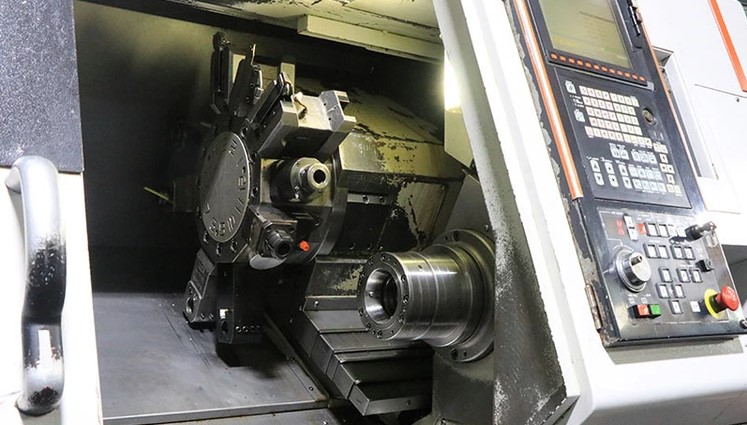

- 12 POSITION TURRET (ALL STATIONS CAN BE LIVE)
- FULL C-AXIS

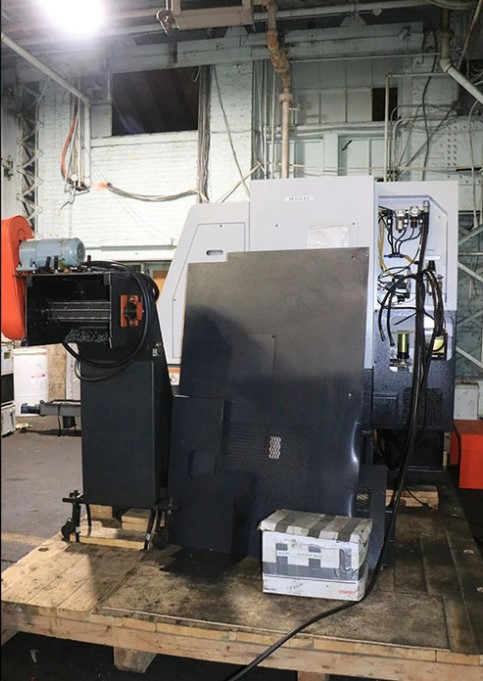

- CHIP CONVEYOR
- ALL AVAILABLE STATIC TOOLHOLDERS
- (3) LIVE TOOLHOLDERS
- ALL AVAILABLE MANUALS

Price request
