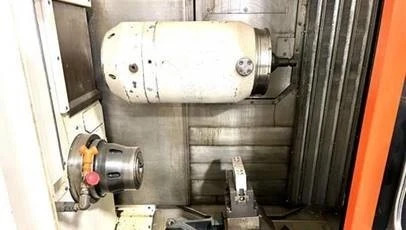

Mazak Integrex i-150 Used 2011 – 3201077

---

Tour CNC

Year

2011

Travel

B-Axis.................................. 200 Degrees
(-10 deg. to 190 deg. 0.0001 degree increments)
Y-Axis.................................. +/-3.94"
X-Axis.................................. 14.57"
Z-Axis.................................. 17.13"
W-Axis.................................. 11.81"
AXIS RAPID RATES:
X, Y & Z-Axis........................... 1575 IPM
W-Axis.................................. 1181 IPM
B-Axis.................................. 40 RPM
C-Axis.................................. 555 RPM
Maximum Swing........................... 15.74"
NOTE: Tool eye body may limit max. swing.
Maximum Swing using Y-axis..............
Maximum Swing over Cross Slide.......... 15.74"
Maximum Cutting Diameter: Chucking...... 13.38"
NOTE: Max. cut dia. with OD turning tool 2.55"L
Maximum Cutting Length ................. 15.16"

Size

Spindle

Tourelle

72 outils

Comments

Spécifications :
Maximum Swing........................... 15.74"
NOTE: Tool eye body may limit max. swing.
Maximum Swing using Y-axis..............
Maximum Swing over Cross Slide.......... 15.74"
Maximum Cutting Diameter: Chucking...... 13.38"
NOTE: Max. cut dia. with OD turning tool 2.55"L
Maximum Cutting Length ................. 15.16"
MAIN SPINDLE SPECIFICATIONS:
Spindle Nose............................ A2-6
Spindle Bore............................ 2.99"
**Maximum Bar Work.... ................... 2.5"
Spindle Speed........................... 5,000 RPM
Spindle Index (Programmable)............ 0.0001 Deg.
3,600,000 Positions
Spindle Horsepower (Cont./30 Mins)...... 10/15 HP (AC)
Spindle Torque (15 min.)................ 118.6 ft-lbs.
TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.......................... 1 position w/ATC
Magazine Capacity....................... 72 tools
Tool Selection Method................... Random
Tool to Tool ATC Time................... 1.3 sec.
Max. Tool Dia. w/All Pockets Full....... 3.54"
Max. Tool Dia. w/Adjacent Pockets Empty. 4.92"
Max. Tool Length (From Gage-Line)....... 8.27"
Maximum Tool Weight..................... 11 lbs.
ATC Tool Shank.......................... CAPTO
Rotary Tool Spindle Speed............... 12,000 RPM
Rotary Tool Spindle Horsepower (20% ED). 10 HP (AC)
Rotary Tool Torque (20% ED)............. 36.2 ft-lbs
AXIS TRAVELS:
B-Axis.................................. 200 Degrees
(-10 deg. to 190 deg. 0.0001 degree increments)
Y-Axis.................................. +/-3.94"
X-Axis.................................. 14.57"
Z-Axis.................................. 17.13"
W-Axis.................................. 11.81"
AXIS RAPID RATES:
X, Y & Z-Axis........................... 1575 IPM
W-Axis.................................. 1181 IPM
B-Axis.................................. 40 RPM
C-Axis.................................. 555 RPM
OPTIONAL WORK UNLOADING SYSTEM (W-Axis)
Maximum Workpiece Diameter.............. 2.56"
Index Time.............................. 1 Sec.
Optional Work Center Attachment......... MT#2
GENERAL SPECIFICATIONS:
Floor Space (WxL)....................... 86.61" x 95.282"
Machine Height.......................... 98.43"
Total Power Required (Machine Only)..... 26.15 KVA
NOTE: Actual Machine Main Transformer
KVA Rating Will be Greater.
Air Requirements........................ 72.5 PSI/26.5 CFM
Machine Weight.......................... 15,432 lbs.

Options et Équipements :
Mazatrol Matrix Control
19” Color LCD
EIA/ISO Code Input Function
Additional EIA/ISO Functions
3-D Coordiante Conversion
G00 Slope Constant
Shape Compensation for Rotary Axes
Cylindrical & Polar Coordinate
Milling-Spindle Synchronous Tapping
EIA/ISO Lathe & Mill Spindle Independent Rotation
IC Memory Card Interface
Inch/Metric Conversion
Cardbus I/F (2-Slot)
LAN Port
USB I/F
B-Axis 0.0001 Deg/Cntring (Req. EIA/ISO)
Absolute Positioning Sys (Linear Axes)
XYZ Pitch Error Compensation Input
Coolant Through Milling Head
Main Spindle Motor 15 HP
Spindle Speed 5000 RPM
1st Spindle Dia. 2.99”
C-Axis 0.0001 Degree Incr.
Rotary Tool Spindle Speed 12,000 RPM
Scale Feedback System for B-Axis
Automatic Tool Eye
Automatic Chuck Jaws Open/Close
Chuck Open/Close Confirmation
Coolers for Ballscrew X-Axis
Relocation Device
Windows XP Operating System for Mazak Machine Control
Tail Center Attachment (with Center)
Work Unloading Unit
Turret Air Blast (Flood Coolant Nozzle)
Prep for 1000 PSI Super Flow Thru/71 PSI Flood Simul-Flowable
72 Capto-Tool Magazine
Chip Conveyor Side Disposal (Consep)
MT Connect Preparation
EIA/ISO Function Simultaneous 5 Axes
Tool Tip Point Control / Simultaneous 5 Axes
Tool Radius Compensation / 5-Axis
EIA Dynamic Compensation I
High Smoothing Control
Mill Turning (Mazatrol)
Max Program Size: 8MB
Workpiece Cleaning Coolant
Overload Detection System
Mazacc-3D High Speed Software Package
Mazak Super Flow T8 High Pres. Coolant Unit (1000 PSI/8 GPM)
LNS Quick Load Servo 80-S2 Barfeed (Front Load Only)
Renishaw TRS2 Broken Tool Detection System
Collet Chuck

---
