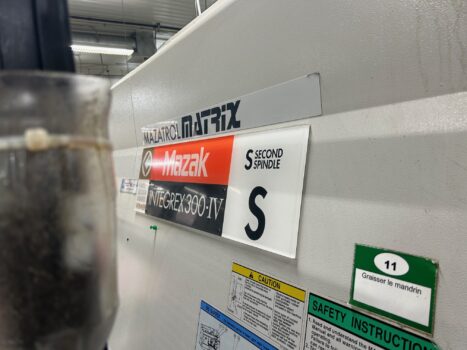

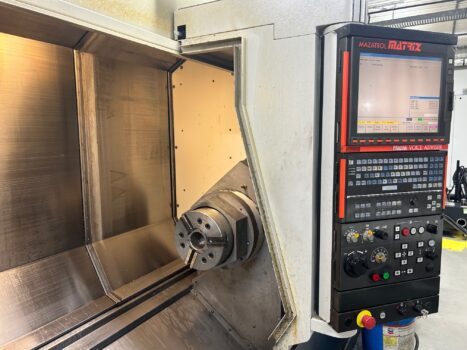

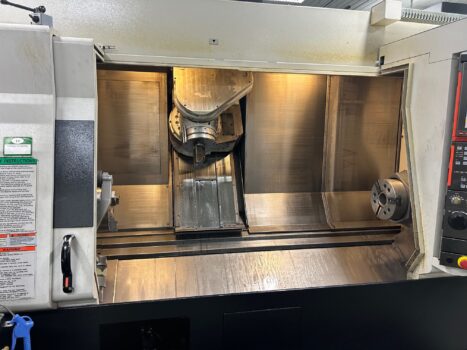

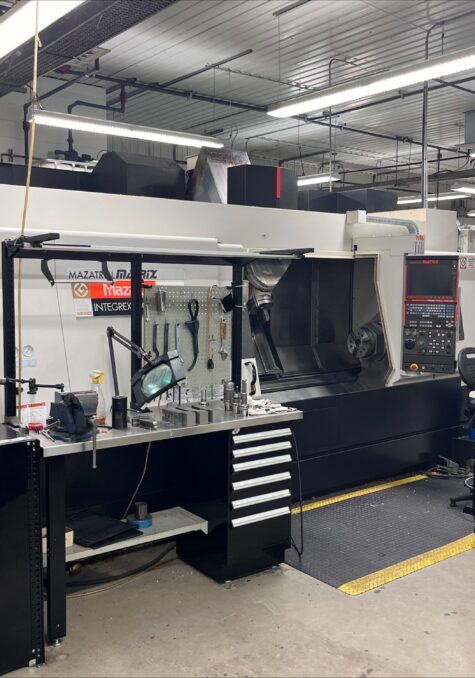

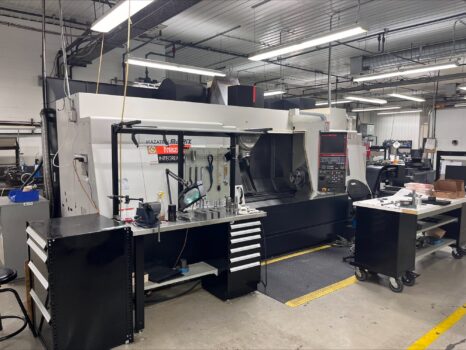

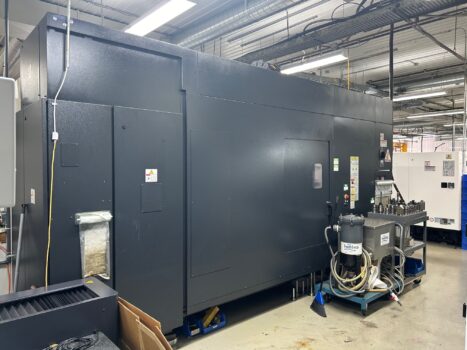

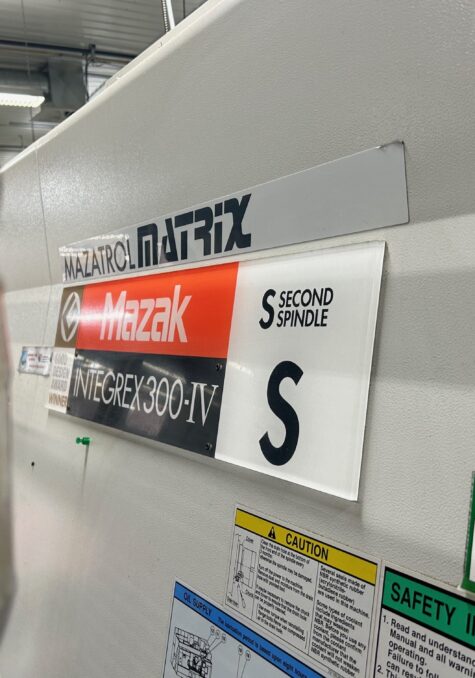

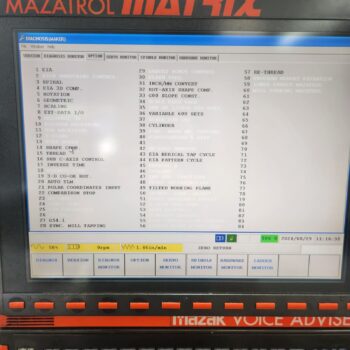

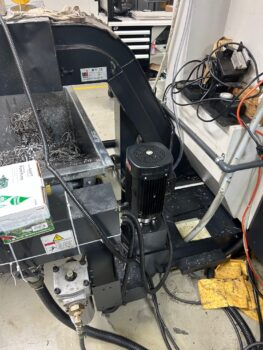

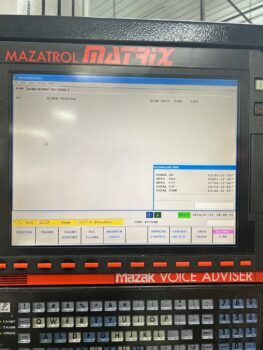

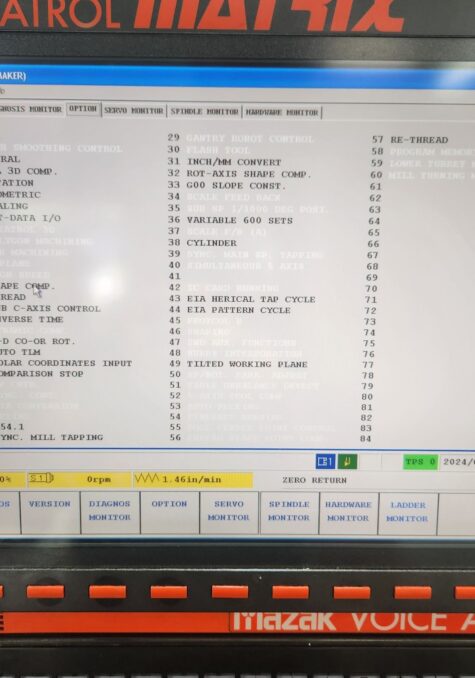

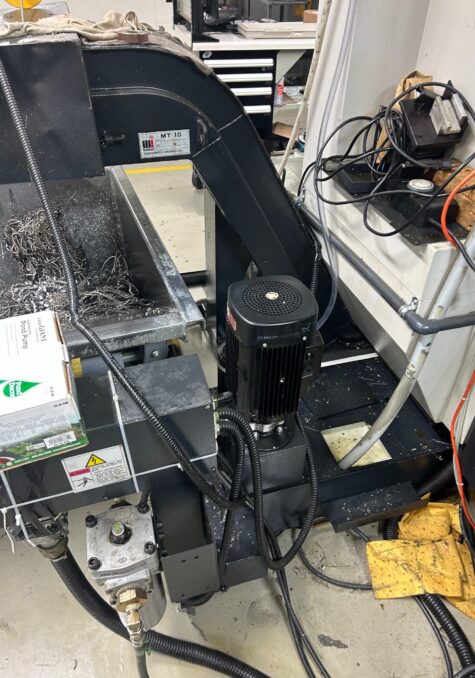

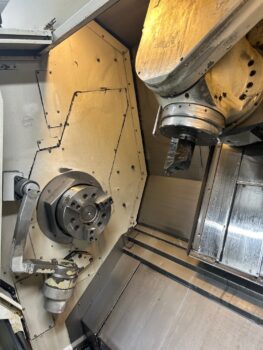

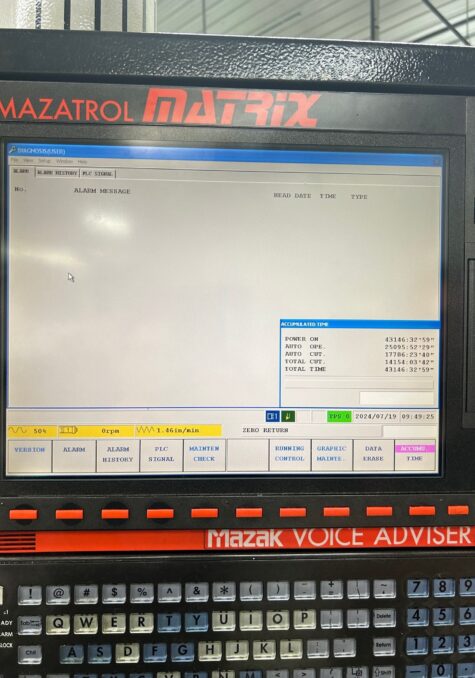

Mazak Integrex 300S IV Used CNC Lathe 2007 – 32011119

---

Tour CNC

Year

2007

Travel

AXIS TRAVELS:
B-Axis.................................. 225 degrees
(0.0001 degree increments)
Y-Axis.................................. +/- 4.53"
X-Axis.................................. 24.8"
Z-Axis 60" ............................. 62.41"
Second Headstock W-Axis 60"............. 60.24"

AXIS RAPID RATES:
Y-Axis.................................. 1024 IPM
X-Axis.................................. 1496 IPM
Z-Axis.................................. 1496 IPM
Second Headstock W-Axis................. 1181 IPM
C-Axis.................................. 555 RPM

Maximum Swing........................... 30"
NOTE: Tool eye body may limit max. swing.
Maximum Swing using Y-Axis.............. 26"-30"
Maximum Swing over Cross Slide.......... 30"
Maximum Cutting Diameter: Chucking...... 30"
Maximum Cutting Length 60".............. 60"
Maximum Distance Between Chuck Faces 60" 60.2"

Size

Spindle

Comments

Maximum Swing........................... 30"
NOTE: Tool eye body may limit max. swing.
Maximum Swing using Y-Axis.............. 26"-30"
Maximum Swing over Cross Slide.......... 30"
Maximum Cutting Diameter: Chucking...... 30"
Maximum Cutting Length 60".............. 60"
Maximum Distance Between Chuck Faces 60" 60.2"

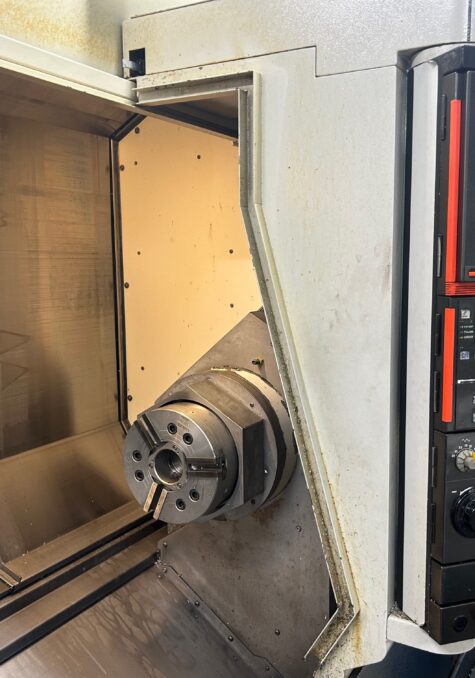

MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose............................ A2-8
Spindle Bore............................ 3.46"
Maximum Bar Work.... ................... 3.0" Dia.
Spindle Speed........................... 4,000 RPM
Spindle Index (Programmable)............ 0.0001 Deg.
Spindle Horsepower (Cont./30 Mins.).....30/40 HP (AC)
Spindle Torque.......................... 534 ft-lbs.

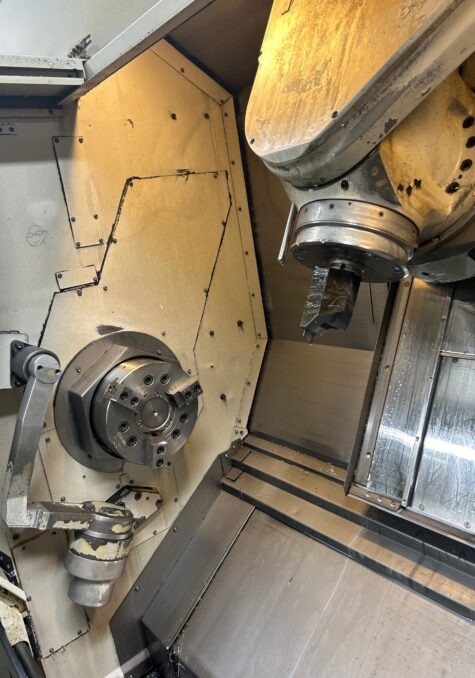

SECOND SPINDLE SPECIFICATIONS (R)
Spindle Nose............................ A2-8
Spindle Bore............................ 3.46"
Spindle Speed........................... 4,000 RPM
Spindle Index (Programmable) ........... 0.0001 Deg. C-Axis
Spindle Horsepower (Cont./30 Min.)...... 26/34.6 HP (AC)
Spindle Torque.......................... 368.8 ft-lbs


Magazine Capacity....................... 40 Tools
Tool Selection Method................... Random
Tool to Tool ATC Time................... 1.3 Sec.
Max. Tool Dia. w/All Pockets Full....... 3.54"
Max. Tool Dia. w/Adjacent Pockets Empty. 4.92"
Max. Tool Length (From Gage-Line)....... 15.75"
Maximum Tool Weight..................... 22 lbs.
ATC Tool Shank.......................... KM63

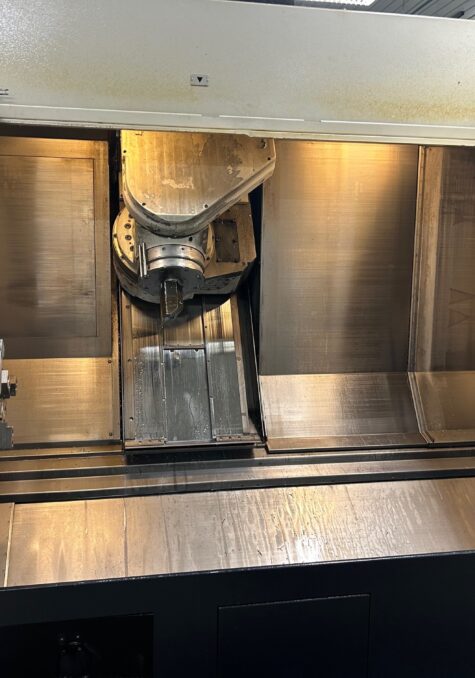

Rotary Tool Spindle Speed............... 12,000 RPM
Rotary Tool Spindle Horsepower (20%ED).. 25 HP (AC)
Rotary Tool Torque (20%ED).............. 88.2 ft-lbs.
Maximum Face Mill....................... 3.937"
Maximum End Mill........................ 1.25"
Maximum Drill........................... 1.25"
Maximum Tap............................. 1-8 UNC

AXIS TRAVELS:
B-Axis.................................. 225 degrees
(0.0001 degree increments)
Y-Axis.................................. +/- 4.53"
X-Axis.................................. 24.8"
Z-Axis 60" ............................. 62.41"
Second Headstock W-Axis 60"............. 60.24"

AXIS RAPID RATES:
Y-Axis.................................. 1024 IPM
X-Axis.................................. 1496 IPM
Z-Axis.................................. 1496 IPM
Second Headstock W-Axis................. 1181 IPM
C-Axis.................................. 555 RPM

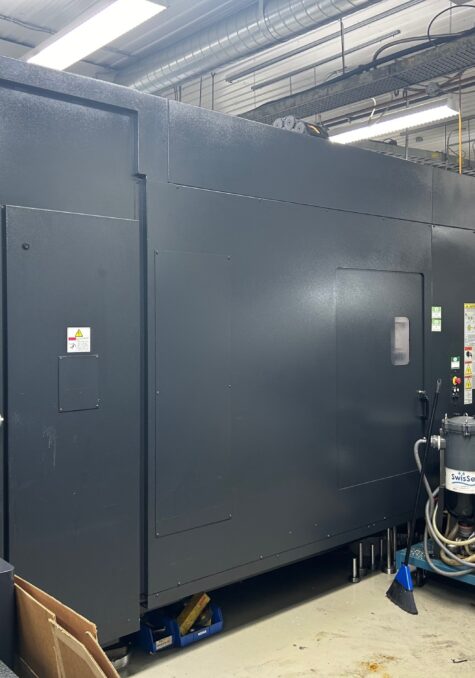

GENERAL SPECIFICATIONS:
Floor Space (WxL) 60" .................. 201.2" x 92.24"
Machine Height.......................... 114.6"
Total Power Required (Machine Only)..... 83.5 KVA
NOTE: Actual Machine Main Transformer
KVA Rating Will be Greater.
Air Requirements........................ 72.5 PSI/24.7 CFM
Machine Weight 60"...................... 26840 lbs.

---

Price request
