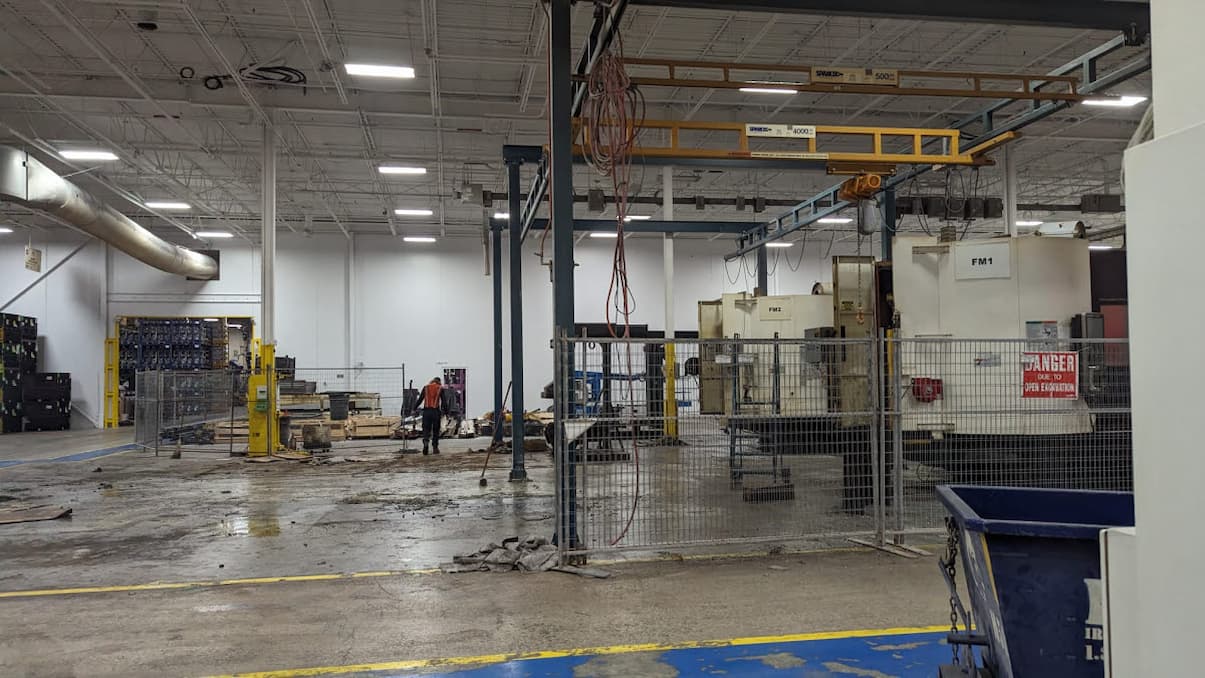

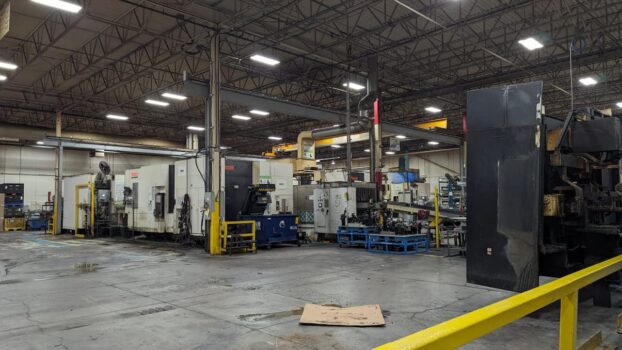

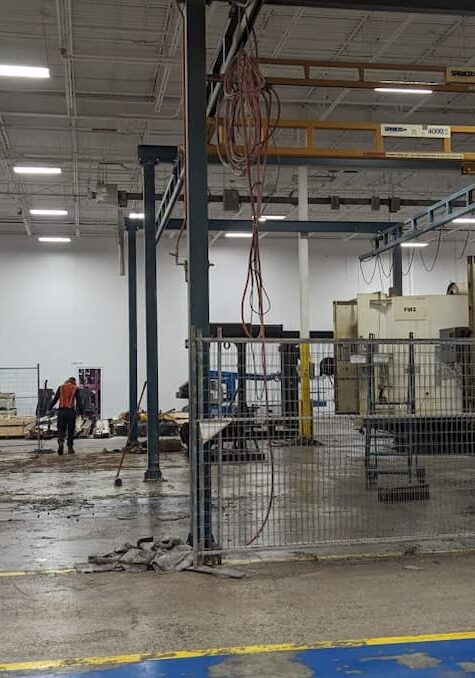

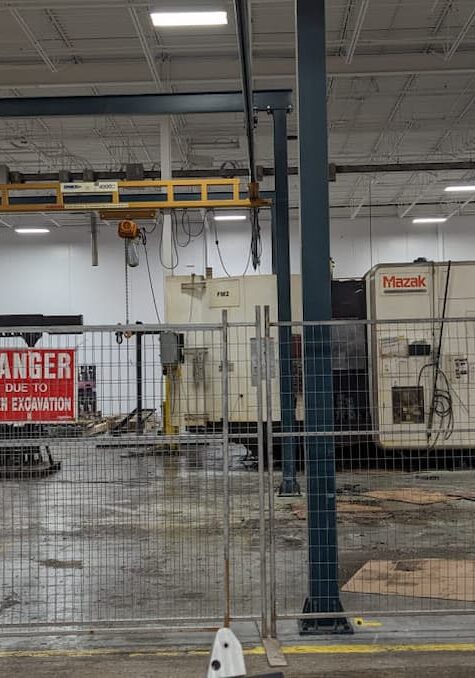

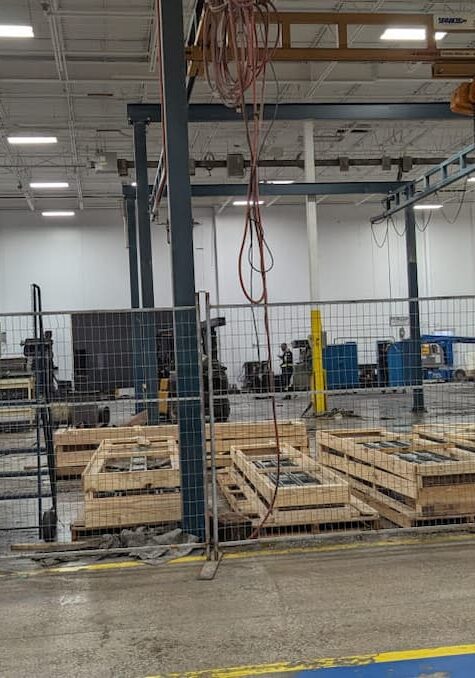

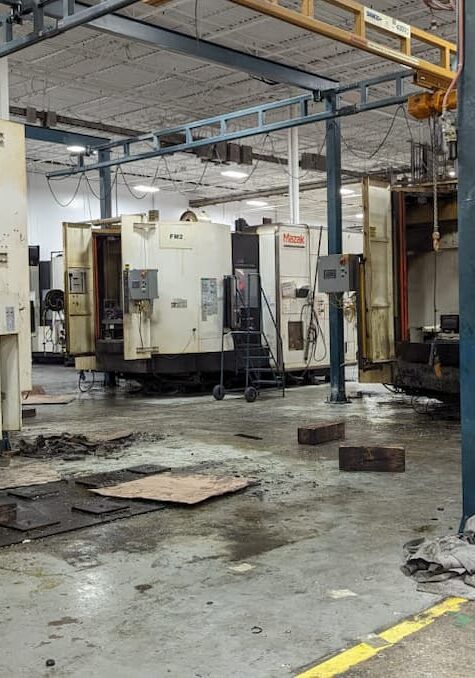

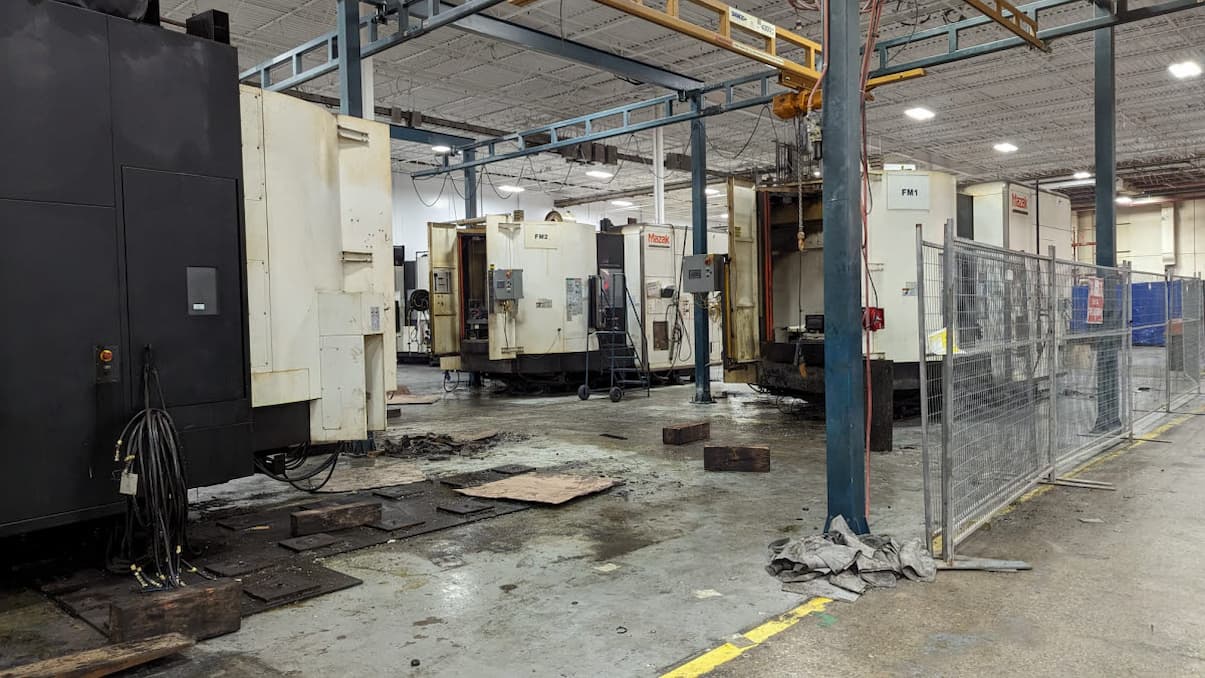

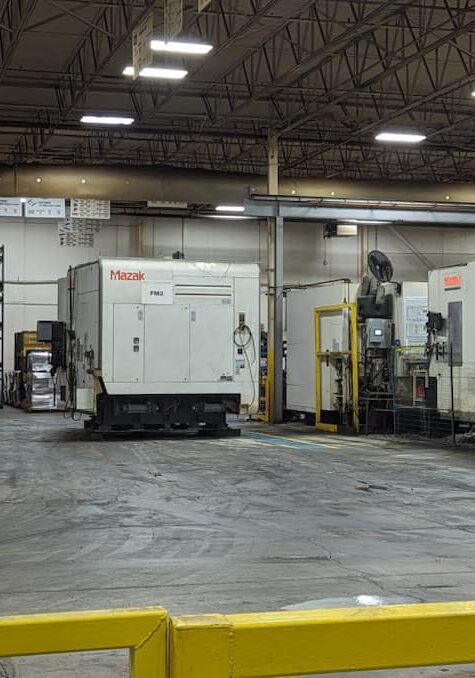

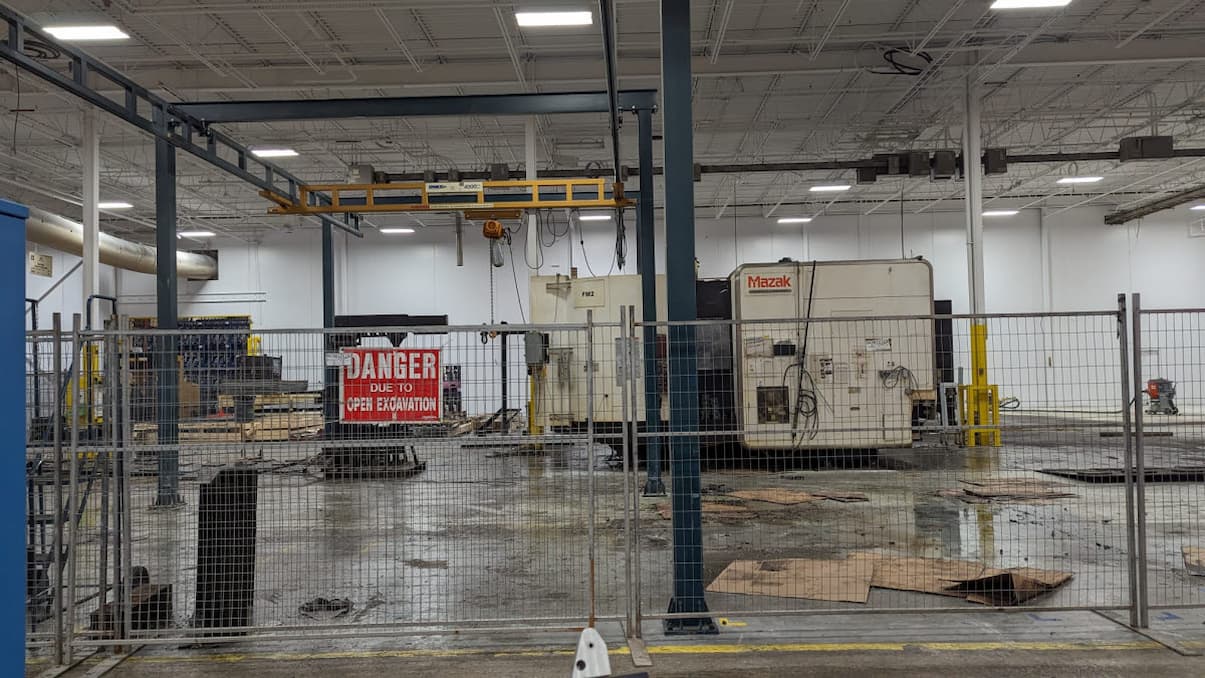

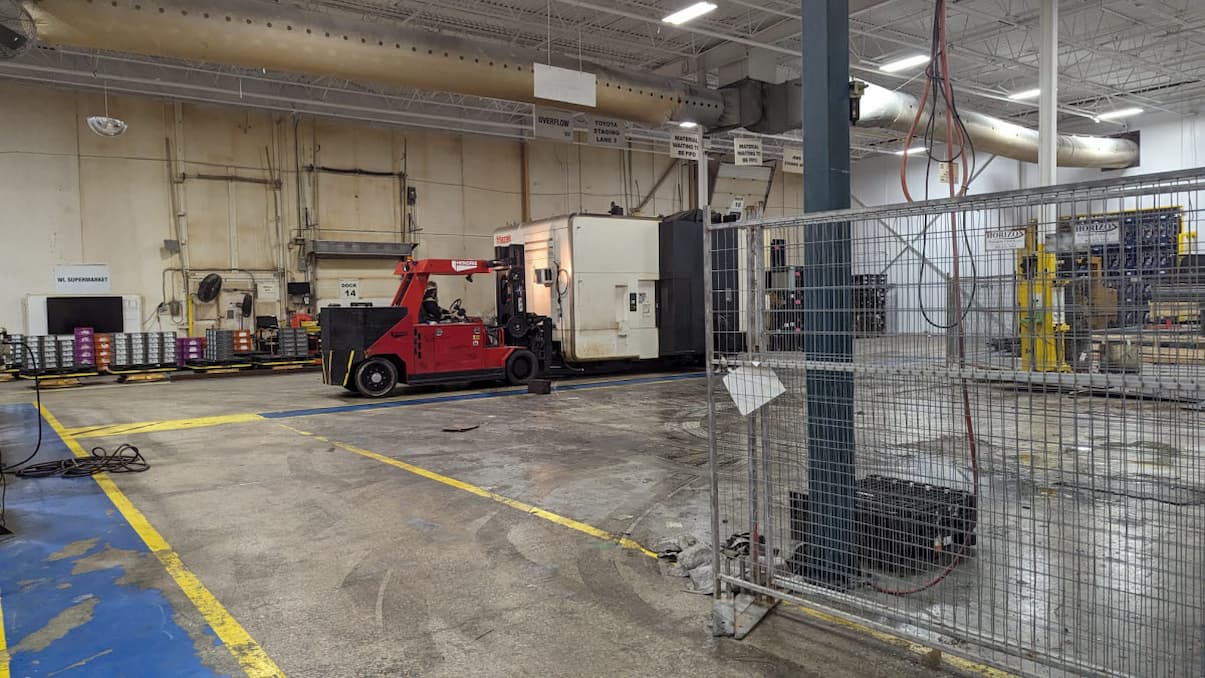

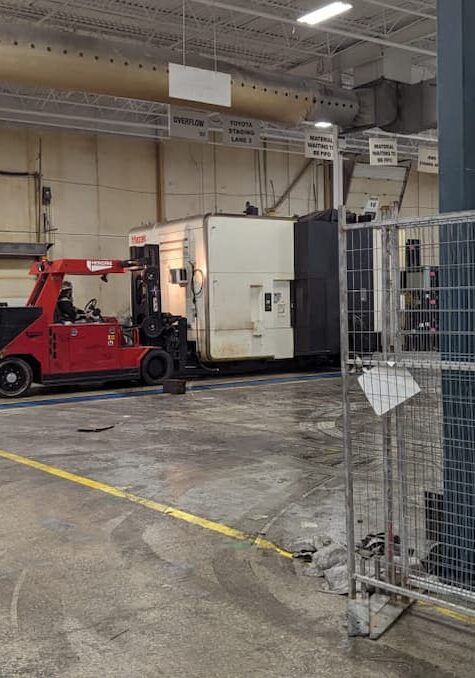

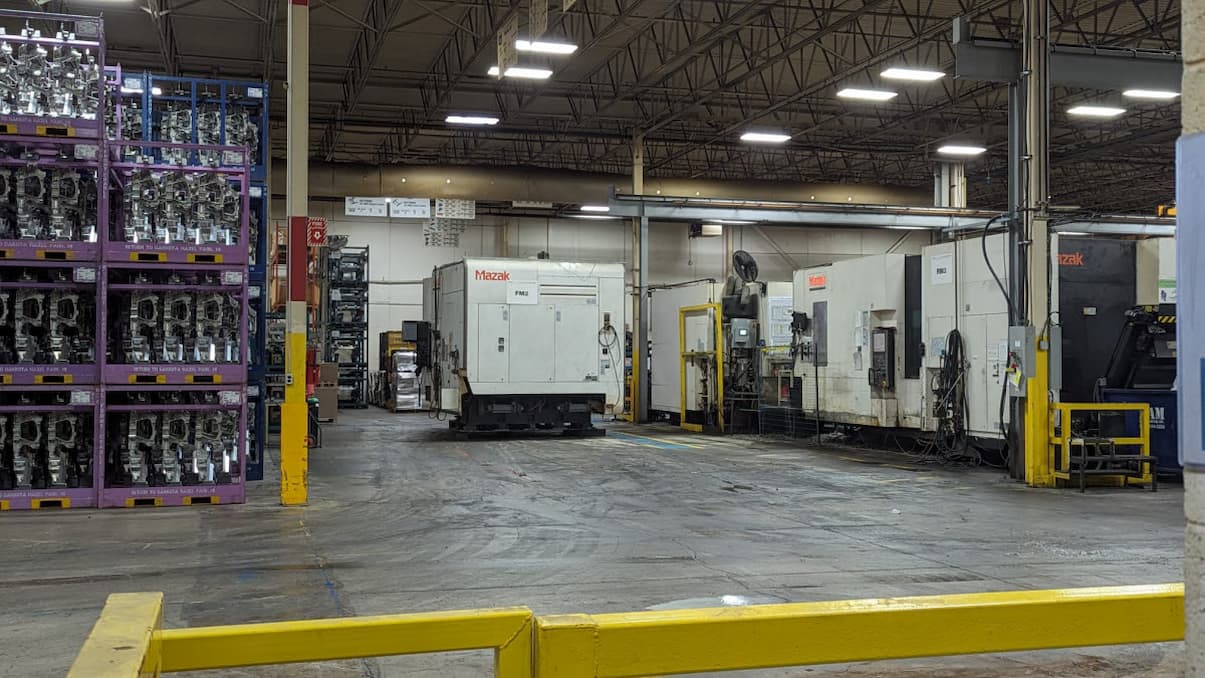

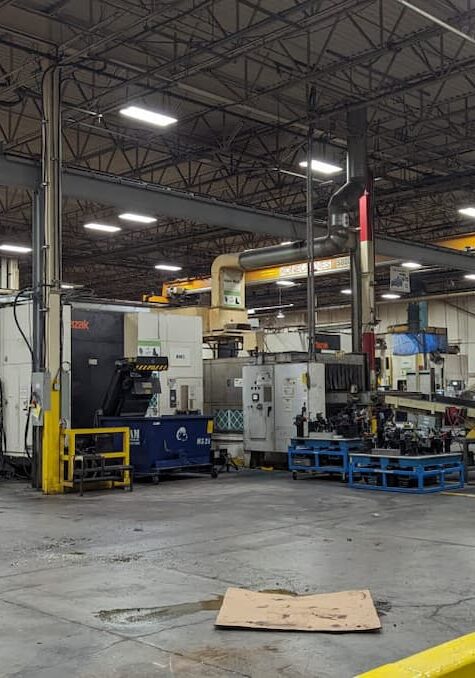

Mazak HCN 8800-II Used Horizontal Machining Center 2013 – 3201067

---

Fraiseuse CNC / Centre d’usinage

Year

2013

Travel

X-Axis Travel 55.12”
Y-Axis Travel 47.24”
Z-Axis Travel 52.17”

Size

Spindle

Comments

Specifications

Pallet Size 31.5” x 31.5”
Pallet Load 4850 lbs
Pallet Indexing .001 Degree / Full 4th
Pallet Change Time 13 sec
Table Index Time 3.2 sec / 90 Degree
Max Workpiece Diameter 57.09”
Max Workpiece Height 57.09”
X-Axis Travel 55.12”
Y-Axis Travel 47.24”
Z-Axis Travel 52.17”
Distance from the Spindle End to the Pallet Center 3.94” – 56.10”
Distance from the Spindle Center to the Pallet Top 3.94” – 51.18”
Spindle Taper No. 50
Spindle Speed 10,000 RPM
Main Motor 50HP
Rapid Travel 2362 IPM
Max. Cutting Feed Rate 2362 IPM
No. of Tool Pockets 80 ATC
Tool Shank CAT-50
Max Tool Diameter for 80 ATC 4.92” / 9.84” w/o Adjacent
Max Tool Length / Weight 24.80” / 66 lbs
Chip to Chip Time 5.0 – 5.4 sec
Machine Dimensions 275” x 152” x 146”
Machine Weight 66,138 lbs


Equipment

Mazatrol Matrix
80 ATC
Full 4th Axis
Chip Conveyor

---

Price request
