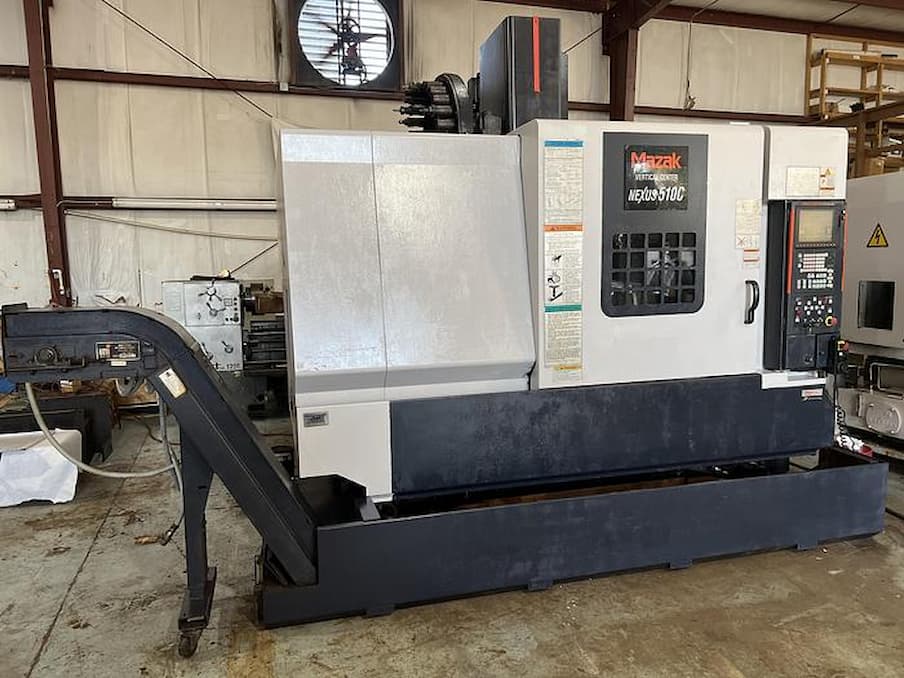

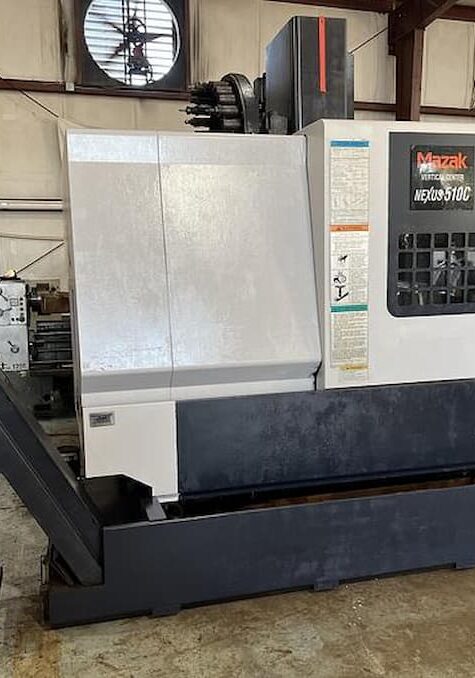

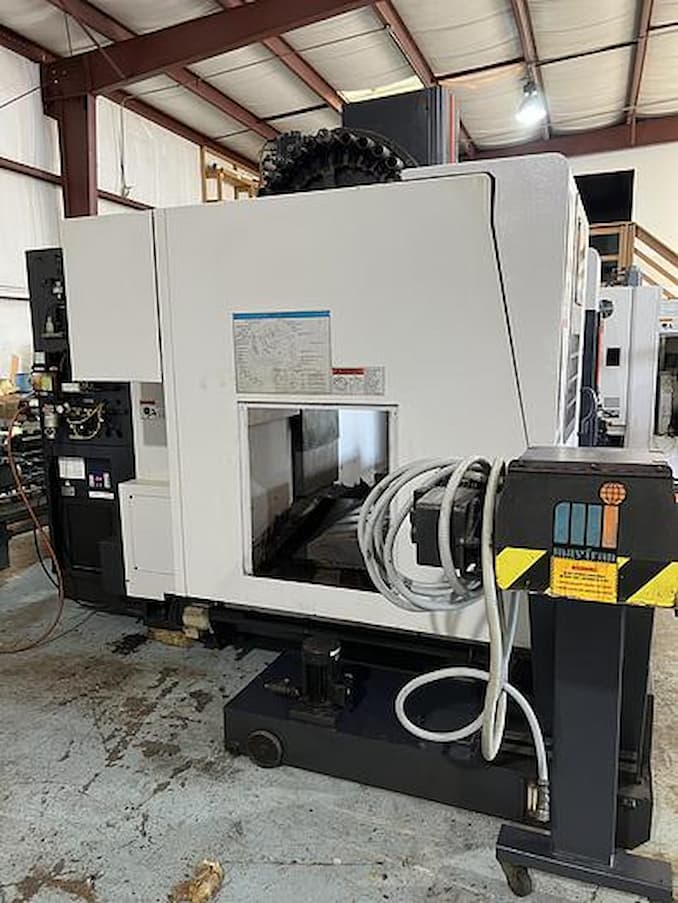

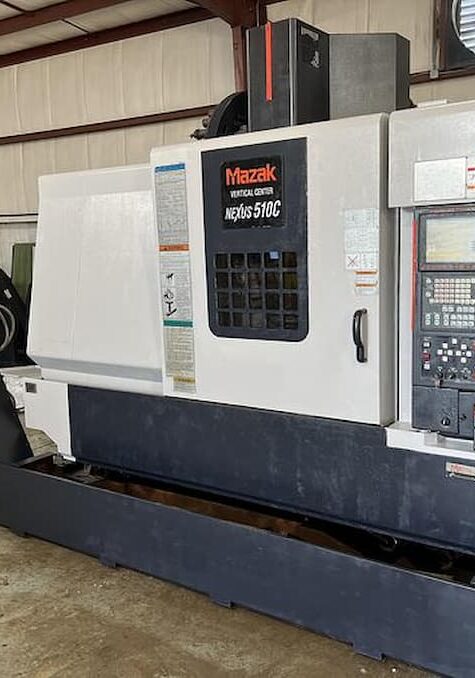

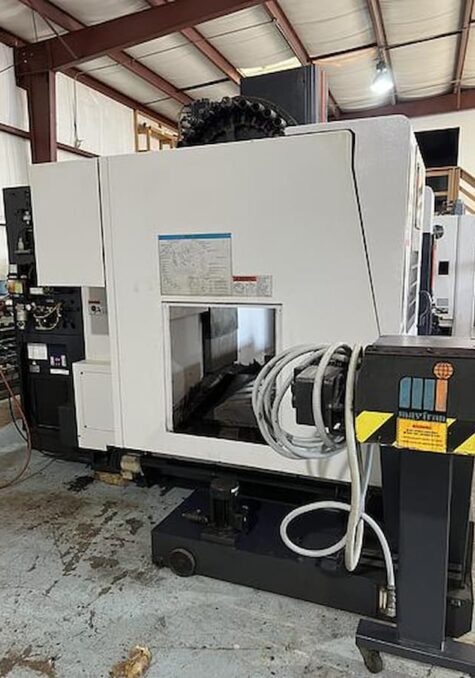

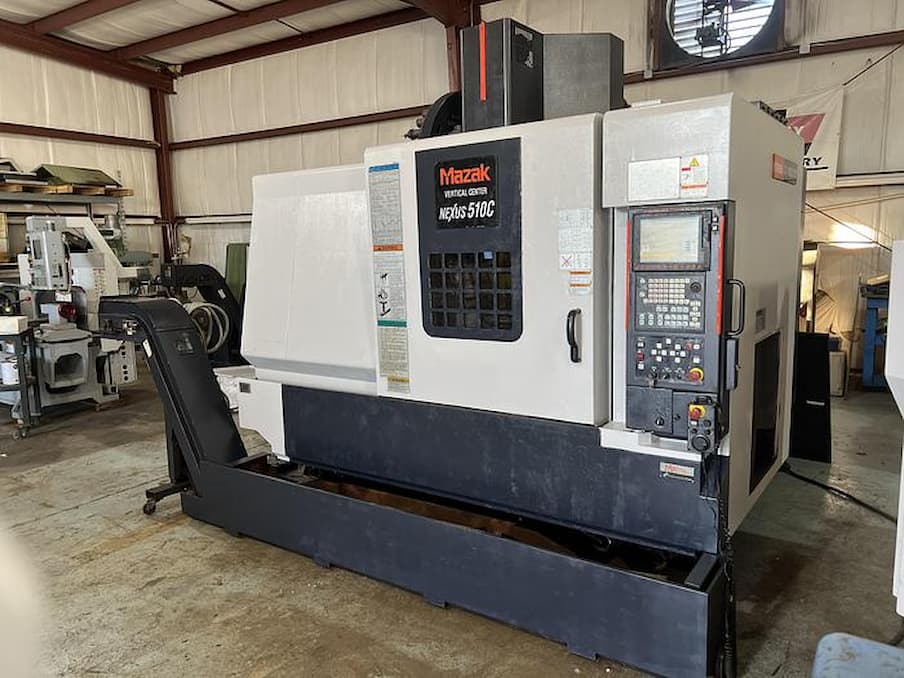

Mazak Vertical Machining Center VCN 510C Used 2004 – 3201019
Fraiseuse CNC / Centre d’usinage
Year
2004
Size
Controller
Mazatrol 640M Nexus Control
Comments
Specifications

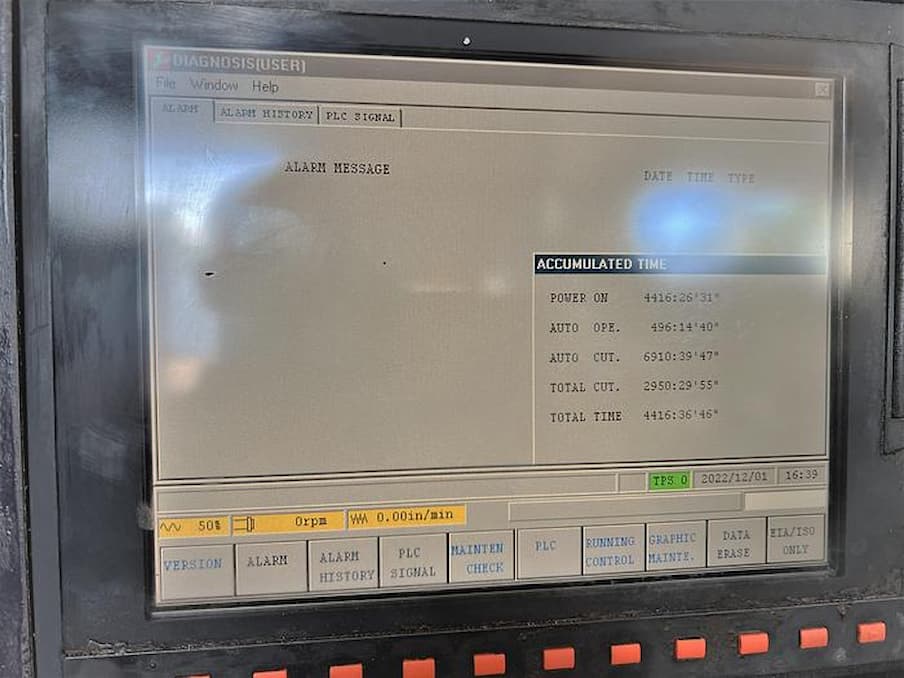

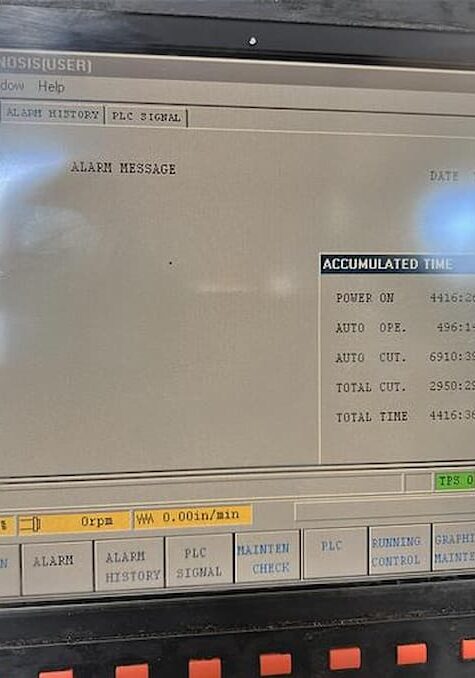

Machine Control Mazatrol 640M Nexus Control

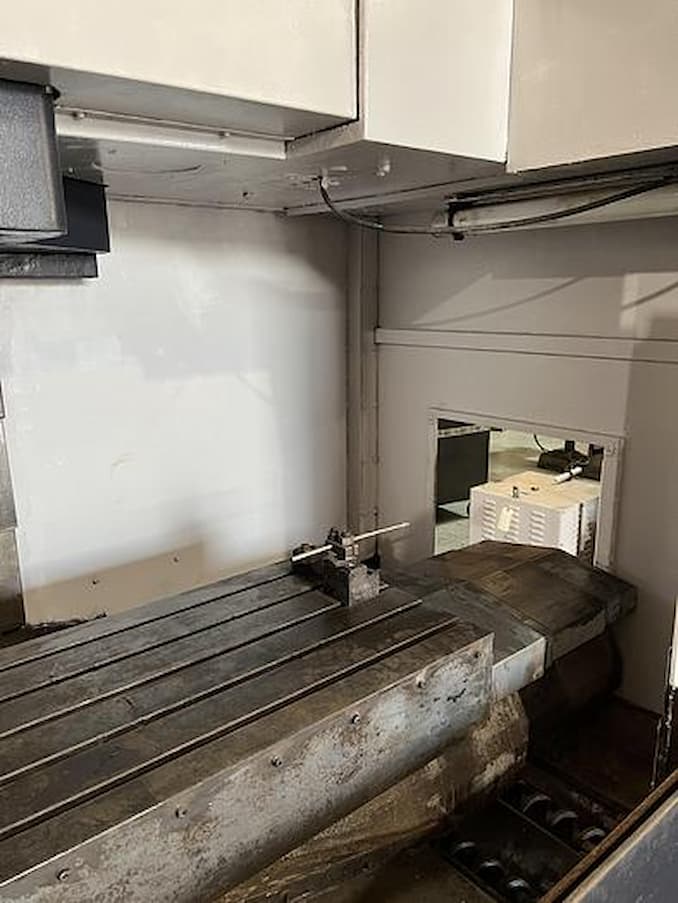

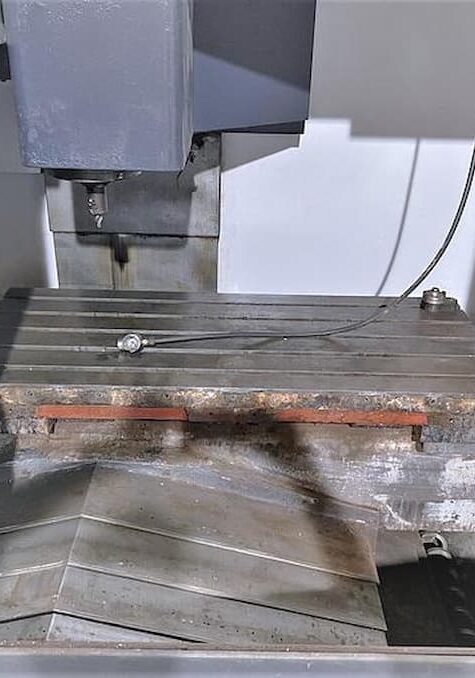

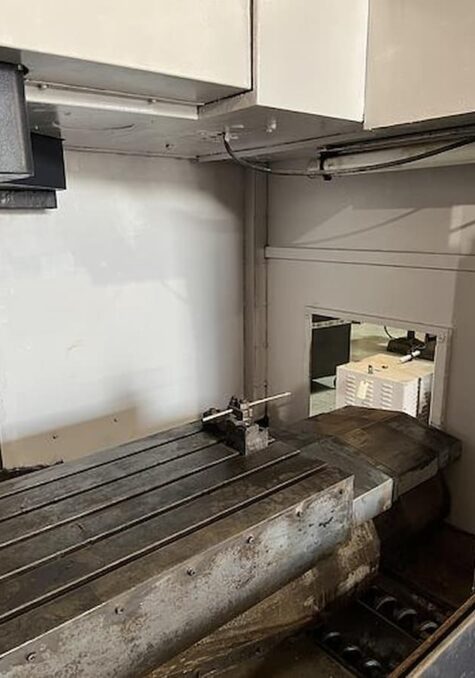

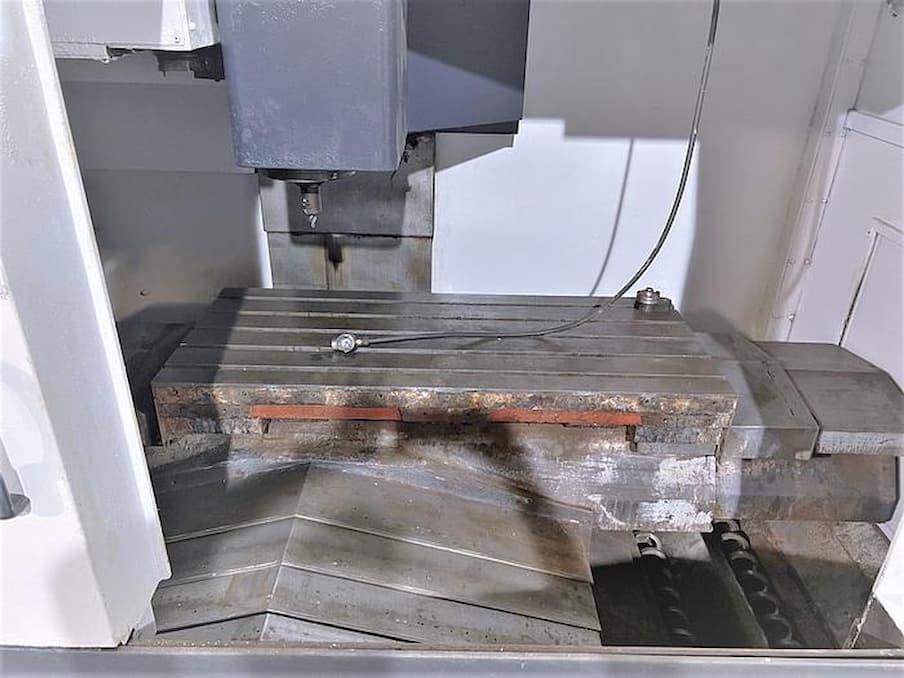

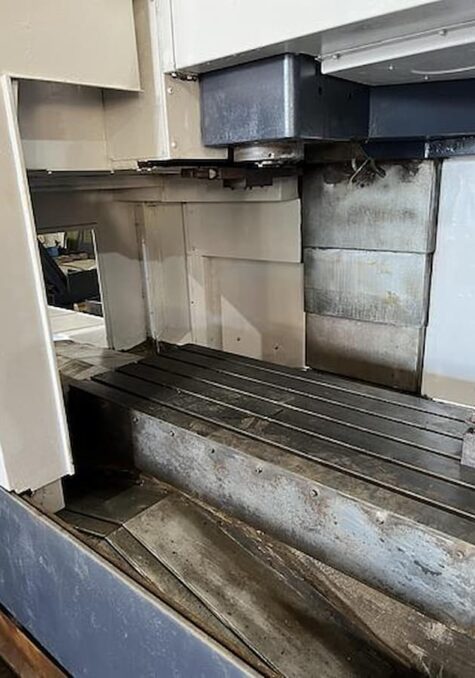

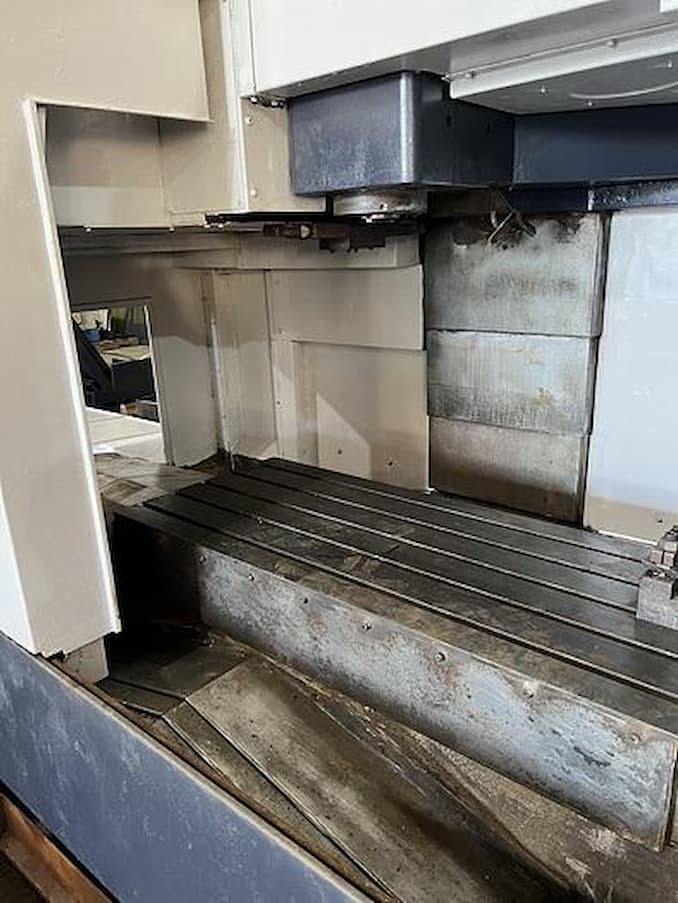

Table Size 51.18" x 21.65"
Maximum Table Load 2,646 lbs
X-Axis Travel 41.3"
Y-Axis Travel 20"
Z-Axis Travel 20"
Spindle Taper CAT 40
Spindle Speed 12,000 RPM
Spindle Motor 25 HP
Distance Spindle Nose to Table Top 5.9" - 25.98"

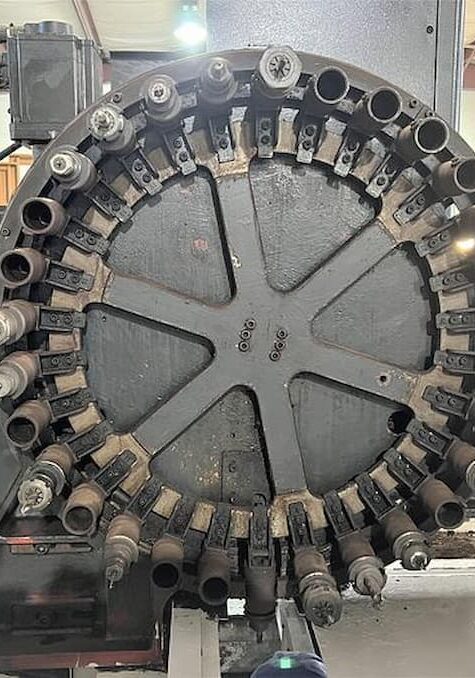

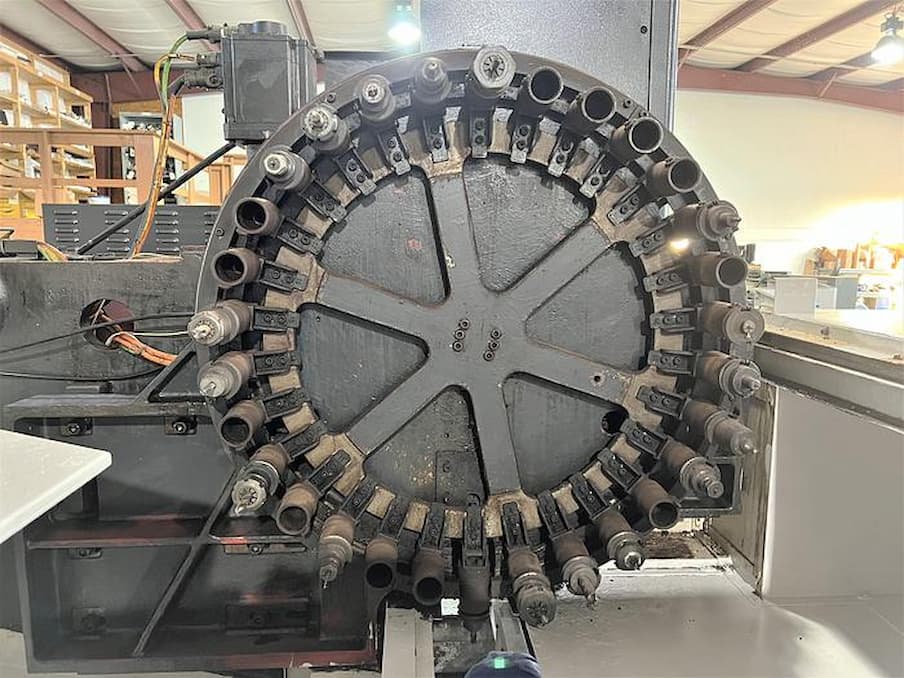

Tool Magazine Capacity 30 Position ATC
Rapid Traverse Rates 1,417 IPM
Machine Dimensions LxWxH 113"x111"x113"
Machine Weight 15,180 lbs
Description

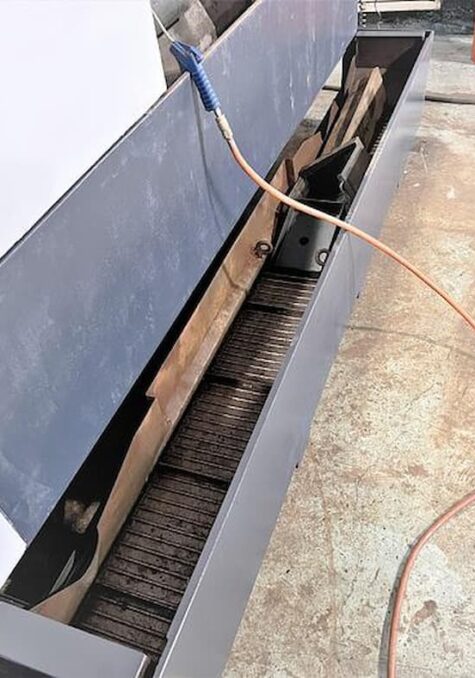

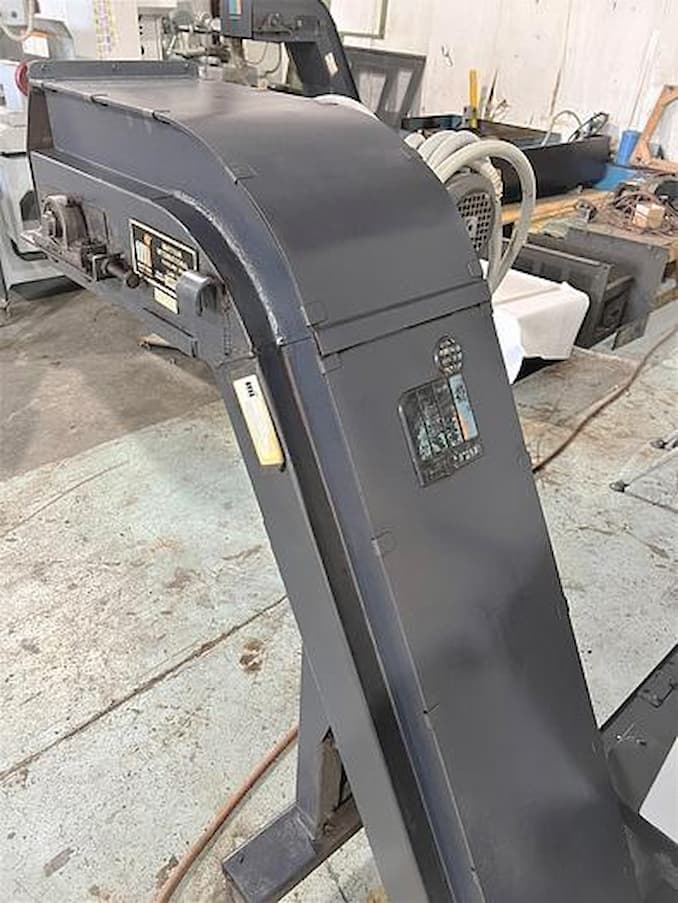

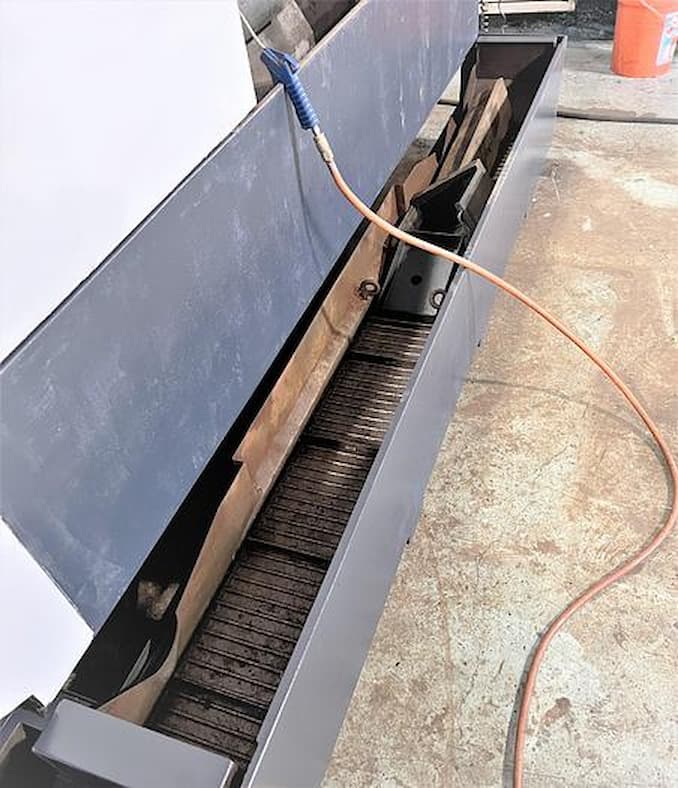

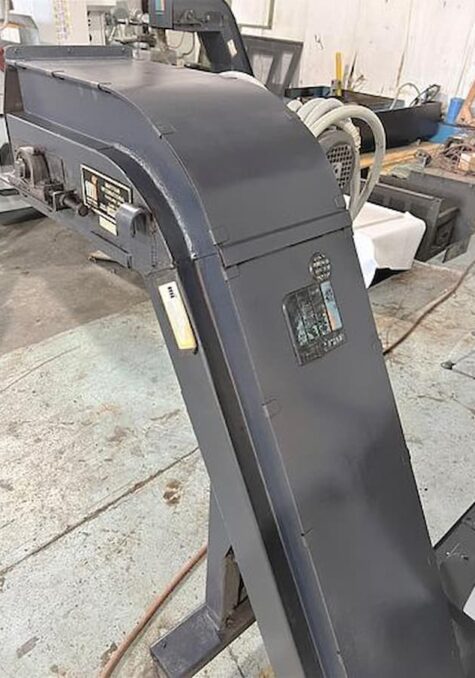

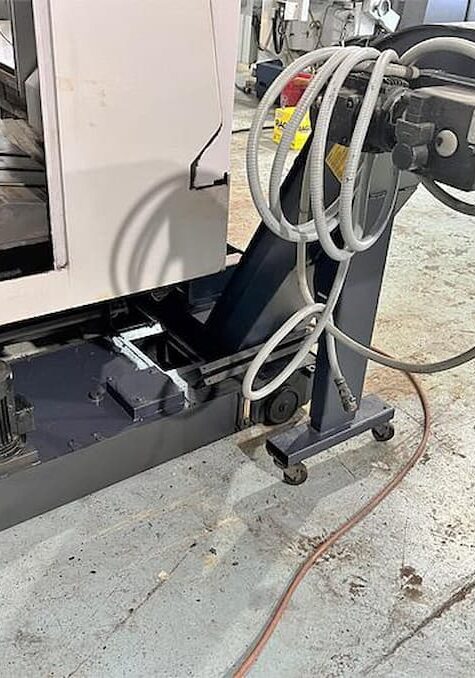

Chip Conveyor - Mayfran Belt Type

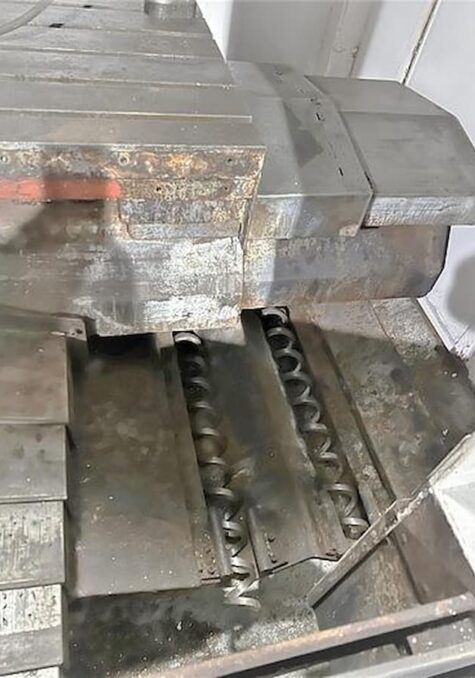

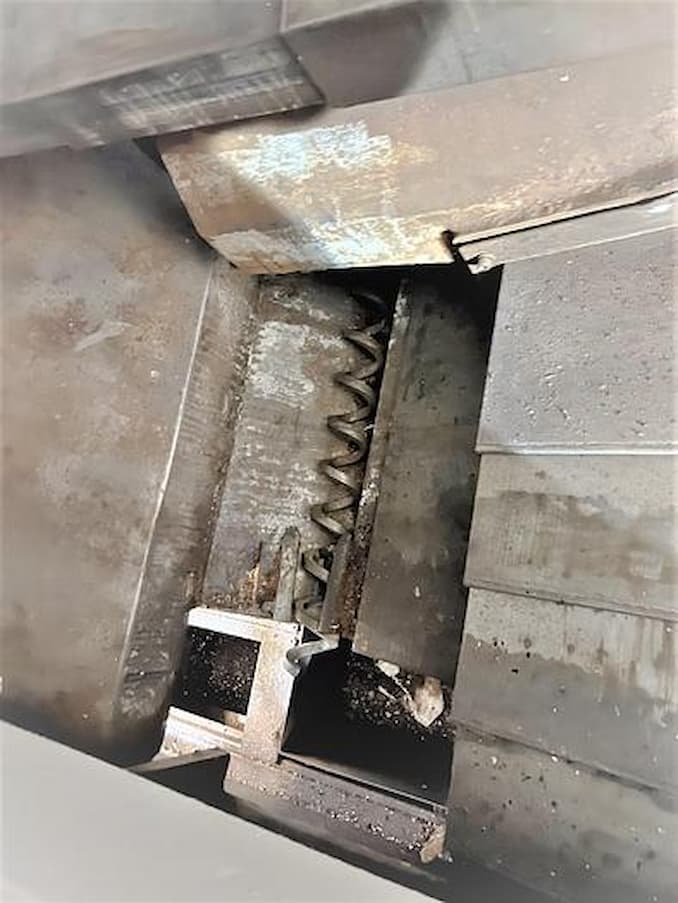

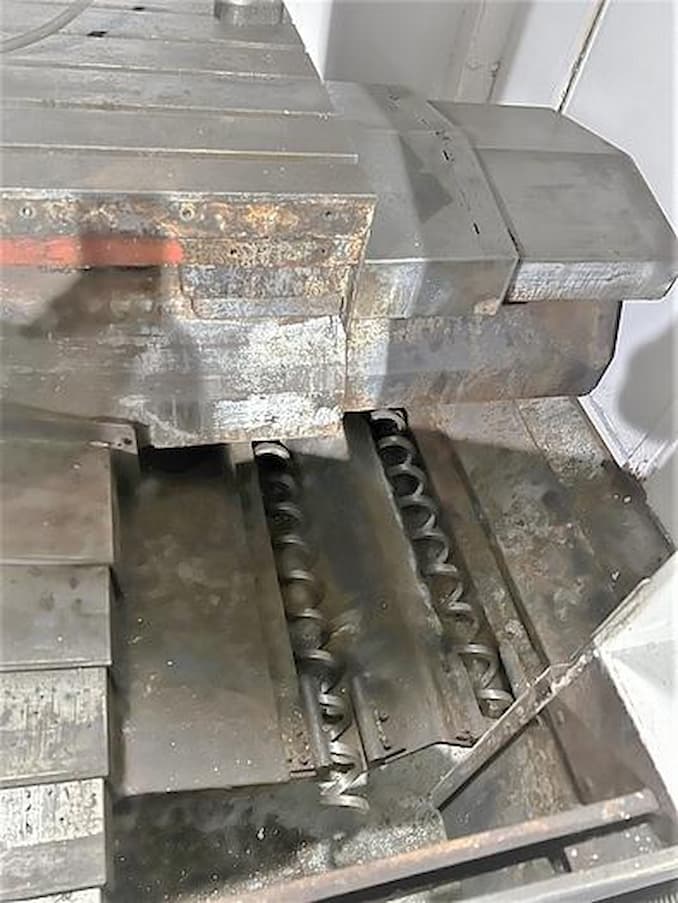

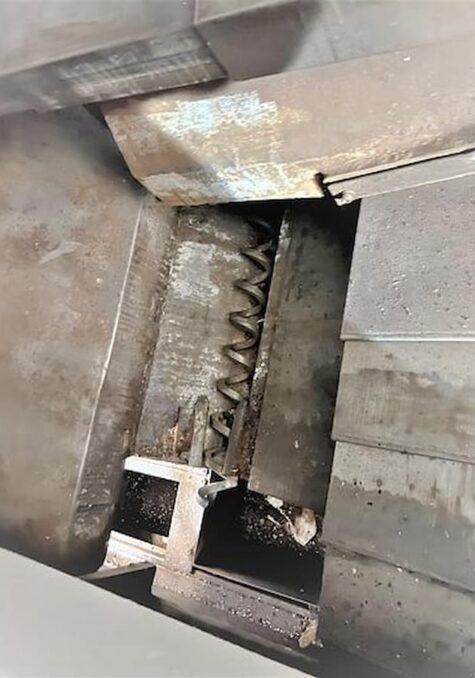

(3) Auger Chip Flow System

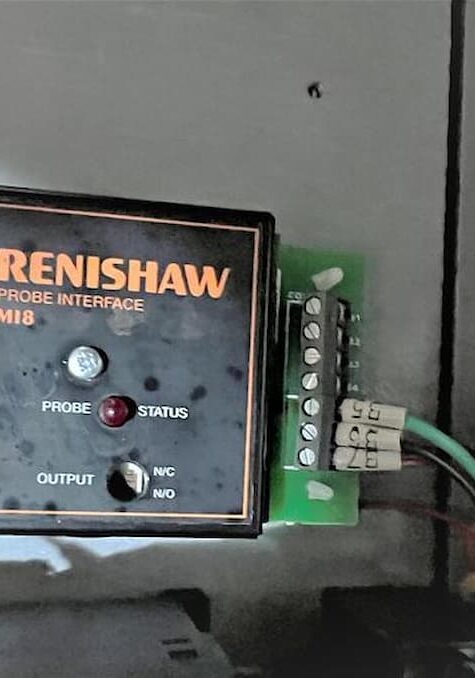

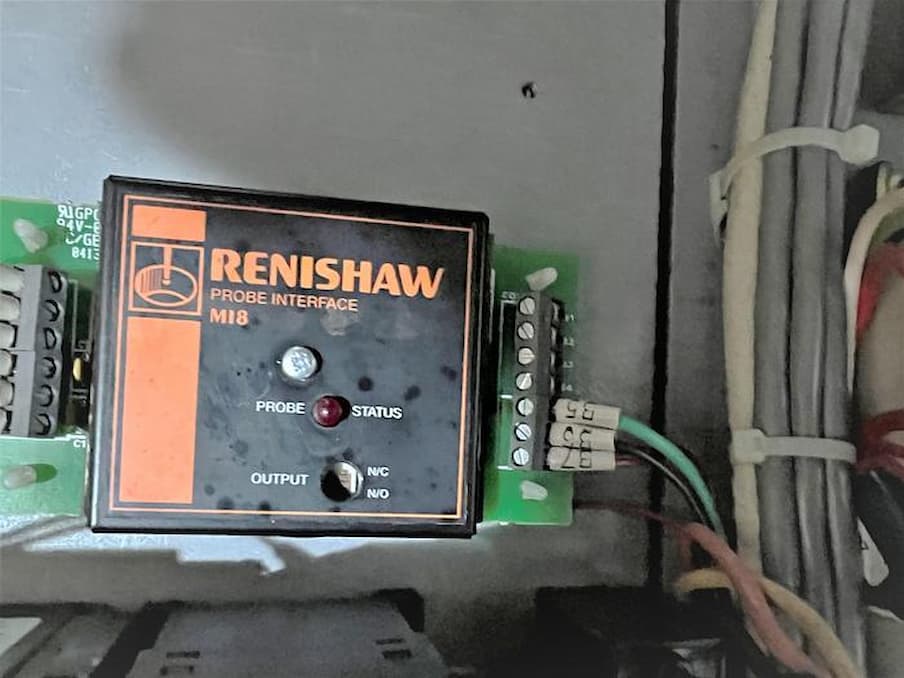

Renishaw MI8 Tool Probe Interface with Renishaw TS27R Probe Unit (probe is damaged and needs new stylus)
Remote Jog Handle

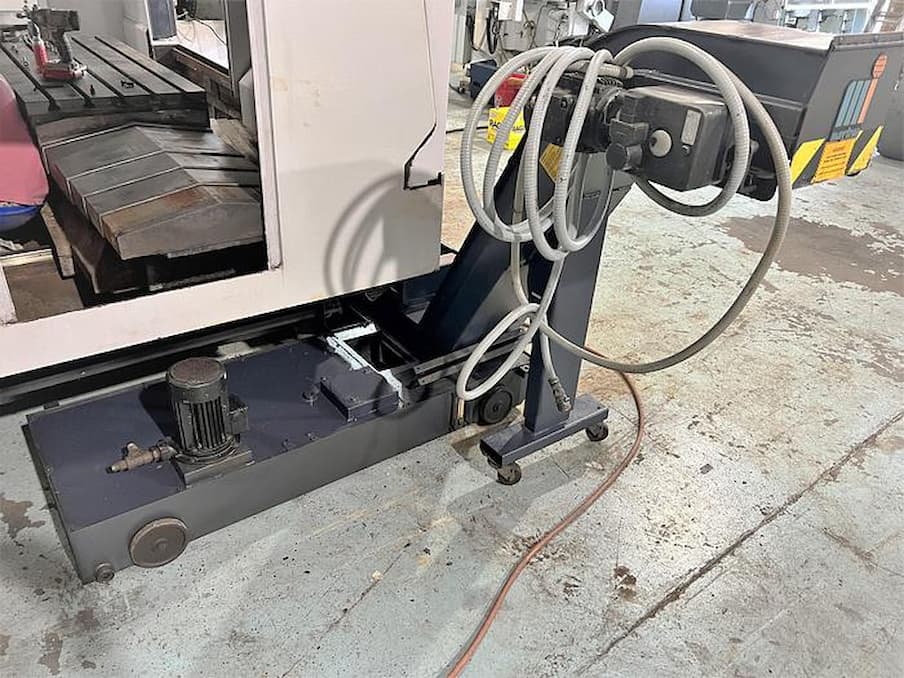

Coolant System with Tank and Pump
Mazak Tapping/Boring Tornado
EIA/ISO Input Function
Backround Toolpath Check
Adaptive Feedrate Control
Tool Life Monitoring
Multi Tap Transformer
USB Port Interface
RS 232 Port Interface
(18) CAT 40 Tool Holders
All Available Manuals
