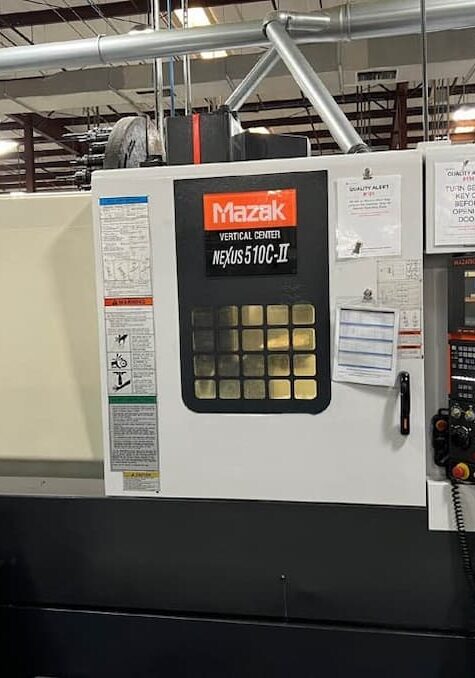

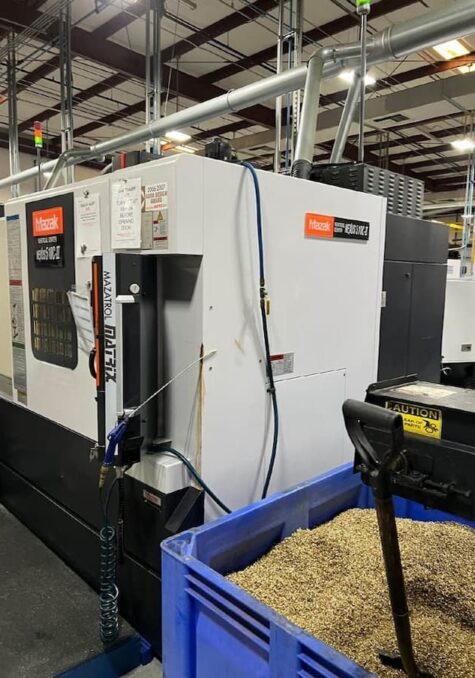

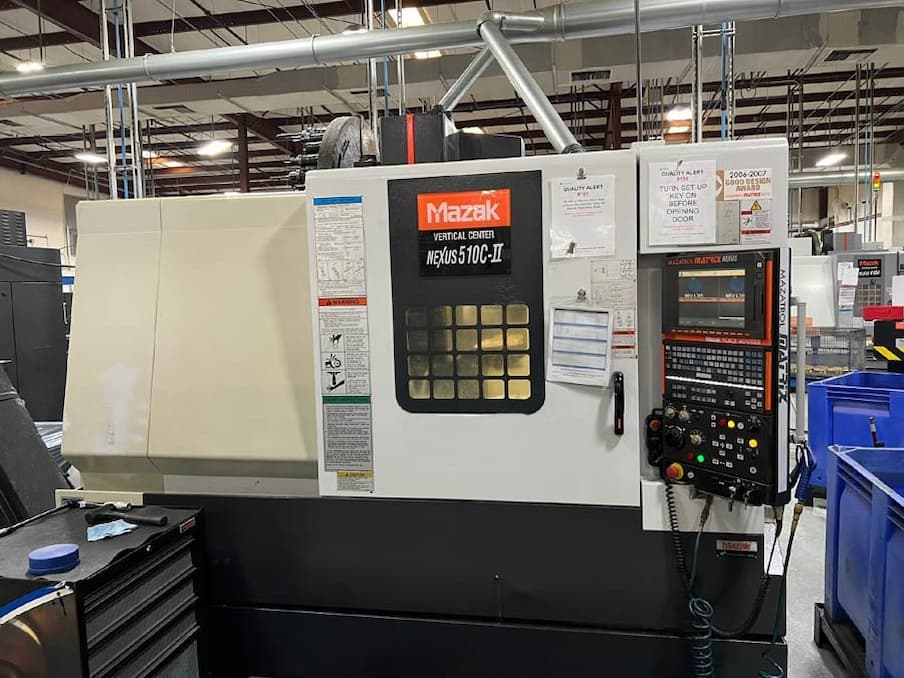

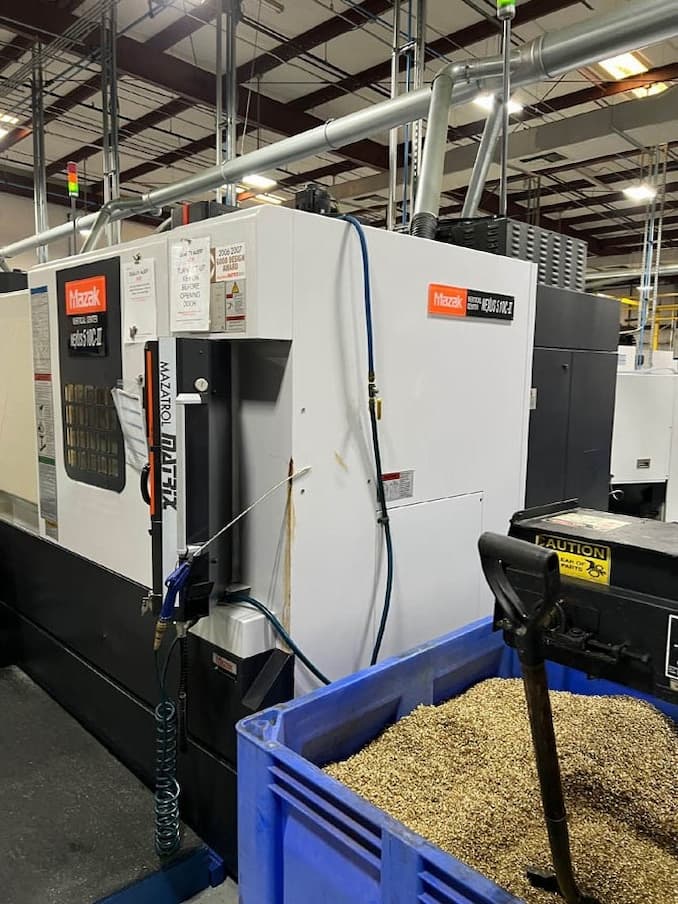

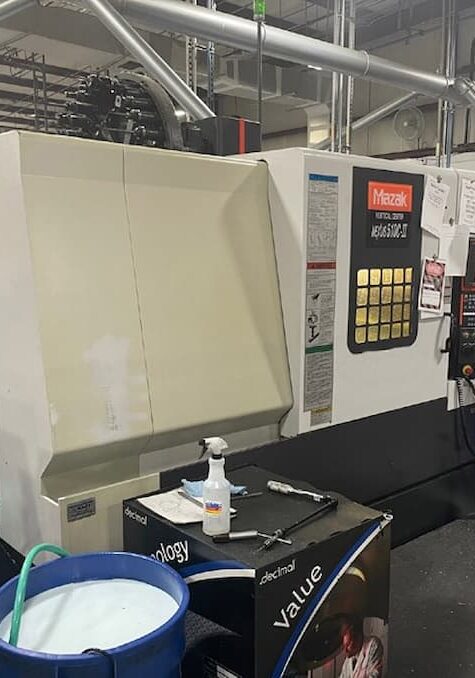

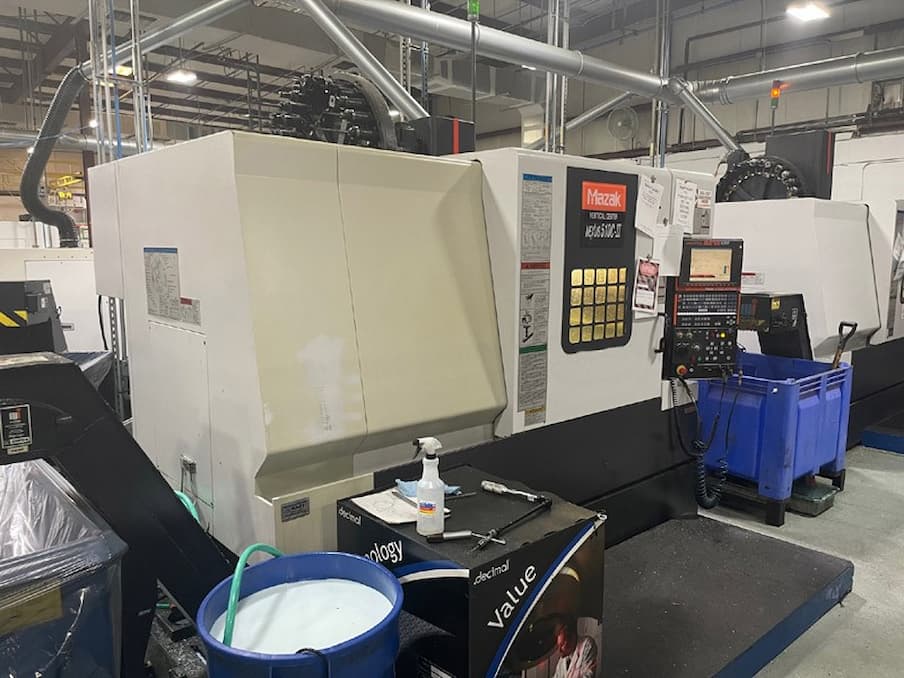

Mazak Vertical Machining Center VCN 510 Used 2007

---

Fraiseuse CNC / Centre d’usinage

Year

2007

Size

Comments

Specifications

Table Size................................. 51.1" x 21.6"

X-Axis Stroke.............................. 41.3"

Y-Axis Stroke.............................. 20.0"

Z-Axis Stroke.............................. 20.0"

Spindle Face to Table Surface(Min/Max)..... 5.91"/25.98"

Maximum Table Weight Capacity.............. 2,646 LBS

Spindle Speed.............................. 12,000 RPM

Spindle Motor (5MIN/10MIN/30MIN/CONT.)..... 25/20/15/10.2 HP

Spindle Taper ............................. #40

Rapid Traverse (X,Y,Z)..................... 1417.3 IPM

Number of Tools............................ 30

Maximum Tool Diameter...................... 3.15"

Maximum Tool Diameter (Adjacent Pockets)... 4.92"

Maximum Tool Length........................ 13.78"

Maximum Tool Weight........................ 17.64 LBS.

Tool Select Method......................... RANDOM

Tool Change Time (Chip to Chip)........ 2.9 SEC (1,000 RPM)

........ 5.8 SEC (12,000 RPM)

Power Supply (5 MIN/CONT).................. 41.6/25.9 Kva

Air Supply................................. 72.52"

Machine Height............................. 111.93"

Floor Space................................ 113.3" X 111.6"

Machine Weight............................. 14,616 LBS

Equipped With

Mazatrol Matrix Nexus Control

Renishaw Tool Probe

Renishaw Auto Tool Length Measurement – TS-27R

Chip Conveyor

---

Price request
