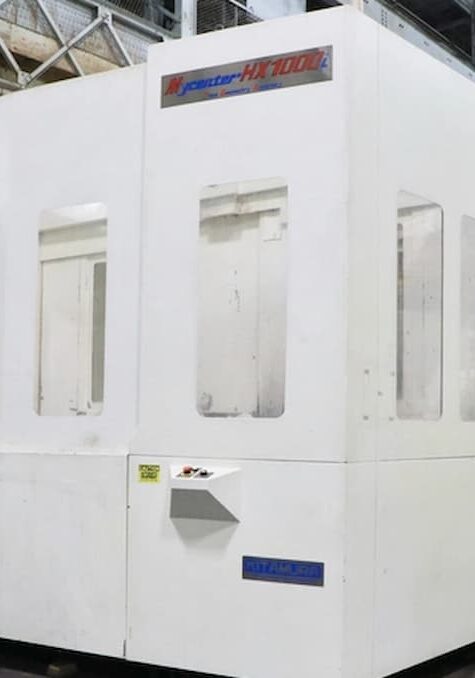

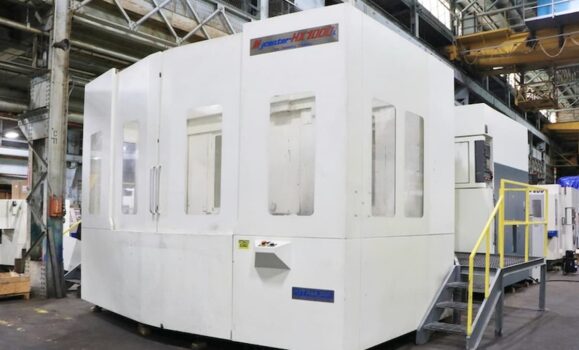

Kitamura MYCENTER HX1000I Used Horizontal Machining Center 2010 – 3201063

---

Fraiseuse CNC / Centre d’usinage

Year

2014

Size

Comments

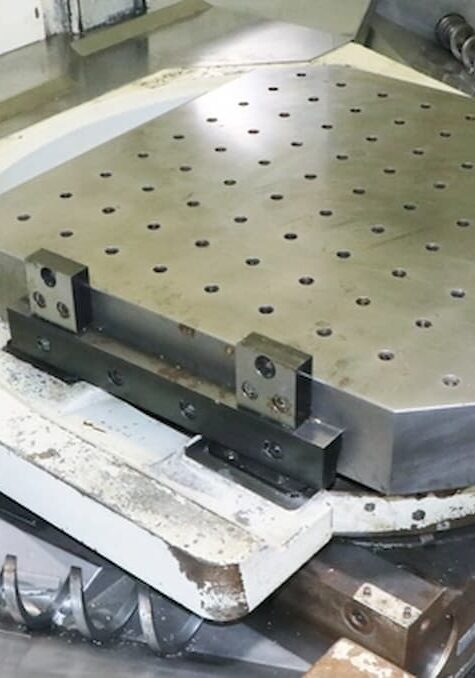

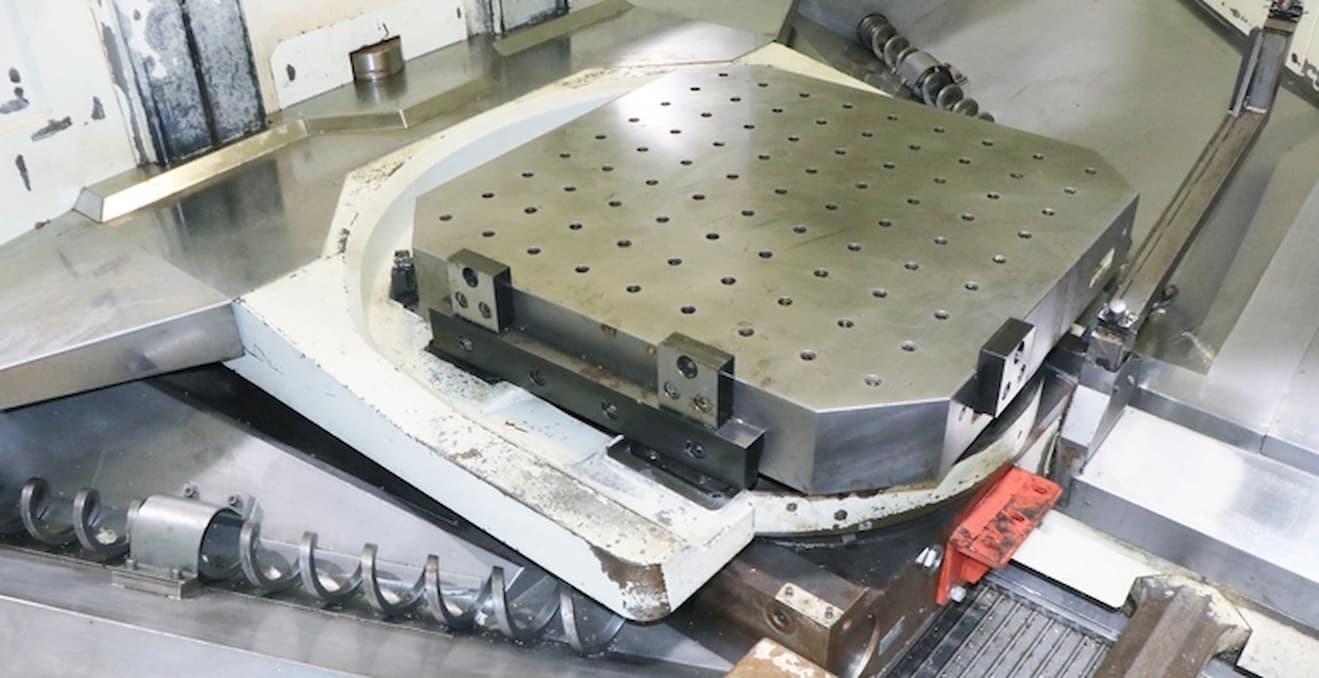

PALLET WIDTH, 39.37"
PALLET LENGTH, 39.37"
PALLET INDEXING, FULL 4TH
NUMBER OF PALLETS, 2
MAX WORKPIECE WEIGHT, 6,600 lb
X-AXIS TRAVEL, 80.31"
Y-AXIS TRAVEL, 51.97"
Z-AXIS TRAVEL, 53.94"

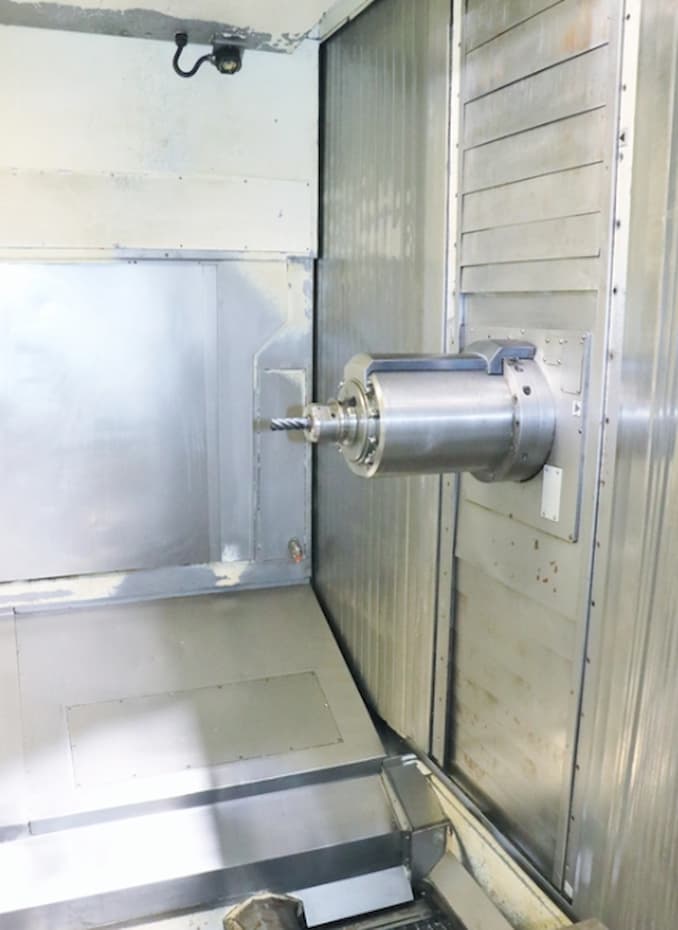

SPINDLE SPEED, 8,000 RPM
SPINDLE MOTOR, 40 hp
SPINDLE TAPER, BT 50
TOOL POSITIONS (ATC), 150
RAPID TRAVERSE RATE, 1,417 in/min.
CUTTING FEEDRATE, 1,417 in/min.
Dimensions, 420” x 210”

Équipements
897 FOOT-POUNDS OF TORQUE
HIGH-PRESSURE THROUGH-SPINDLE COOLANT (1,000 PSI)

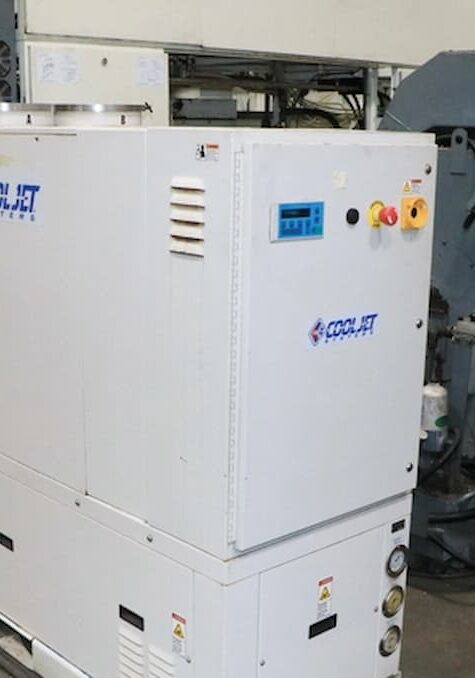

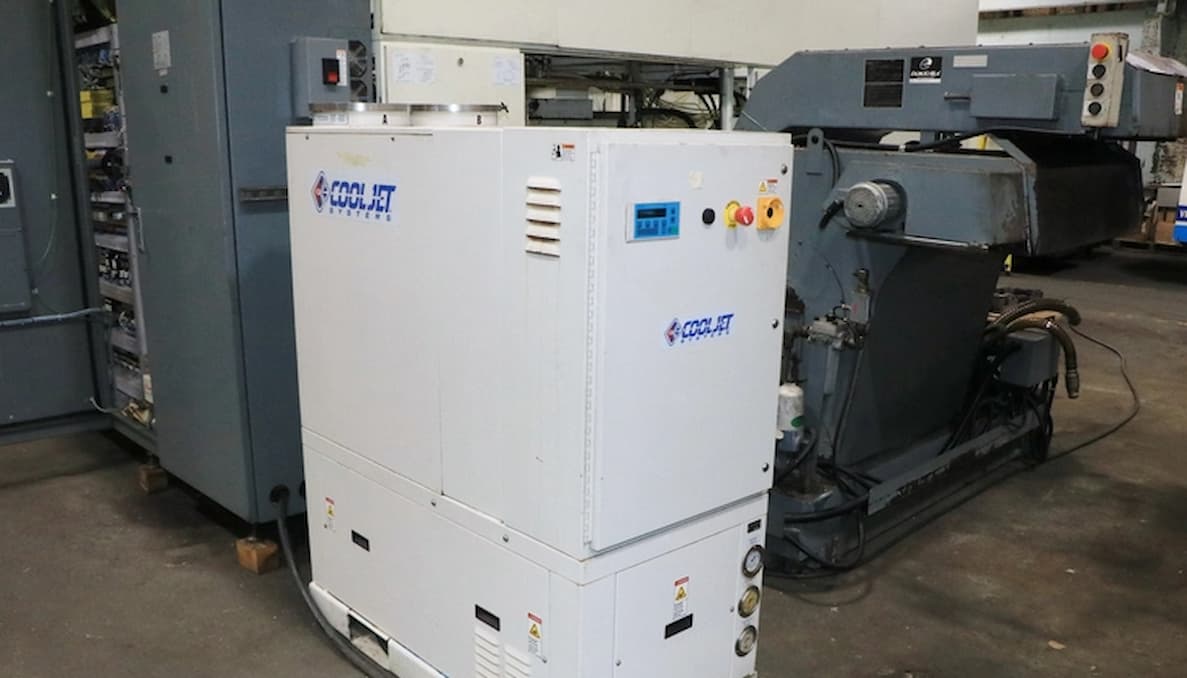

COOLJET HIGH-PRESSURE COOLANT SYSTEM
FULL 4TH AXIS PALLET CONTOURING
RENISHAW PROBING SYSTEM
150 TOOL POSITIONS
CHIP CONVEYOR
GEARBOX (4-STEP, GEAR DRIVEN)
BOX WAY
LINEAR SCALE FEEDBACK (ALL AXES)
TWIN BALL SCREWS & TWIN SERVO MOTORS
AI NANO HIGH PRECISION CONTOUR CONTROL (500 BLOCK LOOK AHEAD)
TOOL RETRACT & RECOVER
PROGRAM RESTART
APPROX (70) BT50 TOOL HOLDERS
(2) HEAVY DUTY FIXED CUSTOM ENTRY PLATFORMS WITH HANDRAILS
** TSUDAKOMA RBA-500R ROTARY TABLE AND DRIVE CARD AVAILABLE FOR SEPARATE SALE.
PURCHASE OF THIS ACCESSORY WILL TURN THIS INTO A 5-AXIS CAPABLE MACHINE

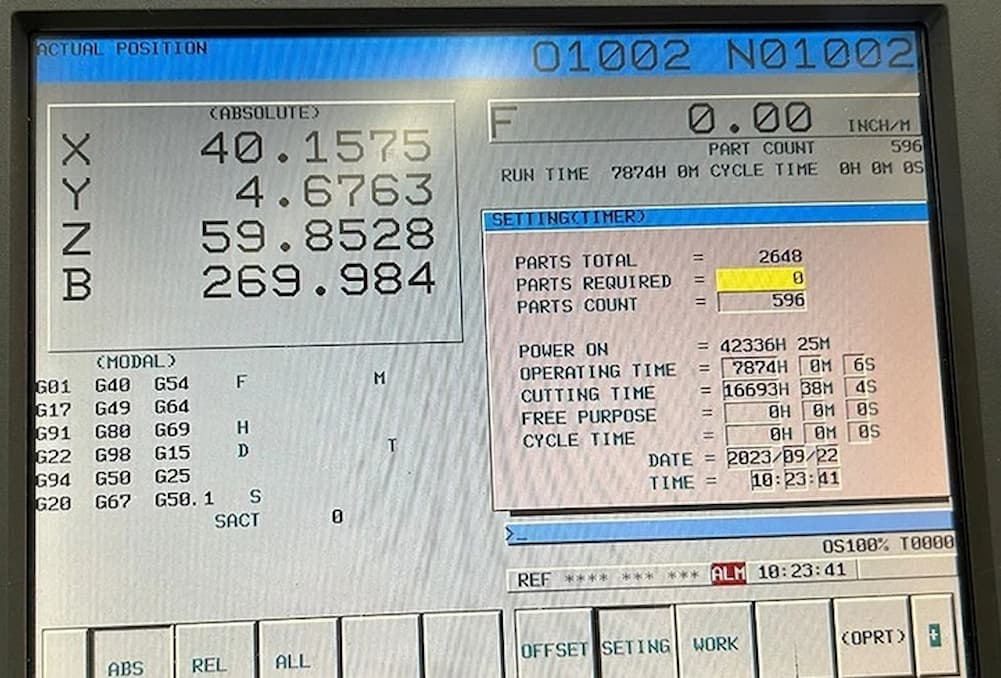

** AS OF SEPTEMBER 2023, CUTTING TIME - 16,693 HOURS (SEE PHOTO)
** MACHINE CUT PRIMARILY ALUMINUM & STAINLESS
** REPLACEMENT COST OF SYSTEM, AS EQUIPPED - $1,500,000
** AVAILABLE FOR IMMEDIATE PURCHASE & REMOVAL - NO LEAD TIME
** TRANSMISSION & SPINDLE MOTOR REPLACED IN MARCH 2019

---

Price request
