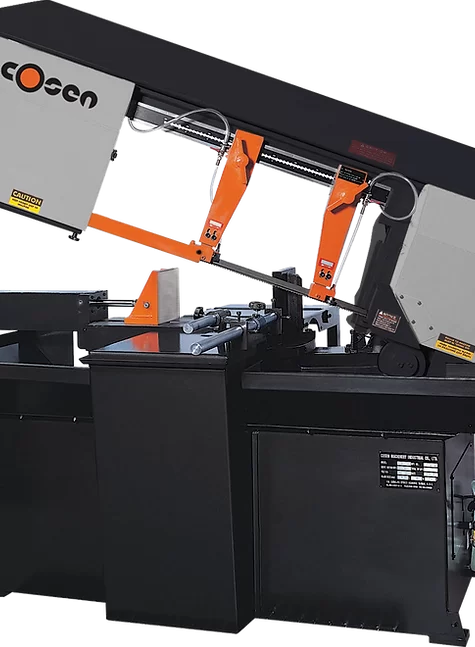

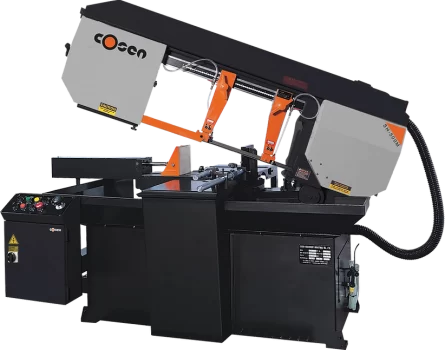

Cosen SH-500M – Horizontal Miter Band Saw
Scies
Video
Description
Cosen offers a complete range of semi-automatic band saws with a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw. With its rigid construction and superior features, the SH-500M from Cosen falls into this category. This robust band saw offers precision, operational efficiency, low cost per cut, and durability in a demanding production environment. The SH-500M is one of the most popular semi-automatic saws on the market.
Standard features
- The pivoting saw head allows miter cuts from 0 to 60 degrees
- Precise hydraulic cylinder and hinge support
- Hardened worm gear for added durability
- Hard stops at 0, 45, and 60 degrees for quick angle setup
- Variable pulley system for blade drive
- Adjustable cooling system
- Motor-driven synchronized metal blade brush
- Carbide blade guides and bearing provide additional blade support
- Rigid cast iron guide arms
- Cast iron hydraulic vise
- Adjustable feed control
- Adjustable material stop
- The saw head automatically raises after each cut
TECHNICAL SPECIFICATIONS
| Capacity Angle | 0 | +45 | +60 |
| Round Capacity | 13″ | 11.8″ | 8.6″ |
| Rectangular Capacity | 11″ x 17.3″ | 11″ x 9.4″ | 11″ x 8.6″ |
| Blade Speed | 60Hz: 75, 114, 164, 246 FPM |
| Blade Size (LxWxT) | 13′ 7″ x 1″ x .035″ |
| Blade Motor | 3 HP |
| Coolant Motor | 1/8 HP |
| Coolant Tank Capacity | 7.9 gal |
| Hydraulic Tank Capacity | 2.08 gal |
| Workbed Height | 32.6″ |
| Weight | 1,980 lbs |
| Floorspace (LxWxH) | 80.5″ x 41.6″ x 57.8″ |
