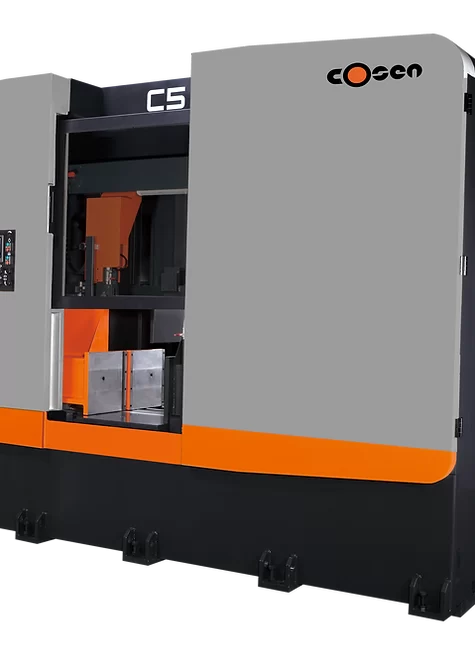

Cosen C-Tech C5 – Horizontal Dual Column Bandsaw
Scies
Video
Description
All bandsaws in the C-Tech series are equipped with Cosen's NC control system. The programming allows for an automatic first (square) cut, storage of up to 100 jobs, as well as all other features included in the SNC-100 control system. Most of the saw frames in the C-Tech series rest on linear guides (rails) and, depending on the model, use a ball screw or hydraulic system. These designs help give the frame a rigid base, ensuring the smoothest feed guidance system, the highest precision, and the lowest friction available today. With their robust and reliable closed frame designed for safety and their cutting-edge technology, Cosen's C-Tech series bandsaws are the perfect closed saws for mass production environments.
Standard features
- High-precision linear guideway design (ball screw)
- Inverter blade drive system allowing infinitely variable blade speeds
- 7″ HMI touchscreen
- Adjustable cooling system
- Synchronized, motor-driven metal blade brush
- Carbide blade guides and bearings for additional blade support
- Rigid cast iron guide arms
- Automatic hydraulic blade tensioning device
- Cast iron hydraulic vise
- Split vise jaw to reduce burrs
- Vibration dampener
- Ball screw-powered saw movement and speed for optimal cutting performance
- Computer-controlled multiple indexing up to 999″ max. length
- Indexation multiple contrôlée par ordinateur jusqu’à 999″ de longueur maximale
TECHNICAL SPECIFICATIONS
| Round Capacity | 18.1″ |
| Rectangular Capacity (HxW) | 18.1″ x 19.6″ |
| Blade Speed | 65 – 393 FPM |
| Blade Size (LxWxT) | 19′ 9.2″ x 2″ x .050″ / .063″ |
| Blade Motor | 10 HP |
| Coolant Motor | 1/2 HP |
| Coolant Tank Capacity | 37 gal |
| Hydraulic Tank Capacity | 21.13 gal |
| Workbed Height | 27.76″ |
| Weight | 8,377 lbs |
| Floorspace (LxWxH) | 78.75″ x 116″ x 92.7″ |
