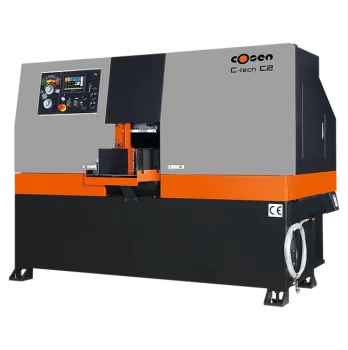

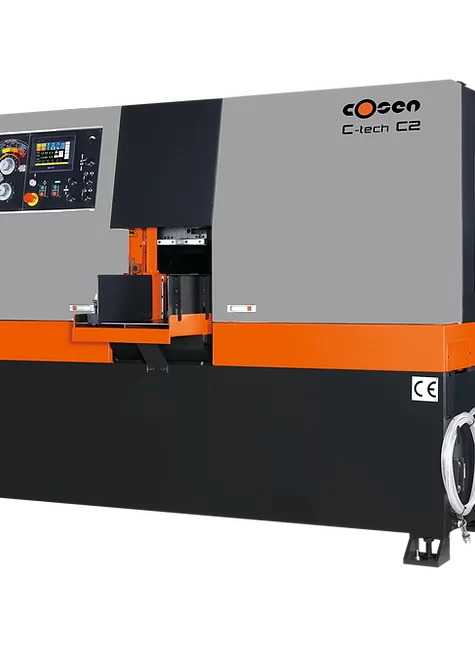

Cosen C-Tech C2 – Horizontal Double-Column Band Saw
Scies
Video
Description
All Cosen C-Tech series band saws are equipped with Cosen's NC control system. The programming allows for automatic first (square) cuts, storage of up to 100 jobs, as well as all other features included in the SNC-100 control system. The saw frame rests on linear guides (rails) and, depending on the model, uses either a ballscrew or hydraulic system. These designs help provide the frame with a rigid base, ensuring the smoothest feed guidance system, highest precision, and lowest friction available today. With their robust and reliable enclosed frame designed for safety and their cutting-edge technology, Cosen's C-Tech series band saws are the perfect enclosed saws for mass production environments.
Standard features
- High-precision linear guide design (ballscrew)
- Inverter blade drive system allows infinitely variable blade speeds
- 7″ HMI touch screen
- Adjustable cooling system
- Motor-driven synchronized metal blade brush
- Carbide blade guides and bearings provide additional blade support
- Rigid cast iron guide arms
- Automatic hydraulic blade tensioning device
- Cast iron hydraulic vise
- Vibration damper
- Saw movement and speed powered by ballscrew for optimal cutting performance
- Computer-controlled multiple indexing up to 999″ maximum length
TECHNICAL SPECIFICATIONS
| Round Capacity | 10.2″ |
| Rectangular Capacity (HxW) | 10.2″ x 11.8″ |
| Blade Speed | 66 – 328 FPM |
| Blade Size (LxWxT) | 13′ 5.4″ x 1.25″ x 0.042″ |
| Blade Motor | 5 HP |
| Coolant Motor | 1/8 HP |
| Coolant Tank Capacity | 16 gal |
| Hydraulic Tank Capacity | 8 gal |
| Workbed Height | 31.1″ |
| Weight | 3,520 lbs |
| Floorspace (LxWxH) | 84.6″ x 70.1″ x 75.4″ |
