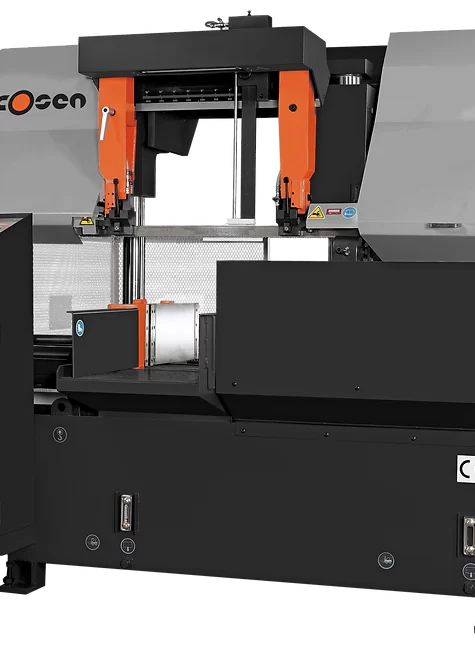

Cosen C-420NC – Horizontal Dual Column Bandsaw
Scies
Video
Description
The C-420NC from Cosen is a high-production machine that integrates a massive base, solid saw frame, extremely sturdy gearbox, 10 HP drive motor, and user-friendly programmable controls for easy operation. The Smart NC-100 (SNC-100) technology offers most of the advantages of CNC saws at a fraction of the cost. The SNC-100 controls are programmable for up to 100 different tasks, including quantity and cutting length. The controls automatically compensate for kerf loss after data entry and require no manual calculation of indexing times. Robust, reliable, and technologically advanced, the C-420NC production machine from Cosen is a perfect saw for mass production environments.
Standard features
- Hydraulic dual-column design
- Gearbox designed to withstand high side pressure (no thermal distortion)
- Inverter blade drive system allowing infinitely variable blade speeds
- 5.7″ HMI touchscreen
- Adjustable cooling system
- Synchronized, motor-driven metal blade brush
- Carbide blade guides and bearings for additional blade support
- Rigid cast iron guide arms
- Automatic hydraulic blade tensioning device
- Cast iron hydraulic vise
- Split vise jaw to reduce burrs
- Save-A-Blade functionality
- Precision double valve feed rate and pressure system for optimal cutting performance
- Computer-controlled multiple indexing up to 999″ max. length
TECHNICAL SPECIFICATIONS
| Round Capacity | 16.5″ |
| Rectangular Capacity (HxW) | 16.5″ x 16.5″ |
| Blade Speed | 50 – 328 FPM |
| Blade Size (LxWxT) | 15′ 7.8″ x 1.5″ x .050″ |
| Blade Motor | 10 HP |
| Coolant Motor | 1/4 HP |
| Coolant Tank Capacity | 22.5 gal |
| Hydraulic Tank Capacity | 10.6 gal |
| Workbed Height | 29.1″ |
| Weight | 4,901 lbs |
| Floorspace (LxWxH) | 101.5″ x 97.8″ x 71″ |
